Oxy Heli oxy3 - Page 27

Ref 10 mm
(Linkage Ball Position)
Cut here
OXY0085
Micro Servo Arm
Ref 10 mm
(Linkage Ball Position)
Cut here
2 x OXY0085
Micro Servo Arm
Ref 7.50 mm
Linkage Ball Position
Cut here
OXY0085
Micro Servo Arm
OXY0092
4X2X4.2 M2
Linkage Ball
Hex Nut M2
OXY0085
Servo Arm
Reuse STD
Servo Screw
OXY0092
4X2X4.2 M2
Linkage Ball
OXY0085
Servo Arm
Hex Nut M2
Linkage Ball Direction: Left Right servo
Linkage Ball, must installed as shown.
Hex Nut M2
OXY0085
Servo Arm
OXY0092
4X2X4.2 M2
Linkage Ball
Reuse STD
Servo Screw
90
Negative Pitch
90
90
90
Nose Left
Reuse STD
Servo Screw
- You should now do some initial setup of your FBL unit and servos.
- We recommend you select a new model in your transmitter, and reset your FBL unit and start with a clean setup in it as well.
- After binding your transmitter to the receiver system used with the FBL unit, work your way through the FBL setup instructions to the point
you plug in your servos.
- Now set your collective stick in the middle position, and position the servo arms as close to the correct positions you can on each servo
see the following pages for arm orientations on the various servos.
- Next confirm the servos work in the correct direction, then return the collective stick to the center position.
- Now use your FBL unit to trim the servos so the arms are exactly horizontal (see pictures below).
- This procedure varies between units. Carefully label the position of the servos, then proceed with the installation of the servos as shown.
Page 26

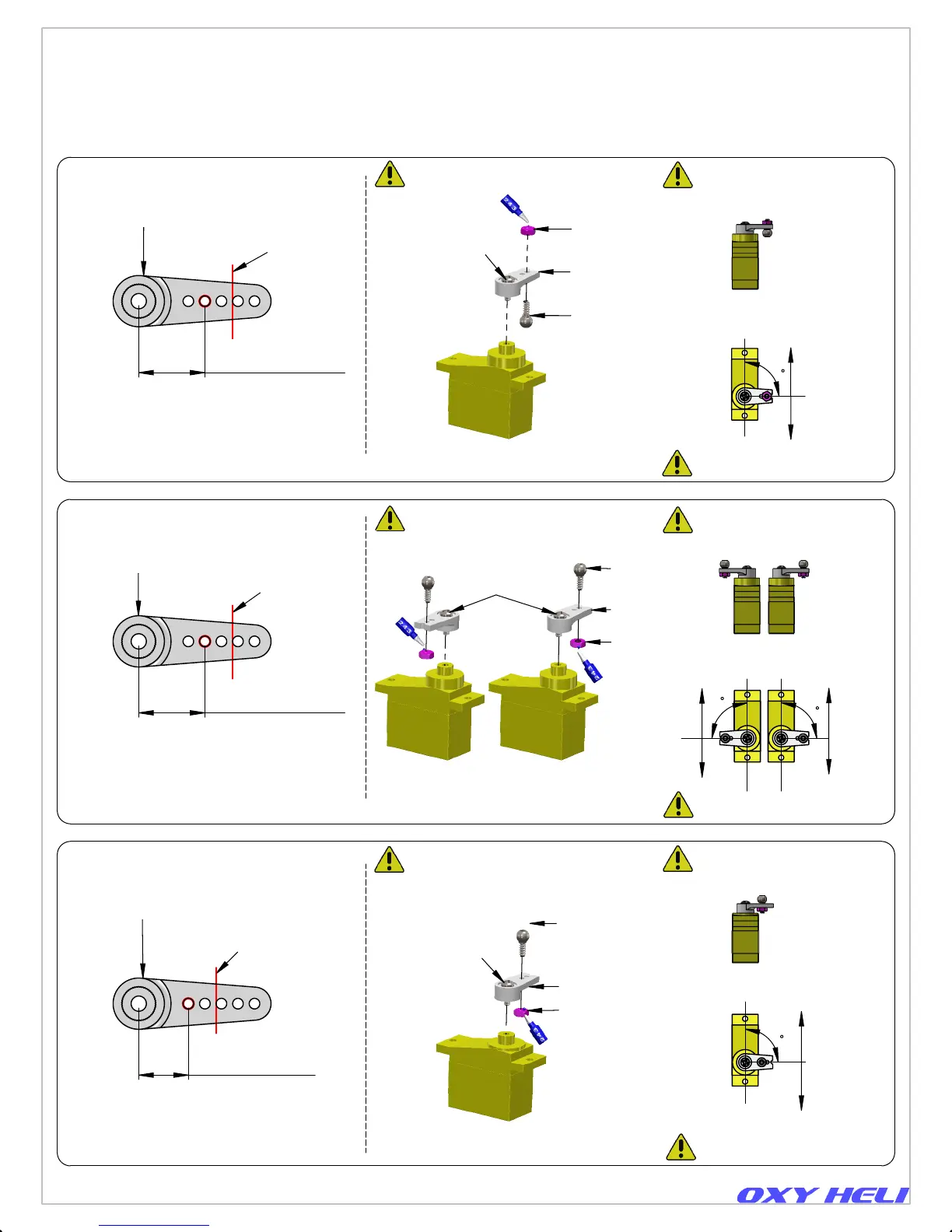

Front Cyclic Servo. (Box 02 / Bag 10)
Left, Right Servos. (Box 02 / Bag 10)
Tail Servo. (Box 02 / Bag 10)
Linkage Ball Direction: Front cyclic servo
Linkage Ball, must installed as shown.
Linkage Ball Direction: Tail servo
Linkage Ball, must installed as shown.
Arm position with zero deg pitch
and centered cyclic stick.
Arm position with zero deg pitch
and centered cyclic stick.
Arm position with zero deg pitch
and centered rudder stick.
Left Servo Right Servo
L R
Positive Pitch
Negative
Pitch
Positive
Pitch
Positive
Pitch
Negative
Pitch
Nose Right
For easy set up check
servo arm move and set need.
For easy set up check
servo arm move and set need.
For easy set up check
servo arm move and set need.
Chapter 16, Servo and FBL System Start Up
