A
OXY0076

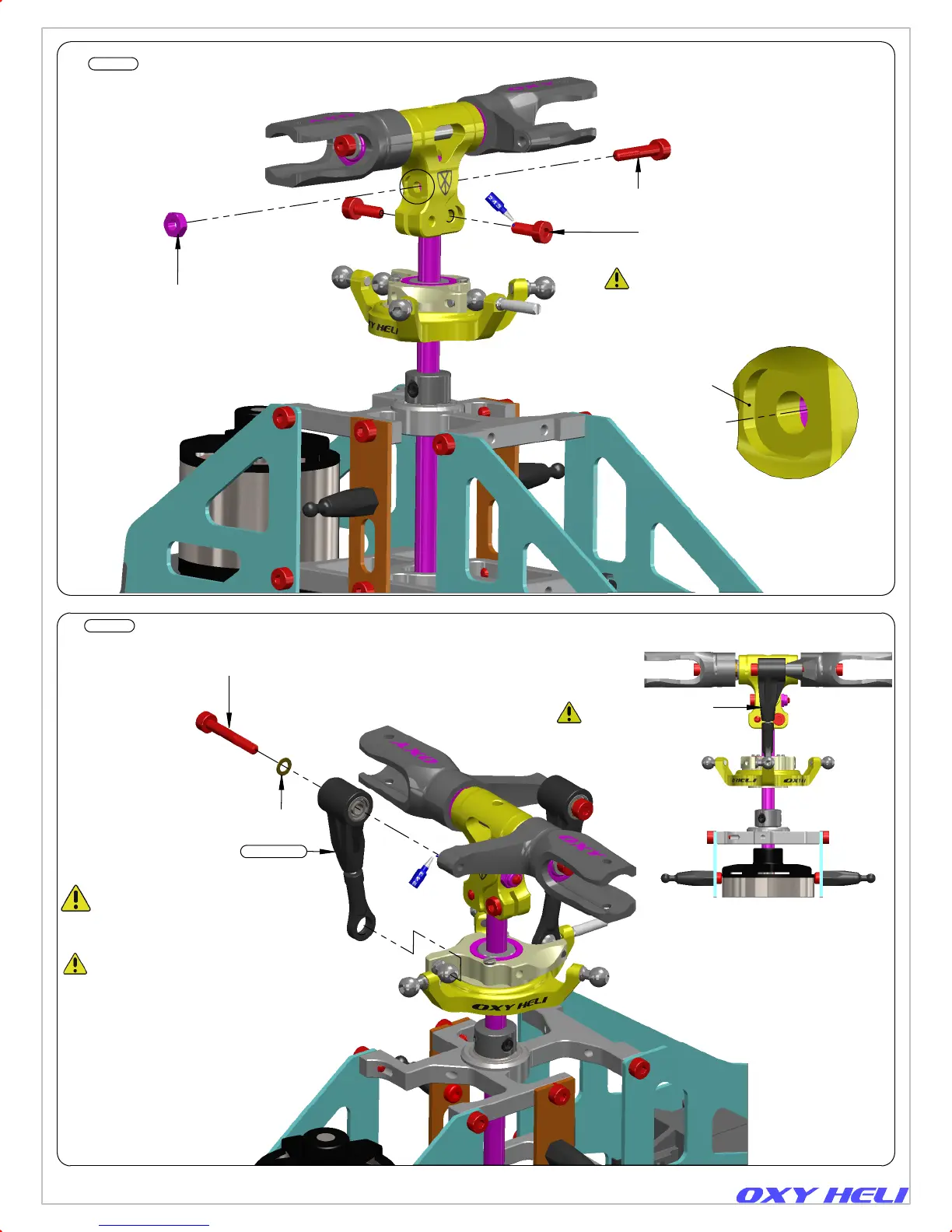

M2X10 Shoulder
Hex Cap Screw
2 x TCEM2X6
M2x6 Hex cap screw
SLNM2
Self Lock Nut M2
Head Assembly.
Note : Lock this 2 screw with
similar toque, act with step by
step locking system, switch
continuously form the 2 screw
side to get similar torque.
Step 3
OXY0077
M2X14 Shoulder
Hex Cap Screw
OXY0013
2x3.5x0 2 Shim Washer
DFC Arm
DETAIL A
Special lock nut socket
Note: pay attension
DFC Arm's position
as shown.
Logo OXY in this side
Page 25
Step 4
Important Note:
This part, for tuning reason
come factory pre assembled
with loctite. Ready
to use
Once finish the assembly, assure DFC
Arms can rotate without friction. If DFC
Arms are assembled correctly, rotation
should be smooth and without friction.
In case of any friction, recheck each
components and re assembly per needs.
Chapter 15, Head Assembly
