EIST Shutdown on the Driver Display

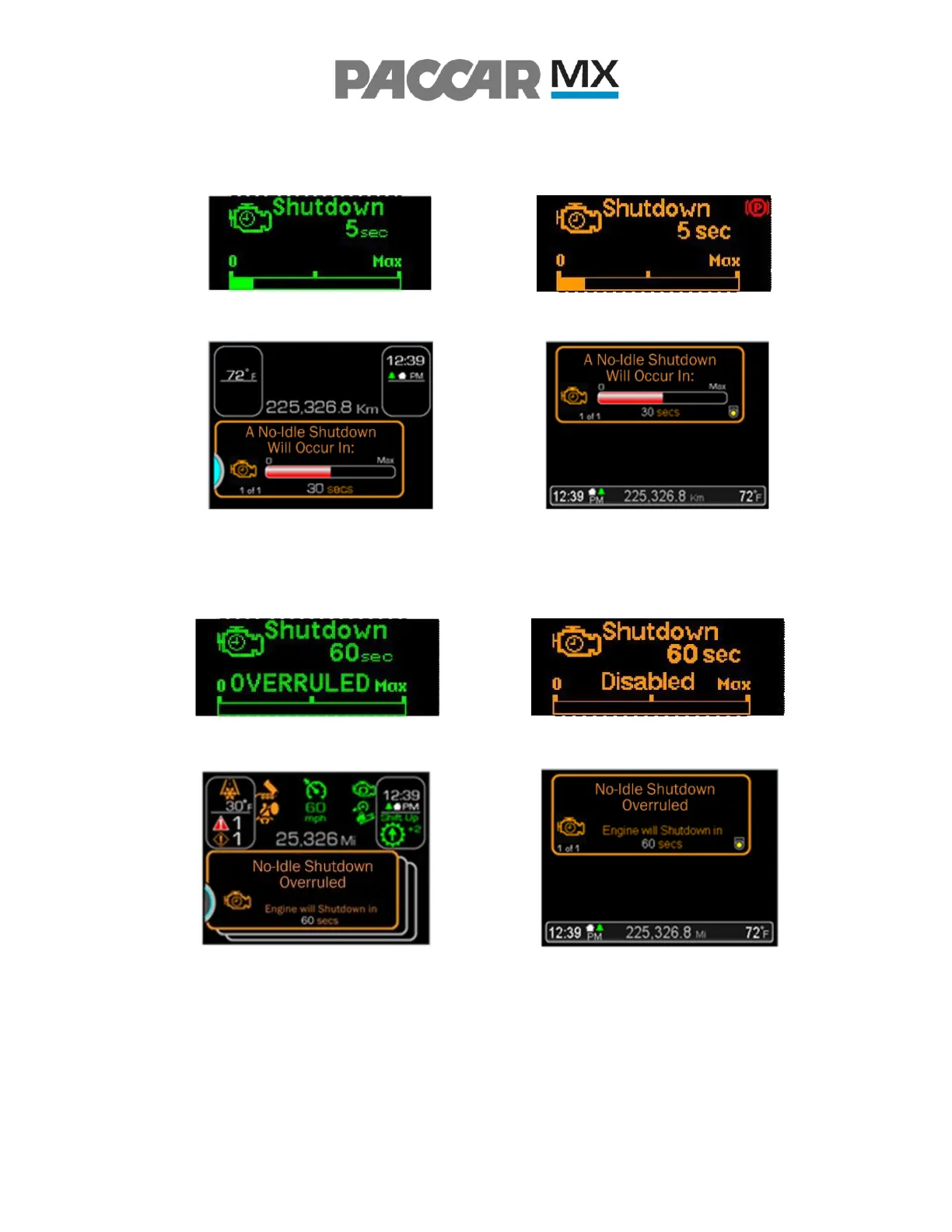

Figure 6.2 and Figure 6.3 show examples of indication screens after the engine is
about to be shutdown by the EIST.
Figure 6.2 – Small Display: Left:Kenworth, Right: Peterbilt
Figure 6.3 – Large Display: Left:Kenworth, Right: Peterbilt
Figure 6.4 and Figure 6.5 show examples of indication screens when the EIST is
overruled.
Figure 6.4 – Small Display: Left:Kenworth, Right: Peterbilt
Figure 6.5 – Large Display: Left:Kenworth, Right: Peterbilt
