PACCAR Engine Brake on the Driver Display
Figure 11.1 and Figure 11.2 show examples of screens on the driver display when
the PACCAR Engine Brake ON/OFF switch is in the ON position.

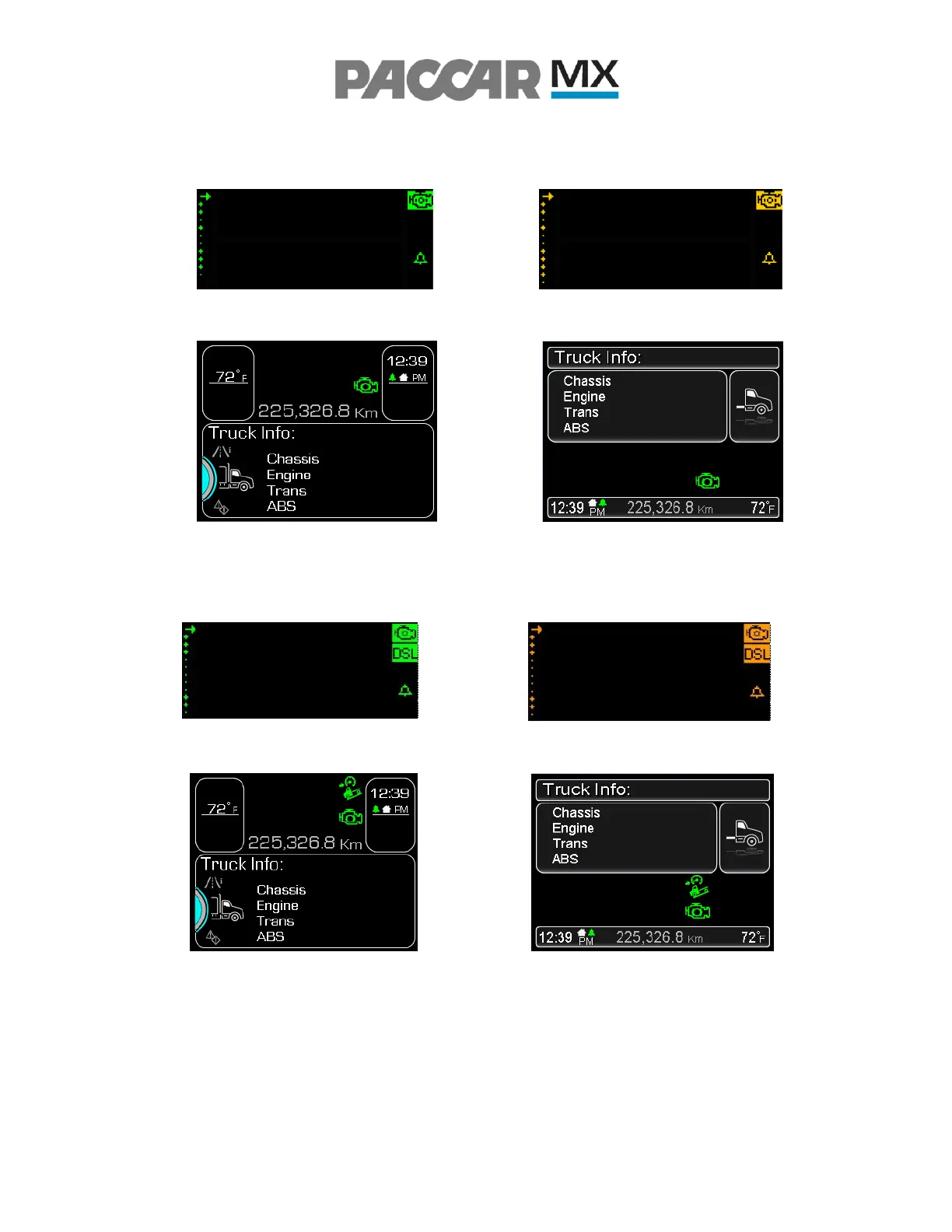

Figure 11.1 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 11.2 – Large Display; Left: Kenworth, Right: Peterbilt
Figure 11.3 and Figure 11.4 show examples of screens on the Driver Display when
the PACCAR Engine Brake is activated by Downhill Speed Limiter.
Figure 11.3 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 11.4 – Large Display; Left: Kenworth, Right: Peterbilt

Paccar MX-13 Specifications

General

Engine Type	Diesel
Displacement	12.9 liters
Configuration	Inline 6-cylinder
Horsepower Range	405-510 hp
Torque Range	1450-1850 lb-ft
Bore	5.12 inches
Fuel System	Common Rail
Emissions	GHG17 compliant
Oil Capacity	42 quarts
Coolant Capacity	56 liters
Aftertreatment	Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR)
Stroke	6.42 inches (163 mm)
