Paccar MX-13 Programming Guide

PEC017
5/3/2018 Page 35 of 105
Additional Information
Engine Protection System on the Driver Display

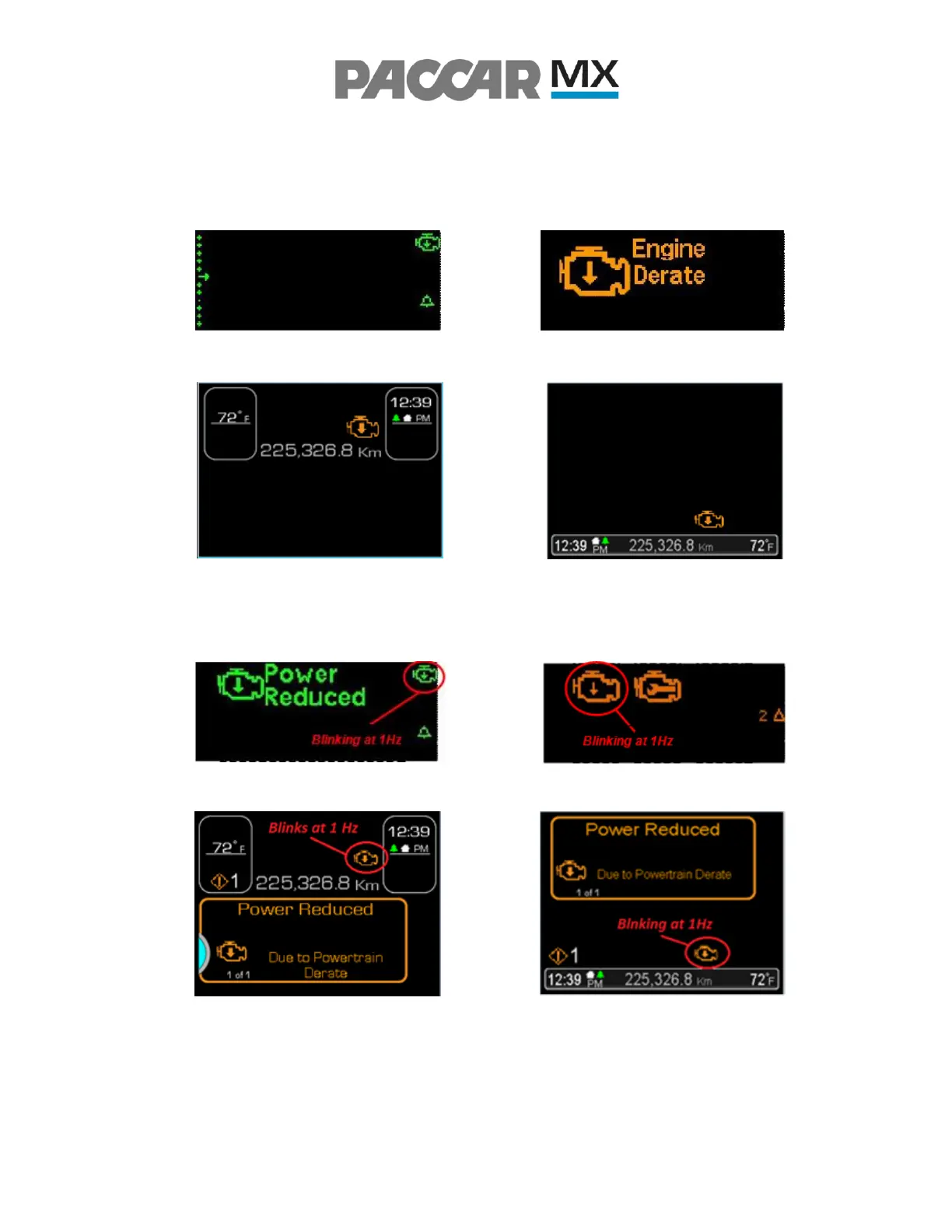

Figure 10.1 and Figure 10.2 show examples of Engine Protection System warning
screens on the Driver Display.
Figure 10.1 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 10.2 – Large Display; Left: Kenworth, Right: Peterbilt
Figure 10.3 and Figure 10.4 show examples of Engine Protection System derate
screens on the Driver Display.
Figure 10.3 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 10.4 – Large Display; Left: Kenworth, Right: Peterbilt

Paccar MX-13 Specifications

General

Engine Type	Diesel
Displacement	12.9 liters
Configuration	Inline 6-cylinder
Horsepower Range	405-510 hp
Torque Range	1450-1850 lb-ft
Bore	5.12 inches
Fuel System	Common Rail
Emissions	GHG17 compliant
Oil Capacity	42 quarts
Coolant Capacity	56 liters
Aftertreatment	Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR)
Stroke	6.42 inches (163 mm)
