Additional Information
Progressive Shift Threshold Graphs
The black line in Graph 15.1 illustrates the Progressive Shift limit if applicable.

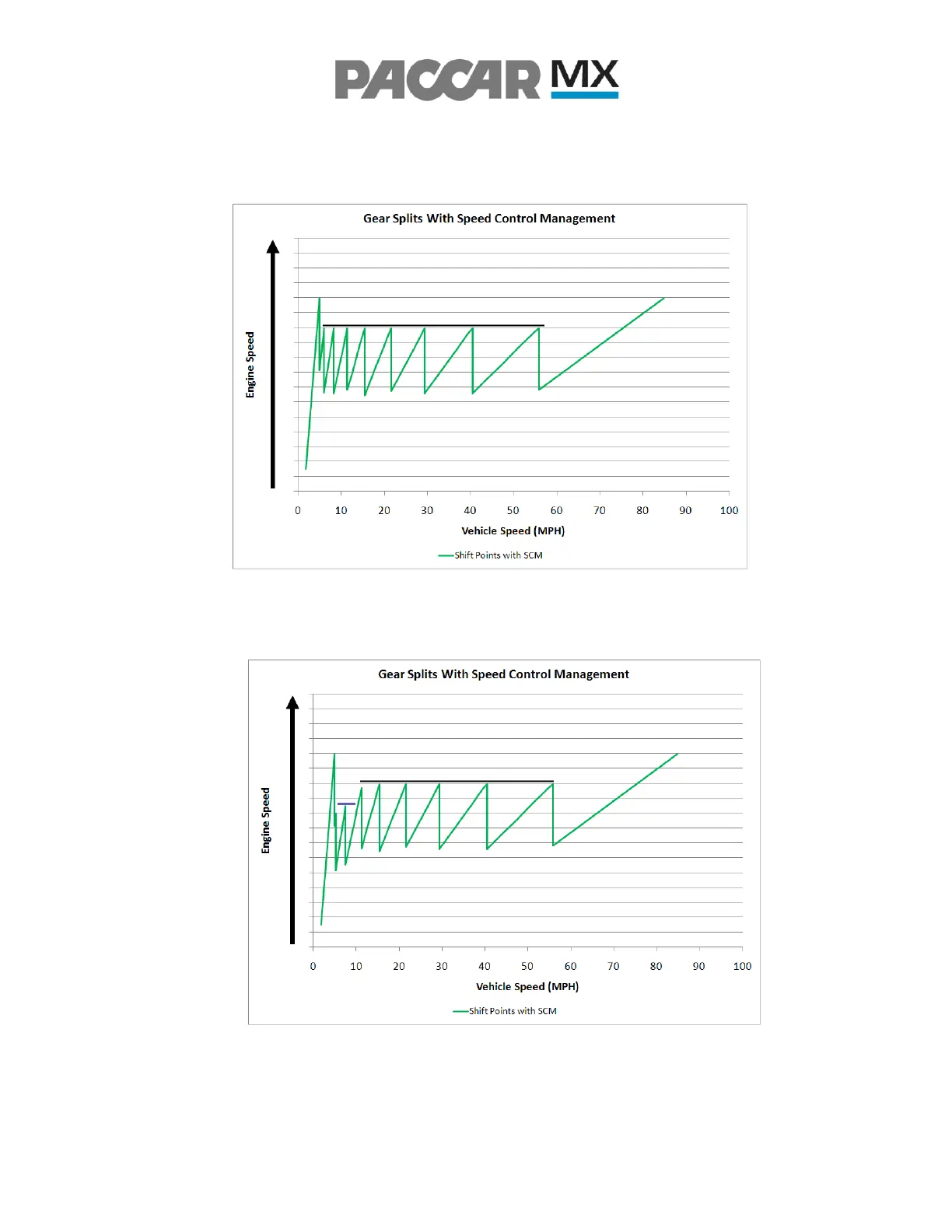

Graph 15.1 - One Engine Speed Control Limit
The blue line in Graph 15.2 illustrates the 1st Progressive Shift limit if applicable. The
black line illustrates the 2nd Progressive Shift limit if applicable.

Graph 15.2 – Two Engine Speed Control Limits

Paccar MX-13 Specifications

General

Engine Type	Diesel
Displacement	12.9 liters
Configuration	Inline 6-cylinder
Horsepower Range	405-510 hp
Torque Range	1450-1850 lb-ft
Bore	5.12 inches
Fuel System	Common Rail
Emissions	GHG17 compliant
Oil Capacity	42 quarts
Coolant Capacity	56 liters
Aftertreatment	Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR)
Stroke	6.42 inches (163 mm)
