FUEL SYSTEM PART 8: MAINTENANCE AND SERVICE
– 206 – Y53-6032 (R05/10)

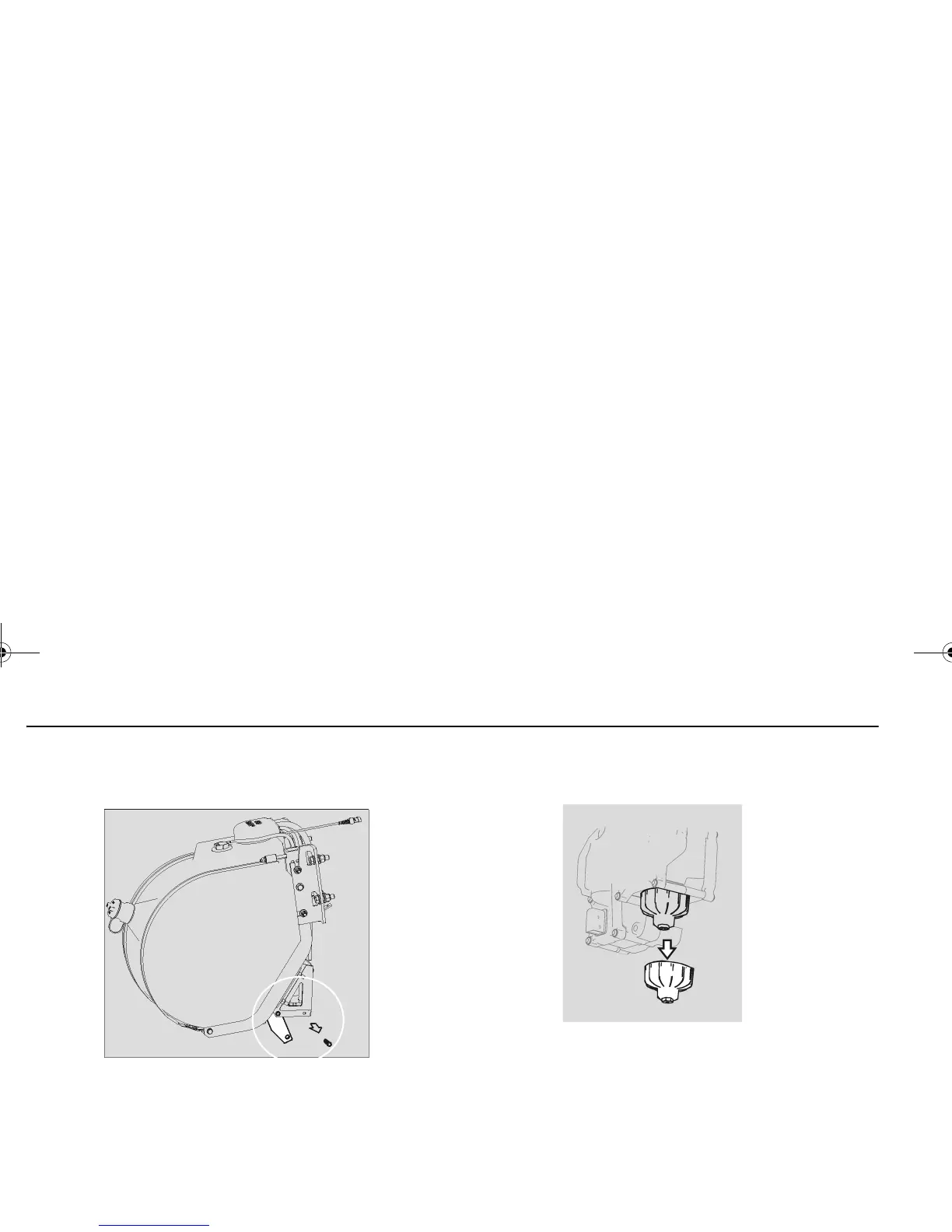

2. Remove the pump protective plate mounted on the
bottom of the DEF tank.
3. Using a 27 mm socket wrench (DIN3124), remove the
filter cap that is screwed to the DEF Supply pump.
4. Replace filter and reassemble the cap. Tighten the
cap to 11.4 - 18.5 lb-ft (15 - 25 Nm).
5. Replace the pump protective plate.
