DISPLAY STATUS

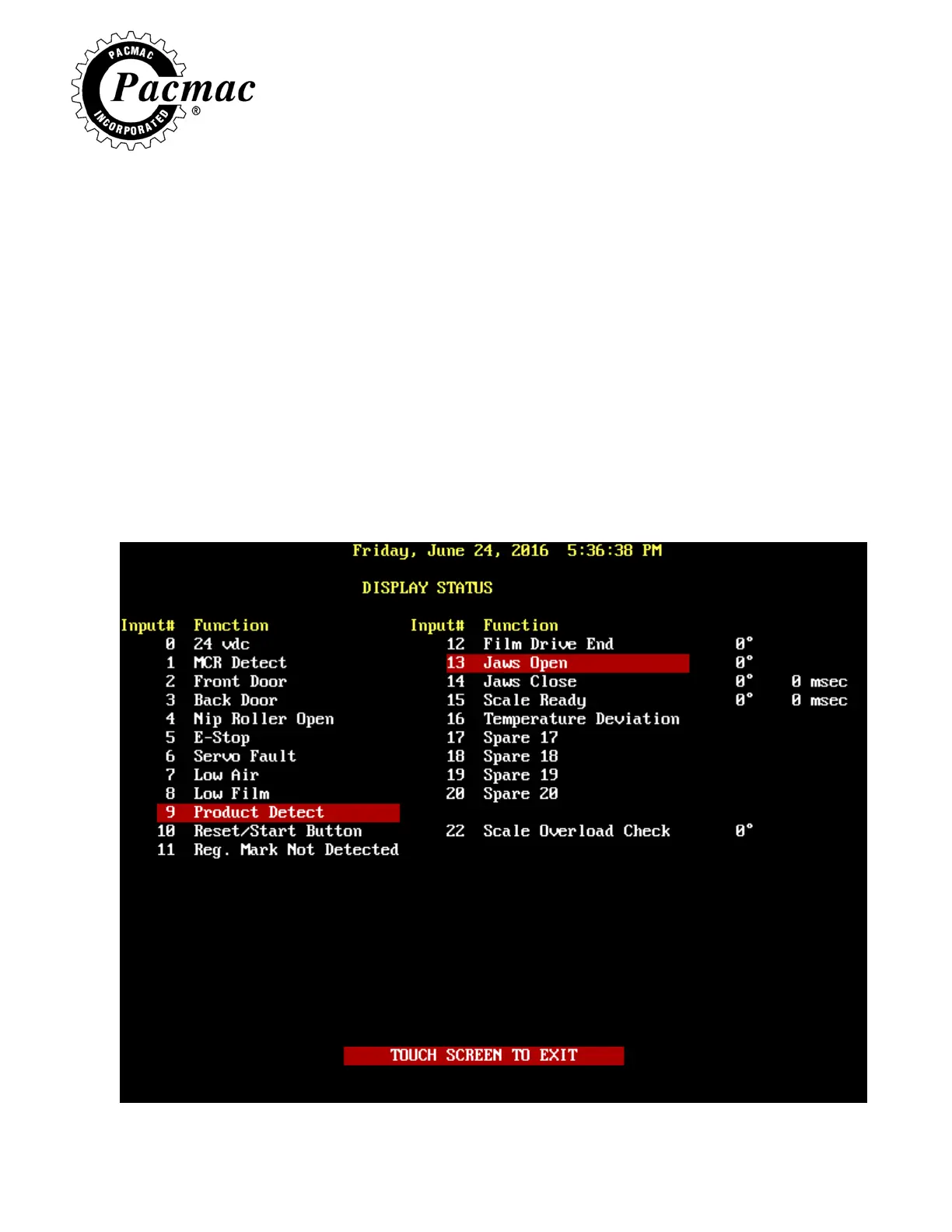

THE DISPLAY STATUS SCREEN IS USED TO MONITOR THE
MACHINE’S INPUTS. THE INPUT NUMBER AND FUNCTIONS ARE
DISPLAYED TO THE LEFT OF THE FUNCTION AND CORRESPONDS TO THE
NUMBER AND FUNCTION ON THE INPUT BOARD INSIDE THE ELECTRICAL
CABINET. WHEN AN INPUT IS ACTIVE, THE LINE WILL BE HIGHLIGHTED.
WHEN THE OPERATOR PRESSES THE RESET BUTTON, ALL HIGHLIGHTED
INPUTS IN THE LEFT-HAND COLUMN SHOULD GO OUT, IF ONE OR
MORE INPUTS DO NOT GO OUT, THEN THIS IS AN INDICATION THAT
THERE IS A PROBLEM WITH THAT FUNCTION. THE INPUTS IN THE UPPER
RIGHT-HAND COLUMN PROVIDE THE OPERATOR WITH DEGREE VALUES
THAT AID IN TIMING A PROGRAM. SEE PROGRAMMING ON PG 100
