HOW TO ADJUST SIDE BELTS
1. LOOSEN THE BOLTS CONNECTING THE MAYME LEVERS TO THE
SLIDE BLOCKS.
2. SLIDE PULL BELTS ALL THE WAY OUT AWAY FROM THE TUBE.
3. MANUALLY CLOSE THE PULL BELTS VIA THE HAND WHEEL ON THE
ACTUATOR.
4. SLIDE THE BELTS IN UNTIL THEY TOUCH THE TUBE.
5. COMPRESS THEM AGAINST THE TUBE AN ADDITIONAL 1/4” TO
1/2”.
6. TIGHTEN THE BOLTS AND CHECK BOTH SIDES FOR SAME
TENSIONING.

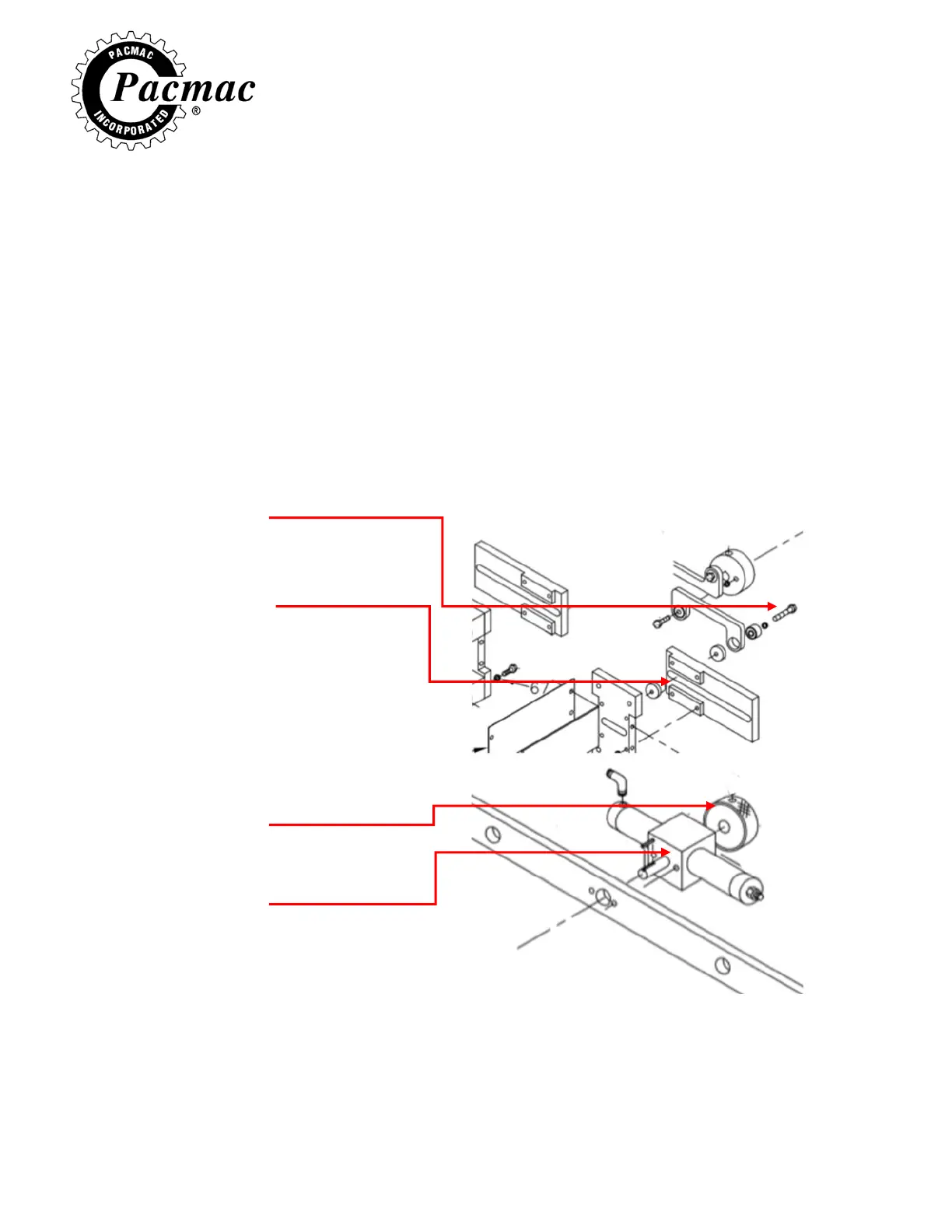

LOOSEN BOLT
PULL BELT SLIDE
ACTUATOR
HAND WHEEL
