MACHINE INSTALLATION

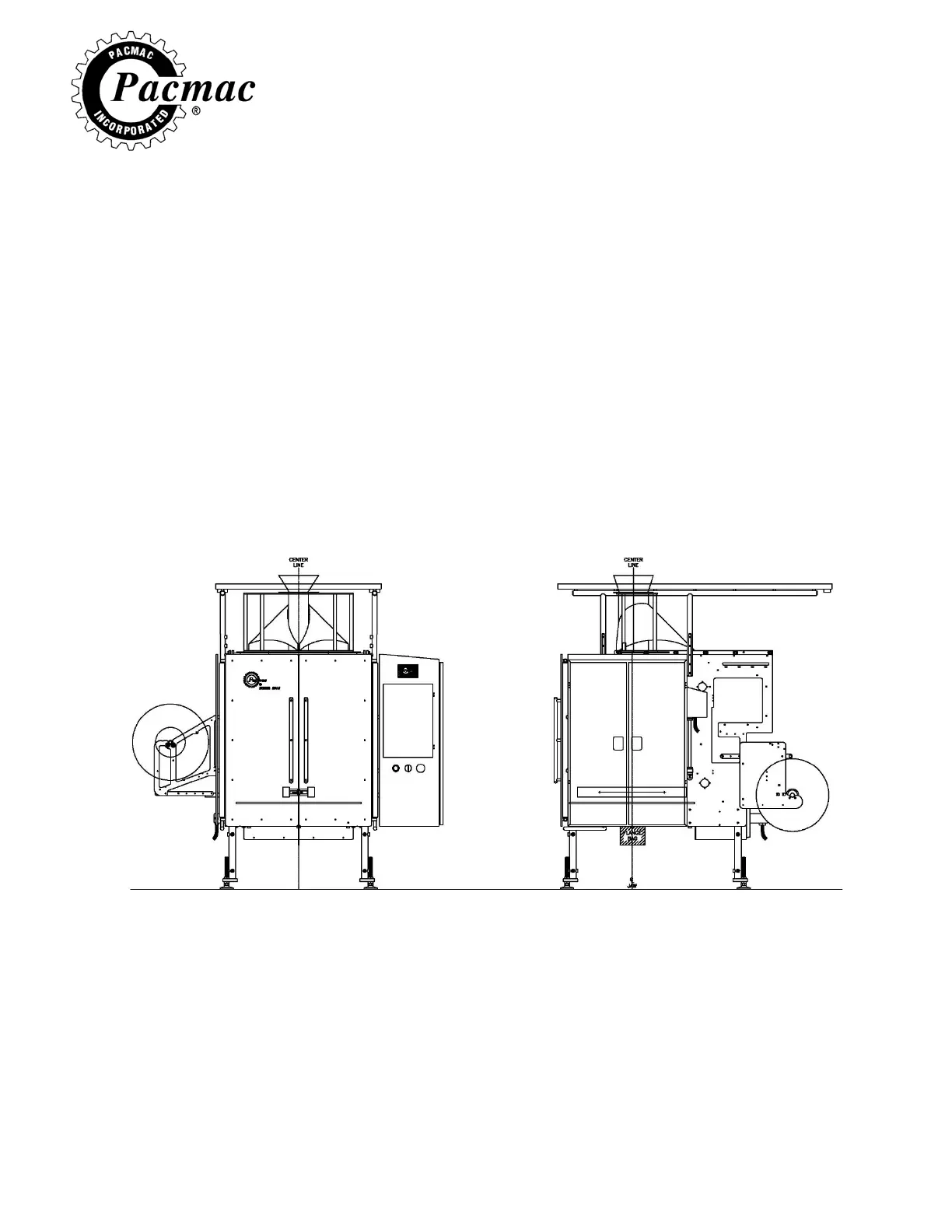

MACHINE PLACEMENT
 THE PACMAC MUST BE SET CENTERED UNDERNEITH THE FILLER (I.E.
SCALE/CONVEYOR) SO THAT THE PRODUCT DROPPING OUT
FALLS DOWN THE CENTER OF THE FORMING TUBE ASSEMBLY.
ALLOW ADEQUATE SPACE AROUND THE MACHINE SO THAT THE
DOORS CAN BE OPENED FULLY AND THE FILM AND ZIPPER CAN
BE LOADED.
VOLTAGE REQUIREMENTS
 208-240 VAC 50AMP
AIR REQUIREMENT
 100-120 PSI 50CFM
 MINIMUM PIPE SIZE 3/4” ISD (INSIDE DIAMETER) PIPE.
