Pacmac 2015 - DIAGNOSTIC TOOLS

2015OPERATIONSMANUAL

20

DIAG.

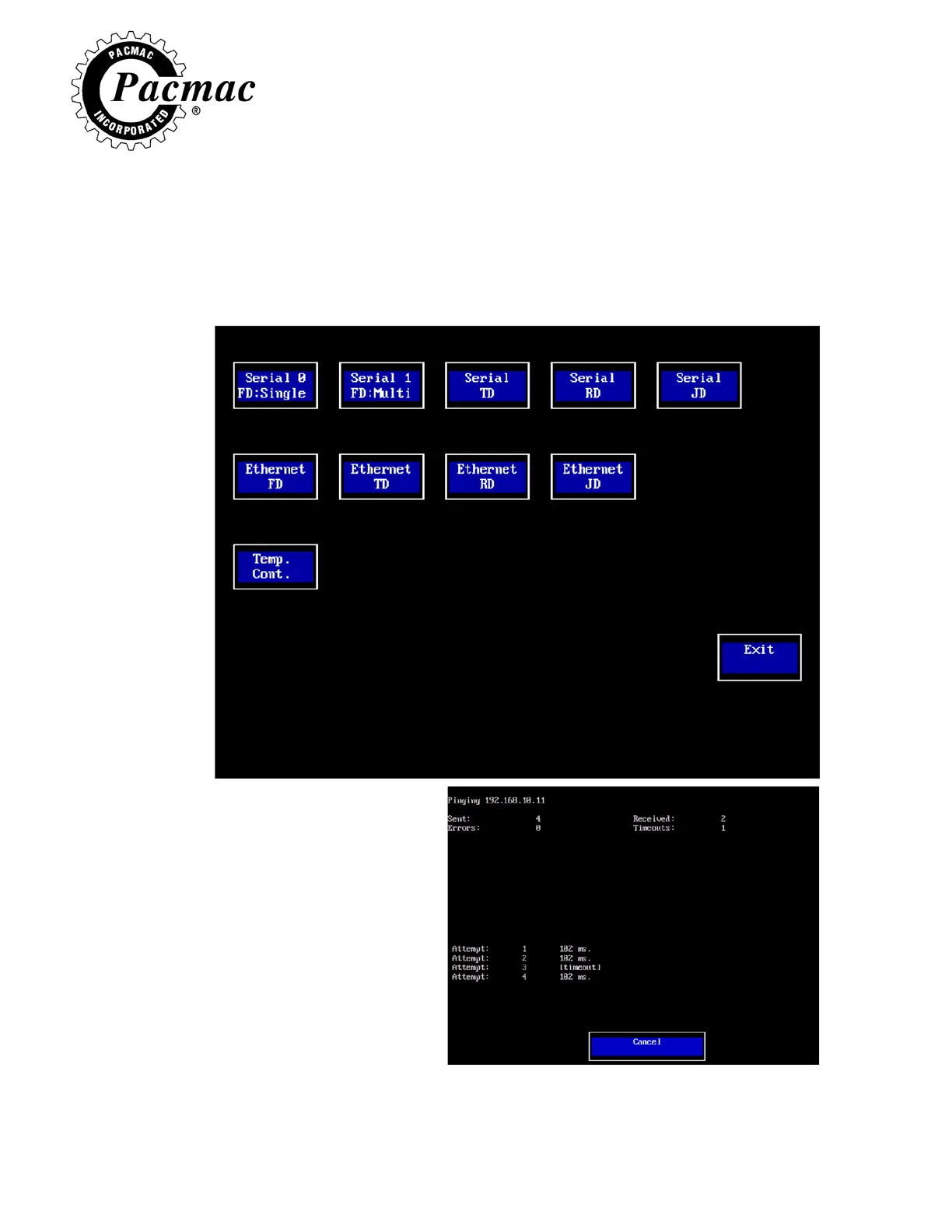

THIS SCREEN IS USED TO TEST SERIAL AND ETHERNET
COMMUNICATIONS BETWEEN VARIOUS DEVICES. TOUCH THE BUTTON
FOR THE APPROPRIATE CONNECTION AND DEVICE TO TEST ITS
CONNECTION.
YOU WILL THEN BE
BROUGHT TO THIS SCREEN
WHICH WILL GIVE YOU THE IP
ADDRESS THAT IS BEING
TESTED, THE SENT AND
RECEIVED COUNT, ERROR
COUNT, AND MILLISECOND
TIMING ON COMPLETED
PINGS.
