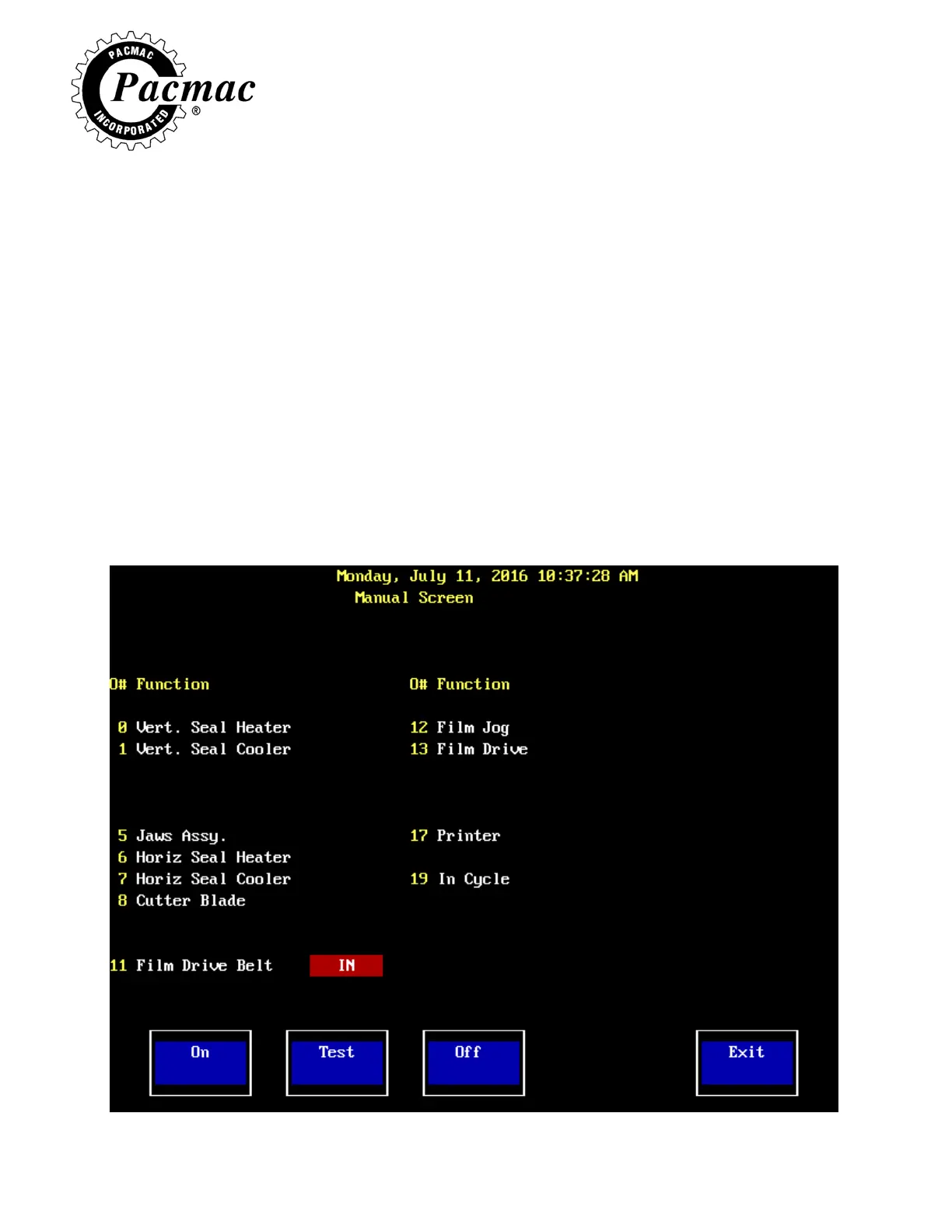

MANUAL SCREEN
THE MANUAL SCREEN IS USED TO OPERATE THE MACHINE
FUNCTIONS INDEPENDENTLY. THE SCREEN CAN ALSO BE USED FOR
TROUBLESHOOTING. THE MANUAL SCREEN ALSO DISPLAYS THE
OUTPUT NUMBER NEXT TO THE FUNCTION NAME.
THE OUTPUT NUMBERS AND FUNCTIONS ARE DISPLAYED AND
CORRESPOND WITH THE NUMBERS AND FUNCTIONS ON THE OUTPUT
BOARD.
THE MANUAL SCREEN CAN ONLY BE ACCESSED WHEN THE
MACHINE IS STOPPED. TO MANUALLY USE A FUNCTION, HIGHLIGHT
THE FUNCTION NAME AND TOUCH TEST. THIS FUNCTION WILL REMAIN
IN ITS SECONDARY POSITION UNTIL THE TEST BUTTON IS RELEASED. TO
TURN A FUNCTION ON AND OFF USE THE IN/OUT OR ON/OFF BUTTONS
NEXT TO THE TEST BUTTON.
