Pacmac 2015 - OUTPUT PARAMETERS

2015OPERATIONSMANUAL

16

OUTPUT PARAM

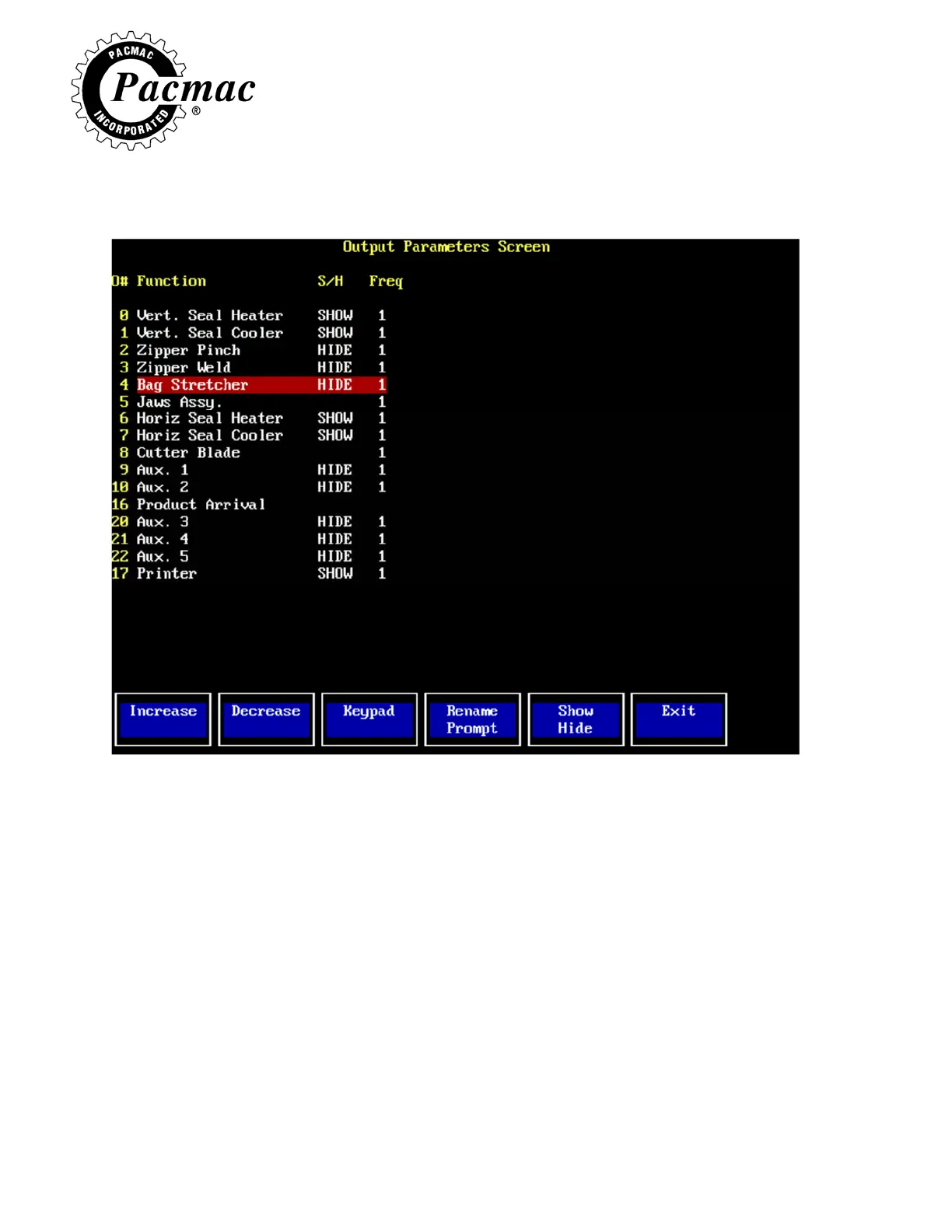

THIS SCREEN IS USED TO CONFIGURE THE DEGREE-TYPE OUTPUTS.
 OUTPUT # (O#)
o THIS NUMBER CORRESPONDS WITH THE OUTPUT NUMBER
ON THE OUTPUT BOARD.
 FUNCTION
o LIST THE FUNCTION OF THE OUTPUT TO BE CONFIGURED.
THIS CAN BE RENAMED.
 S/H
o USED TO SHOW OR HIDE THE OUTPUT FROM THE RUN AND
CHANGE SCREENS.
 FREQ.
o SETS THE FREQUENCY AT WHICH THE OUTPUT OPERATES.
o MINIMUM IS 1 = EVERY CYCLE
o MAXIMUM IS 10 = EVERY TENTH CYCLE.
