2015OPERATIONSMANUAL
17

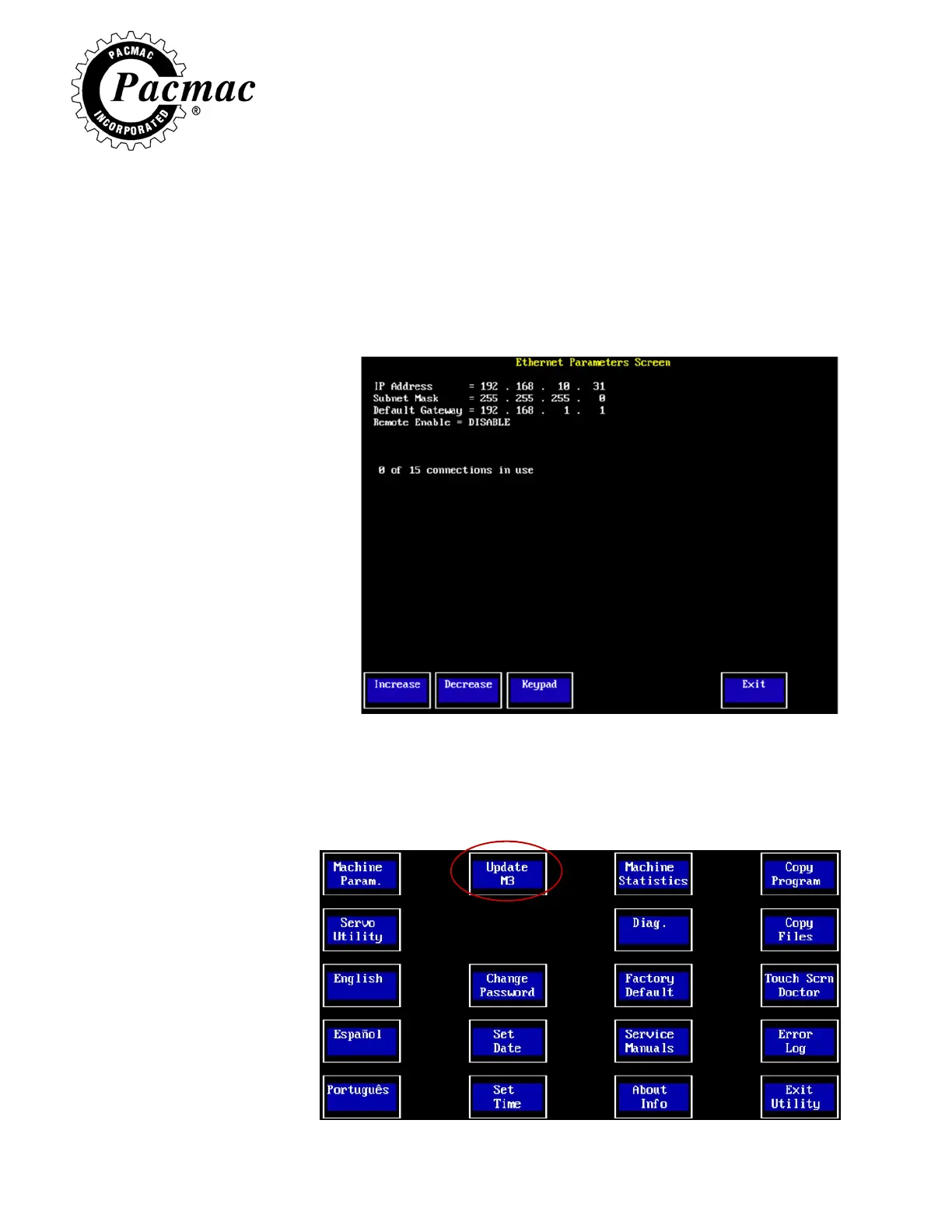

ETHERNET PARAM.
THIS SCREEN ALLOWS YOU TO VIEW THE MACHINE’S ETHERNET
SETTINGS. FROM THIS SCREEN YOU CAN CONFIGURE THE MACHINE IP
ADDRESS, SUBNET MASK, DEFAULT GATEWAY, CONFIGURE WHETHER
THE MACHINE WILL ALLOW REMOTE CONTROL, AND DISPLAYS HOW
MANY DEVICES ARE CONNECTED TO THE COMPUTERS MODBUS
SERVER.
UPDATE M3
THIS SCREEN IS USED TO UPDATE THE VERSION OF M3 SOFTWARE
TO THE LATEST REVISION. THIS REQUIRES A SOFTWARE USB OBTAINABLE
FROM PACMAC.
