Pacmac 2015 - SERVO STATUS DETAILS; FILM SERVO STATUS; JAWS SERVO STATUS

2015OPERATIONSMANUAL

25

SERVO STATUS

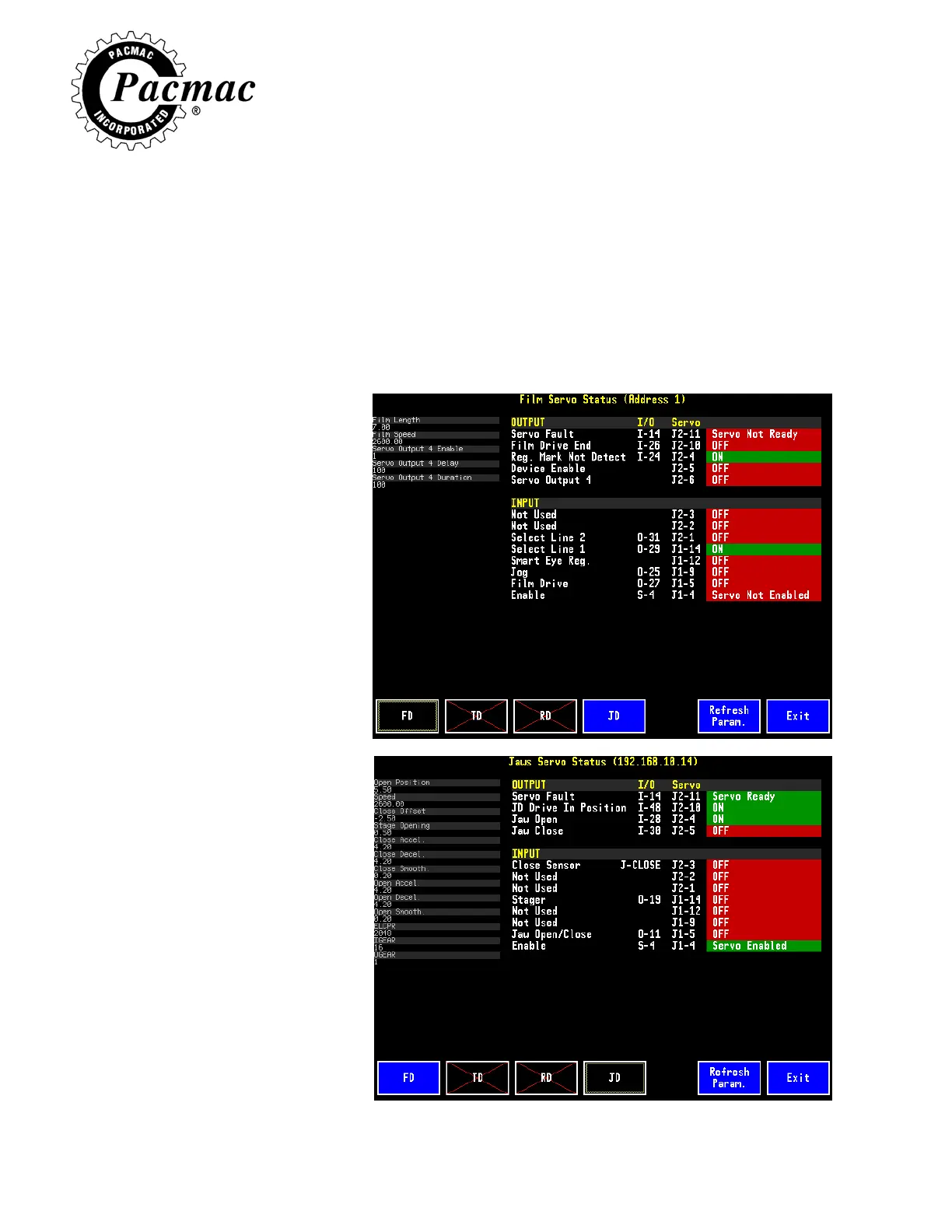

THIS SCREEN SHOWS THE I/O STATUS OF EACH SERVO
CONTROLLER, ALONG WITH SOME INTERNAL VALUES ADJUSTED FROM
THE COMPUTER. I.E FILM SPEED, LENGTH, JAW OPENING AND SO ON.
CYCLE BETWEEN EACH SERVO CONTROLLER VIA THE BUTTONS AT
THE BOTTOM OF THE SCREEN.
THE NUMBERS
NEXT TO THE
INPUT/OUTPUT NAME
CORRESPOND WITH
THE WIRE NUMBERS IN
THE ELECTRICAL
CABINET.
