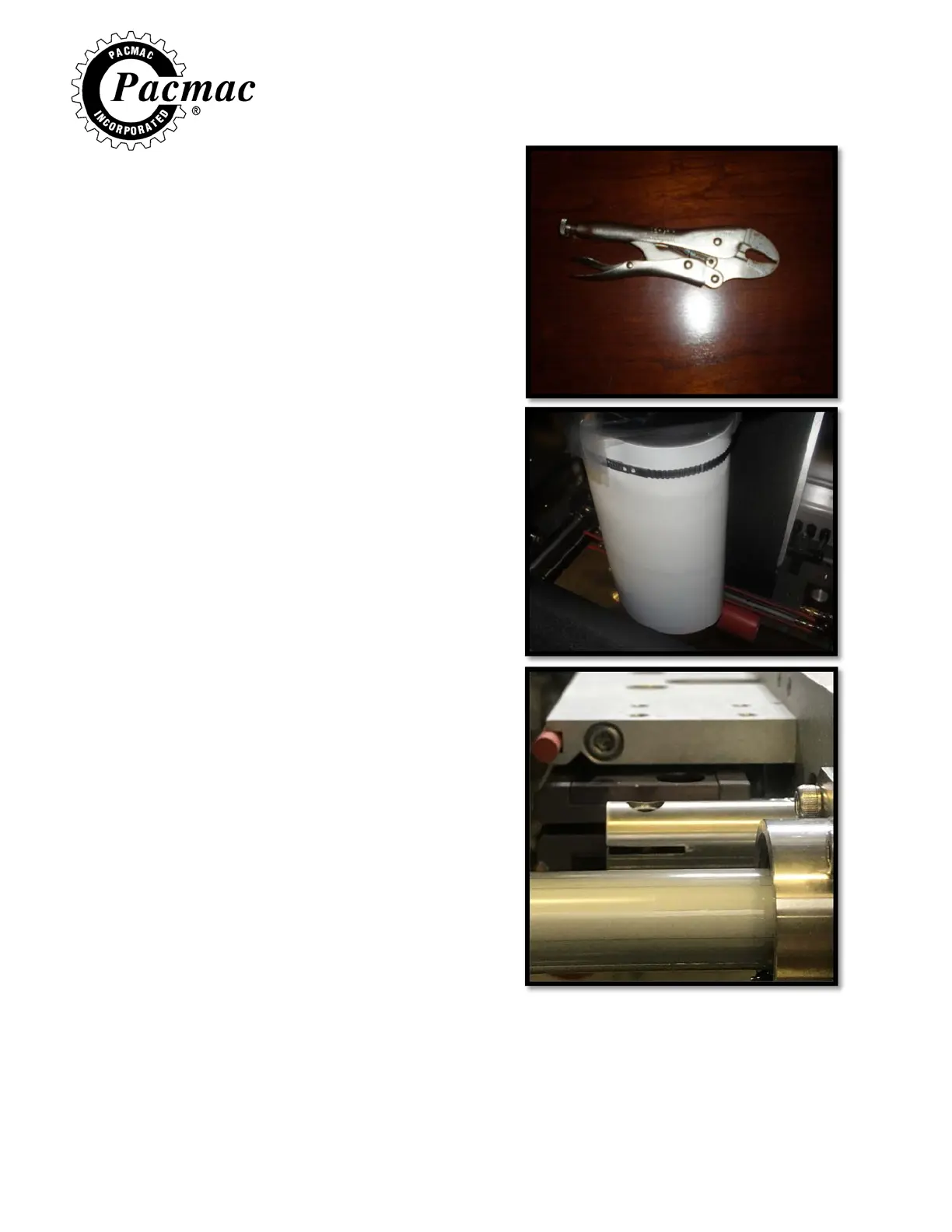

ATTACH SKIRT TO THE
TUBE
SLIDE THE SKIRT ON THE BOTTOM
OF THE TUBE.
SKIRT NEEDS TO BE SLIT UP THE
BACK TO ALLOW THE GUSSET TO
OPERATE IN AND OUT.
USE THE BAND PLIERS TO SECURE
THE SKIRT.
INSTALL THE CUTTER
BLADE
THE CUTTER BLADE SLIDES IN
BETWEEN THE 2 PROFILES ON THE
RIGHT HAND HEATER BAR.
SLIDE THE BLADE INTO THE SLOTS
IN THE STUDS.
SECURE TO CYLINDERS USING
THE KNIFE PINS ON FRONT AND
BACK.
