Pacmac 2015 - FILM HANDLING AND NIP ROLLER; LOAD THE FILM; CENTER THE FILM; OPEN THE NIP ROLLER

2015OPERATIONSMANUAL

58


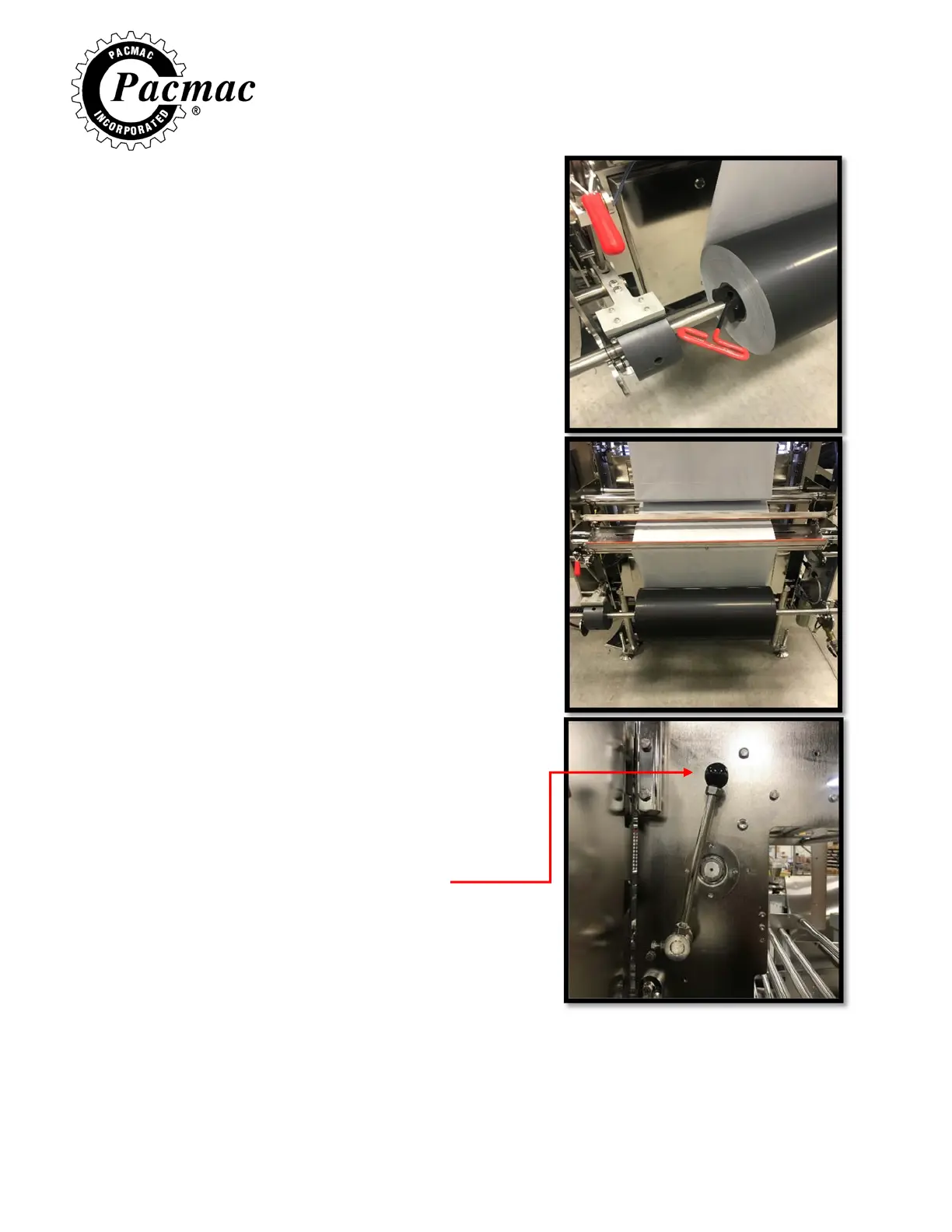

LOAD THE FILM
 SLIDE THE FILM ROLL SHAFT
THROUGH THE FILM CORE AND
TIGHTEN DOWN USING A ¼” ALLEN
WRENCH.
 ENSURE THE ROLL IS UNWINDING
TOWARDS THE FRONT OF THE
MACHINE.
 TIGHTEN BY TURNING ALLEN
WRENCH A ¼” TURN COUNTER
CLOCKWISE.
CENTER THE FILM
 THE FILM SHOULD RIDE ON THE
CENTER OF THE CARRIAGE.
 USING A ¼” T HANDLE, LOOSEN THE
CHUCK AND SLIDE LEFT OR RIGHT
TO CENTER.
OPEN THE NIP ROLLER
 THE NIP ROLLER LEVER IS LOCATED
BEHIND THE ELECTRICAL CABINET OF
YOUR MACHINE.
 UP IS (OPEN)
