Pacmac 2015 - NIP ROLLER, BRAKE, AND FILM TRACKING; CLOSE THE NIP ROLLER; SET THE BRAKE; TRACK THE FILM

2015OPERATIONSMANUAL

60


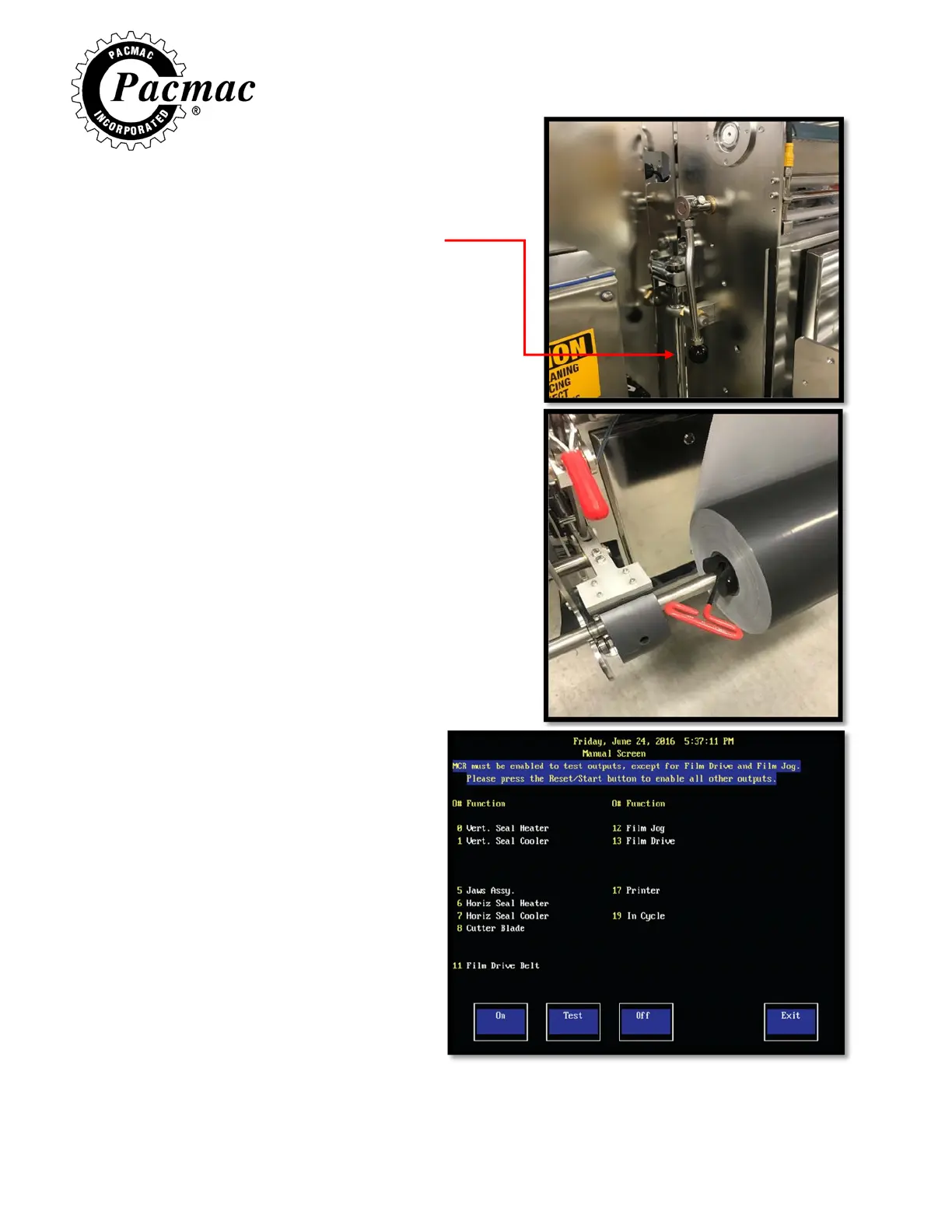

CLOSE THE NIP ROLLER
 DOWN IS (CLOSED)
SET THE BRAKE
 ROLL THE FILM ROLL BACKWARDS
TO RELEASE THE TENSION ON THE
BRAKE.
 SET THE BRAKE BY PUSHING THE
RED HANDLE DOWN.
o UP IS NOT SET
o DOWN IS SET
FOR MORE INFORMATION ON BRAKE
ADJUSTMENTS PLEASE SEE PG 100
TRACK THE FILM
 MANUALLY CLOSE THE
PULL BELTS.
 CLOSE ALL DOORS.
 FROM THE MANUAL
SCREEN, HIGHLIGHT FILM
JOG.
 TOUCH THE JOG BUTTON
AND WATCH THE FILM
UNTIL IT IS NO LONGER
TRACKING LEFT TO RIGHT
AND IS CENTERED.
 USE THE FILM POSITION SWITCH FOR FINE ADJUSTMENTS.
