Pakedge S3L-24P User Manual

S3L-24P Layer 3 Lite Managed Switch Hardware Installation Guide
8
Installing transceivers into the transceiver ports
This switch supports 4 SPF+ 10 Gbps ports. SFP+ technology allows a smooth transition from 1 to 10 Gigabit
Ethernet infrastructures in switches. This switch supports both fiber and copper cabling solutions.
For low-cost cabling, copper-based 10 Gbps Twinaxial cables can be used, and for longer cable reaches,
Short-Reach (SR) optical transceivers are excellent. Connectivity can be established from the SFP+ ports to
10 Gigabit Ethernet switches or hosts using a fiber/copper cable that has an SFP+ transceiver on one end
and an SFP+ transceiver on the other end.
The figure below illustrates how to properly insert SFP+ transceivers into the switch’s SFP+ ports.

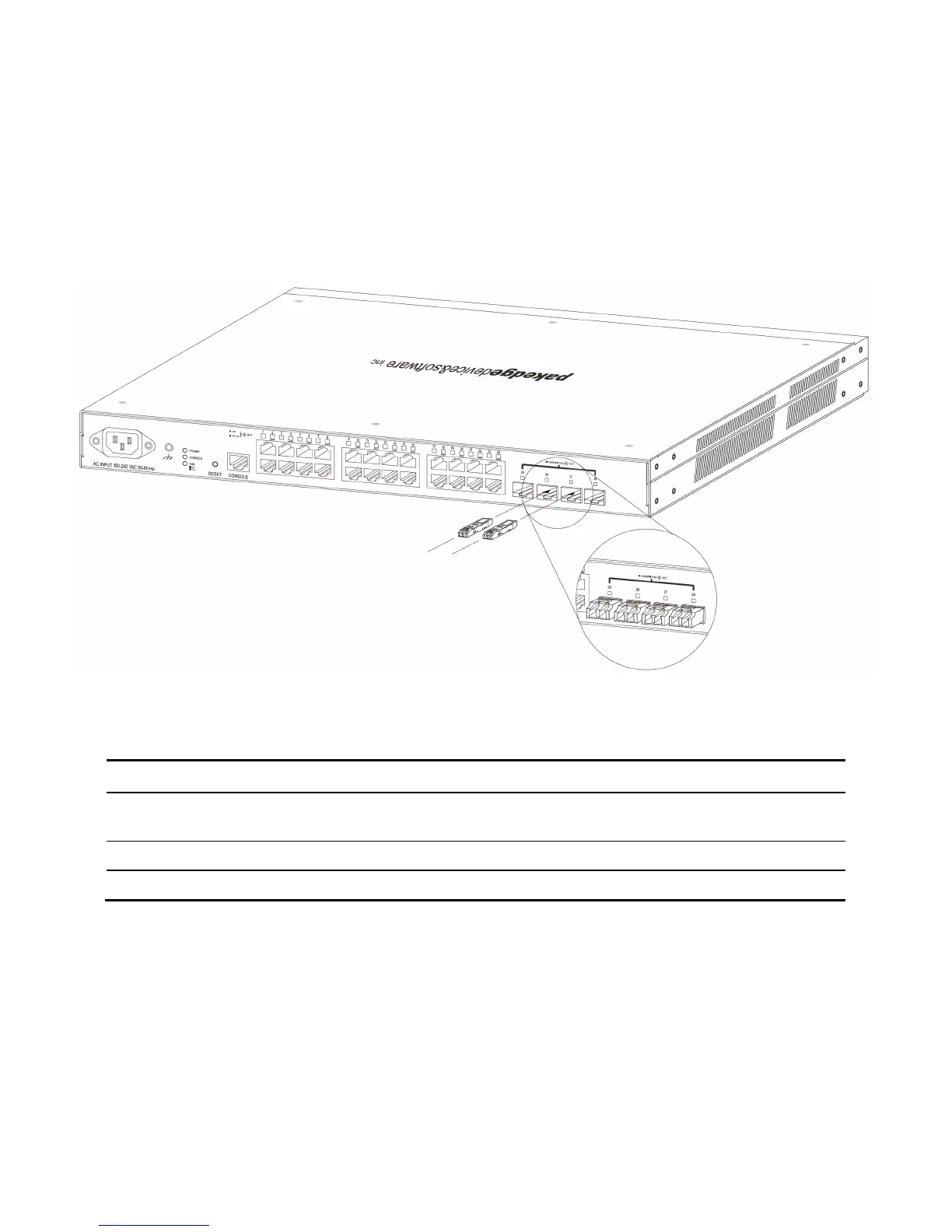

Figure 8: Installing transceivers into the transceiver ports
The following table lists the SFP+ transceiver types supported.
Part number Transceiver Speed Cable Distance
FM-1G-SM
SFP 1000BASE-
LX
Single-mode fiber (1310 nm) 20 km
FM-10G-SM
SFP+ 10GBASE-LR Single-mode fiber (1310 nm) 10 km
FM-10G-DA-1M
SFP+ 10 Gbps Direct-attached-cable (passive) 1 meter
