83

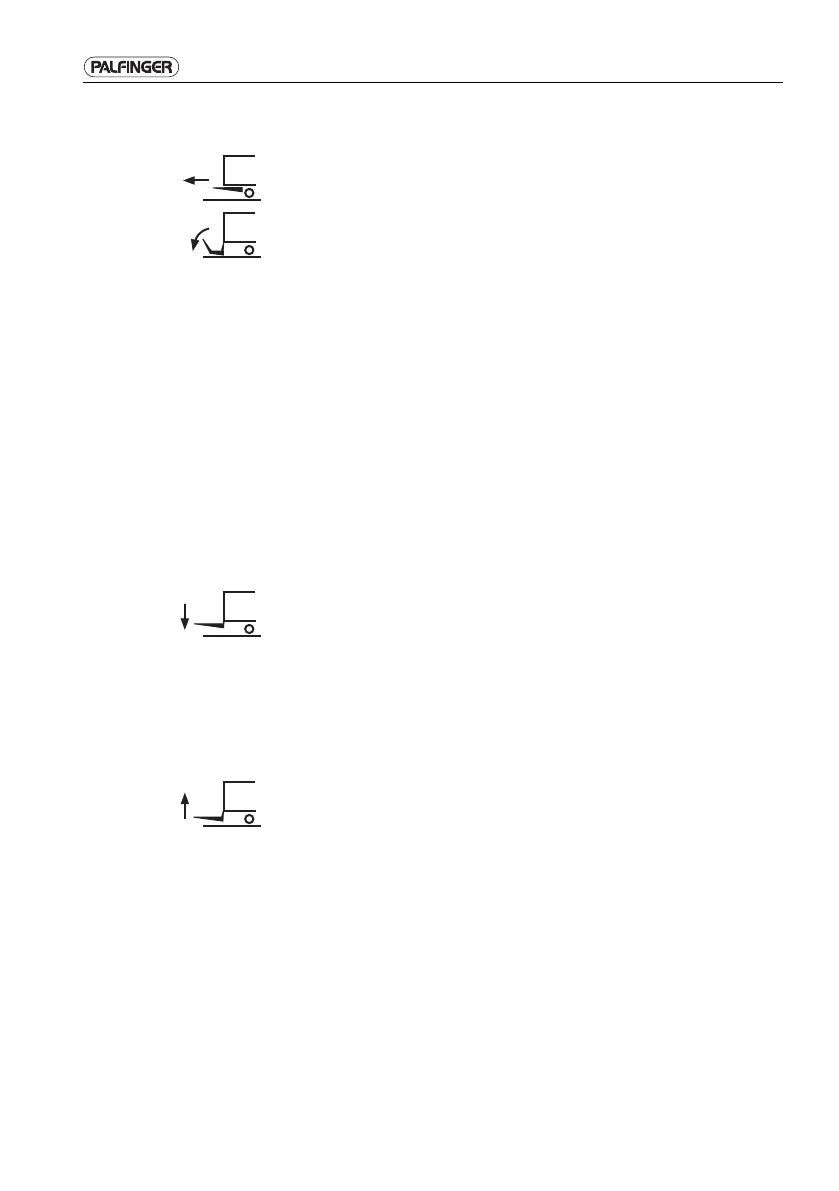

Extending and Folding Out the Platform
Loosen the platform interlock (if present).
Turn the rotary switches (27) and (29) simultaneously
downward and hold them in this position until the platform
has been lowered.
The platform is lowered so that it can be extended without
obstruction.
Turn the rotary switch (30) downward and hold it in this po-
sition until the platform is completely extended.
Turn the rotary switches (27) and (29) simultaneously
downward and hold them in this position until the folded
platform has made contact with the ground.
Protect your hands with gloves.
Pull the platform edge with both hands to unfold the plat-
form to the rear.
Pull the folding part of the platform with both hands to unfold
it to the rear.
Lowering the Platform
Turn the rotary switches (27) and (29) simultaneously
downward and hold them in this position until the platform
has made contact with the ground and is adjusted flush to
the ground.
After the platform has touched the ground it tilts and adjusts
to the ground.
Lifting the Platform
Turn the rotary switches (27) and (29) simultaneously up-
ward and hold them in this position until the platform has
reached the vehicle loading floor height.
The platform tilts to the horizontal or preset position before
it is lifted into the loading position.
Betriebsanleitung_Hubladebuehnen_EN.book Seite 83 Donnerstag, 15. August 2019 4:04 16
