PTV 35/44/55/66 Installation Manual
Rev. 1.1 13
A = Bedheight: Top of trailer floor to level ground (with airbags up):........................................................................________
B = Top of floor to bottom of trailer cross member:.....................................................................................................________
C = Rear sill height (Top of floor to bottom of buck plate): If Stepped sill complete M,N; If Tapered sill complete O, P.
D = Crossmember height:...............................................................................................................................................________
.
E = Tire to end of vehicle body:......................................................................................................................................________
F = Bogie to end of vehicle body................................................________ Sliding Suspension? Yes________ No________
If Yes complete G, H, I, K, and L dimensions
G = Inside horizontal width of sliding suspension angles:.........................................................................................________
H = Diameter of sliding suspension holes:...................................................................................................................________
.
I = Hole spacing:..............................................................................................................................................................________
J = Bottom of crossmembers to bottom of sliding ramp box, if applicable:.............................................................________
K = Rear sill face to first slider hole:.............................................................................................................................________
L = Top of floor, where liftgate platform will meet floor, to the center of the trailer slider holes:............................________
X = Eyebrow depth:.........................................................................................................................................................________
Z = Top of floor, where the liftgate platform will meet the top of the eyebrow:.........................................................________
Customer Information
Quote#/SO#:____________________________________________________
Company:______________________________________________________
Phone:_________________________________________________________
Email: _________________________@______________________________
Trailer Information
Trailer Dimensions
Type of Body (check applicable)
Van
Flatbed
Reefer
Other (specify)____________
Type of Rear Door (check applicable)
Flip-Up
Roll-Up
Swing
Other (specify)________________
Trailer Specifications:
Manufacturer: (ex. Utility)
GVWR: (ex. 68,000 lbs)
Length: (ex. 53ft)
Width: (96", 102")

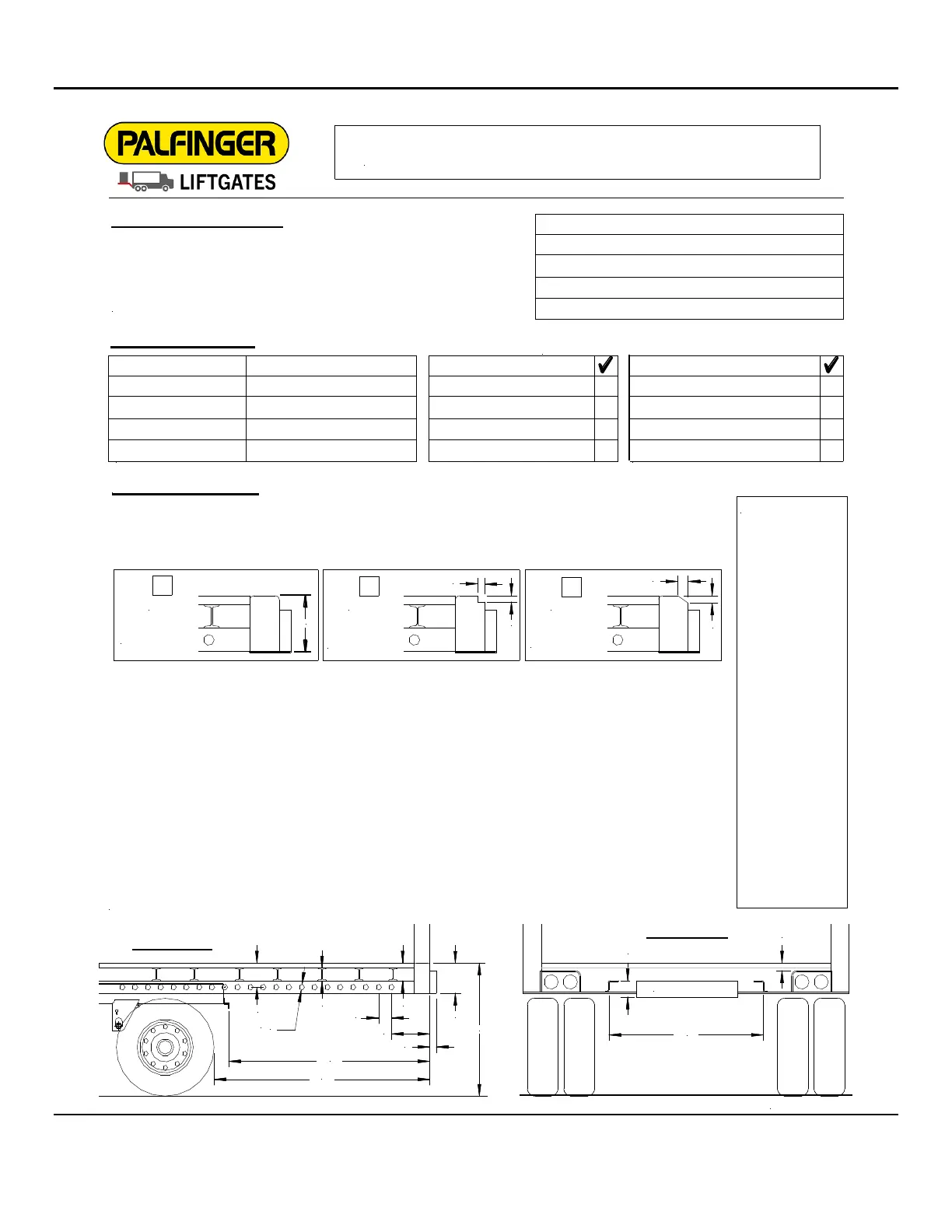

Trailer Chassis Dimension Sheet
Liftgates Information:
Model:
Capacity:
Platform Size:
Platform Material:
90-9813-002_b
Flush
Stepped
Tapered
M = ________
N = ________
O = ________
P = ________
A
B
C
D
E
F
G
Side View of Trailer
Rear View of Trailer
X
Z
L
K
ø
H
I
Walk Ramp (if applicable)
J
M
N
O
P
Notes:
C
C = ________
