12 Hydraulic Installation

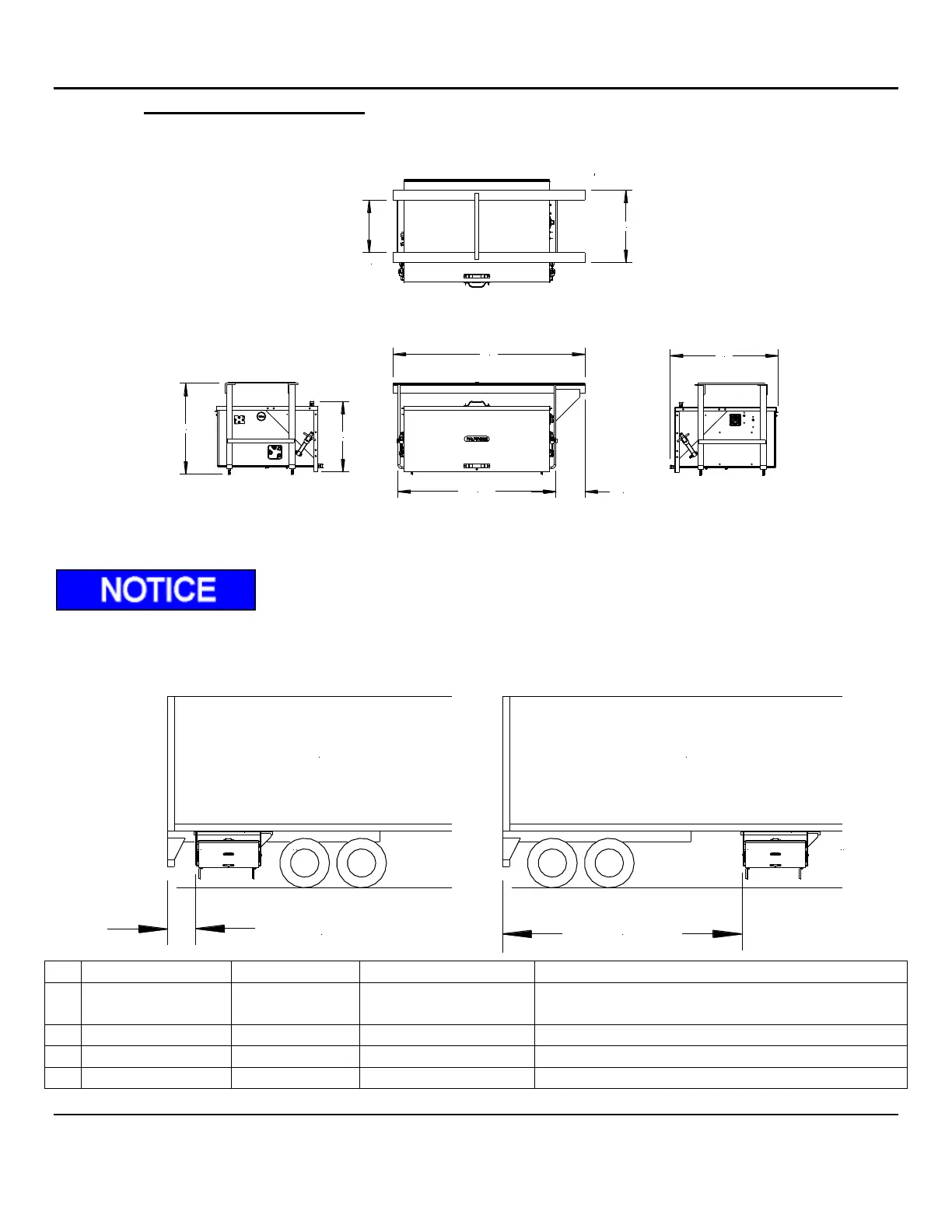

12.1 Hydraulic Enclosure - Dimensions
27"
48"
22-7/8"
39-1/2"
7-1/4"
18-1/4"
13-1/4"
17-3/4"
12.2 Hydraulic Enclosure – Hose Kits
When possible, position the hydraulic enclosure so it can be accessed from the right side of the
vehicle. Place the enclosure such that the access door is 8” in from the side of the body. It is
recommended to position the hydraulic enclosure centered in the wheelbase and forward of the rear
wheels when permitted.
B. Relocation Hose Kit #1
C. Relocation Hose Kit #2
D. Relocation Hose Kit #3
Side View
Right Side
A. Standard Hose Kit
(Shipped Standard w/liftgate)
Side View
Right Side
Hose Kit Part No.
Relocation Kit
Hose Kit Length
Application (Recommended)
A
80-1121-001
Included with
Liftgate
3 ft. (36”) / 914mm
Pump/Battery box mounted behind rear wheels
B
80-1120-012
Optional
9 ft. (108”) / 4570mm
Pump/Battery box mounted Max. 6ft forward.
C
80-1120-013
Optional
18 ft. (216”) / 5486mm
Pump/Battery box mounted Max. 15ft forward.
D
80-1120-014
Optional
27 ft. (324”) / 8230mm
Pump/Battery box mounted Max. 24ft forward.
