PTV 35/44/55/66 Installation Manual
Rev. 1.1 17

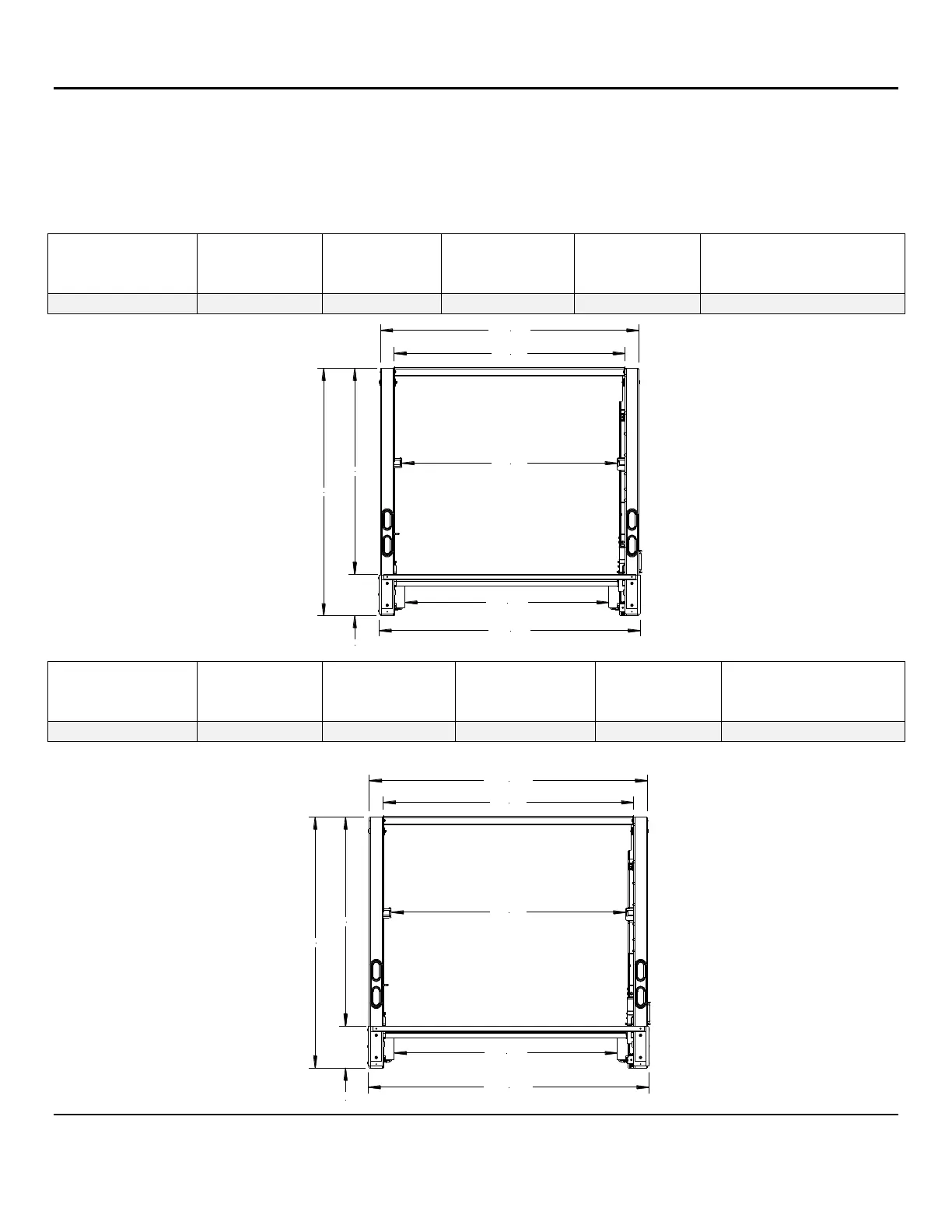

Installation Dimensions - Width Requirements
Reference the chart below to determine the liftgate width dimensions. Ensure that your vehicle meets these
requirements. The PTV series liftgate is offered in two widths for 96” and 102” wide bodies.
Nominal
Truck or Trailer
Width
Outside
Column Dim.
Inside
Column Dim.
Inside Platform
Chain Plate
Overall
Outside Dim.
Overall Liftgate Dim.
H“xW“
96” Wide Body
94-7/16“
84-3/8“
78-5/8“
95-7/16“
90-5/16“ x 95-7/16“
94-7/16"
78-5/8"
95-7/16"
90-5/16"
75-3/16"
74-9/16"
84-3/8"
15-1/8"
Nominal
Truck or Trailer
Width
Outside
Column Dim.
Inside Column
Dim.
Inside Platform
Chain Plate
Overall
Outside Dim.
Overall Liftgate Dim.
H“xW“
102” Wide Body
100-7/16“
90”-3/8“
84-5/8“
101-7/16“
90-5/16“ x 101-7/16“
100-7/16"
84-5/8"
90-5/16"
75-3/16"
101-7/16"
80-9/16"
90-3/8"
15-1/8"
