Palfinger PTV 33 - Control Board System Codes

PTV 35/44/55/66 Installation Manual
Rev. 1.1 62

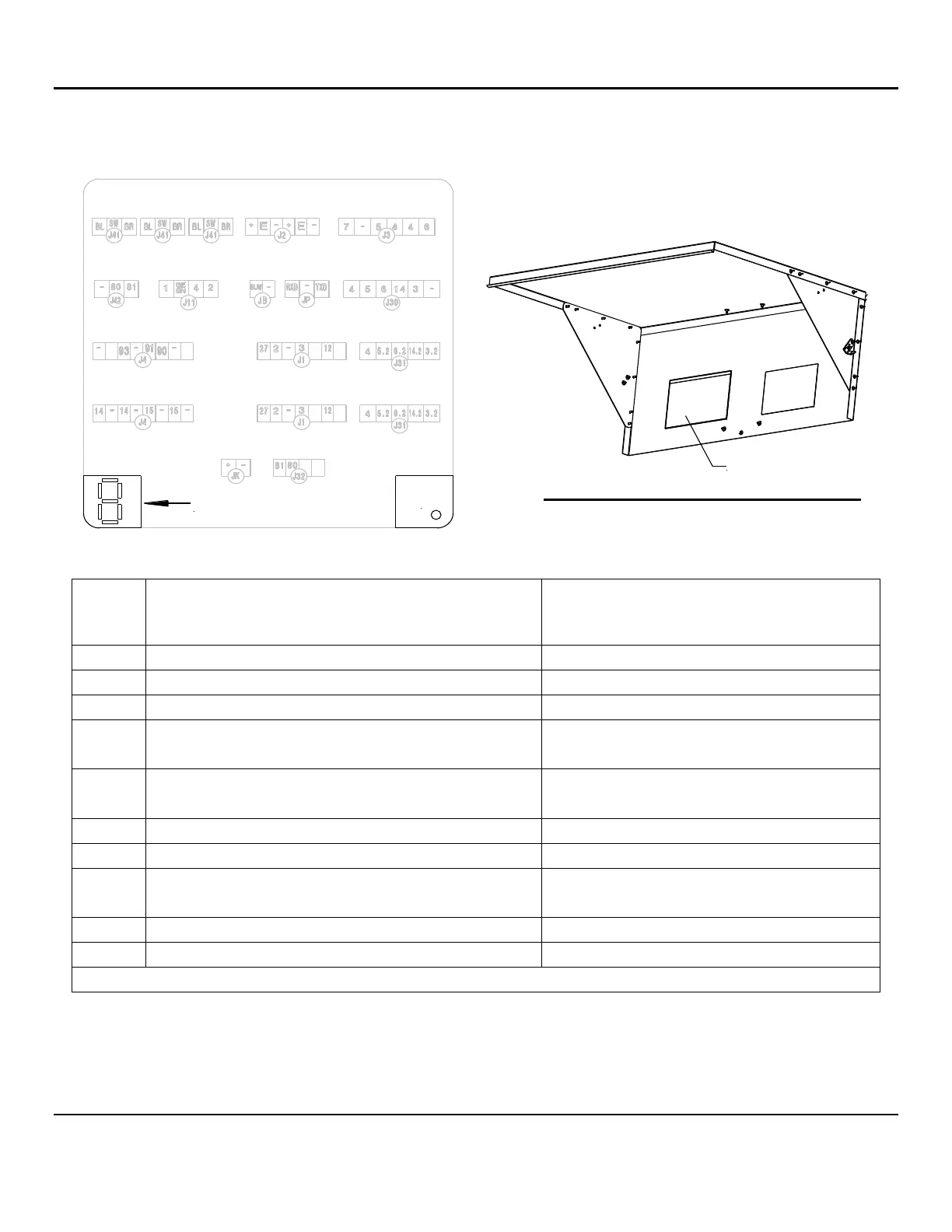

13.10 Control Board System Codes
Codes
Display
Power LED
System Codes Decal
Inside View of Pump and Motor Enclosure Lid
Control
Board
Code
Description
Reset
0
System ok / Cab switch off, (or missing bridge J11/2<->4)
1
System ok / Cab switch on, (or bridge J11/2<->4)
2
Low voltage – start truck engine, charge battery
Cab switch: off/on (or disconnect bridge J11/2<->4)
7
Short in cab switch / on-off-switch or aux port
Cab switch: off/on (or disconnect bridge J11/2<->4)
or close tail lift
8
General short in electric wiring
Cab switch: off/on (or disconnect bridge J11/2<->4)
or voltage interruption MBB control
9
Defect at motor solenoid detected during lifting
Automatically when the valves are back to normal
A
Voltage V02 (J1 pin 2) is missing, defective fuse?
Replace the fuse
b
Defect at opening, valve (S3/S4) or motor relay detected
during opening
Automatically when the valves are back to normal
c
Defect at motor solenoid or S5 valve detected during closing
Automatically when the valves are back to normal
P
Diagnosis mode activated
Removing service connector
To clear code: Unplug J11 and plug back in.
