Palfinger PTV 33 - Cab Shutoff Switch Installation (Optional)

PTV 35/44/55/66 Installation Manual
Rev. 1.1 50
12.4.1 Cab Shutoff Switch Installation (Optional)
Steps:

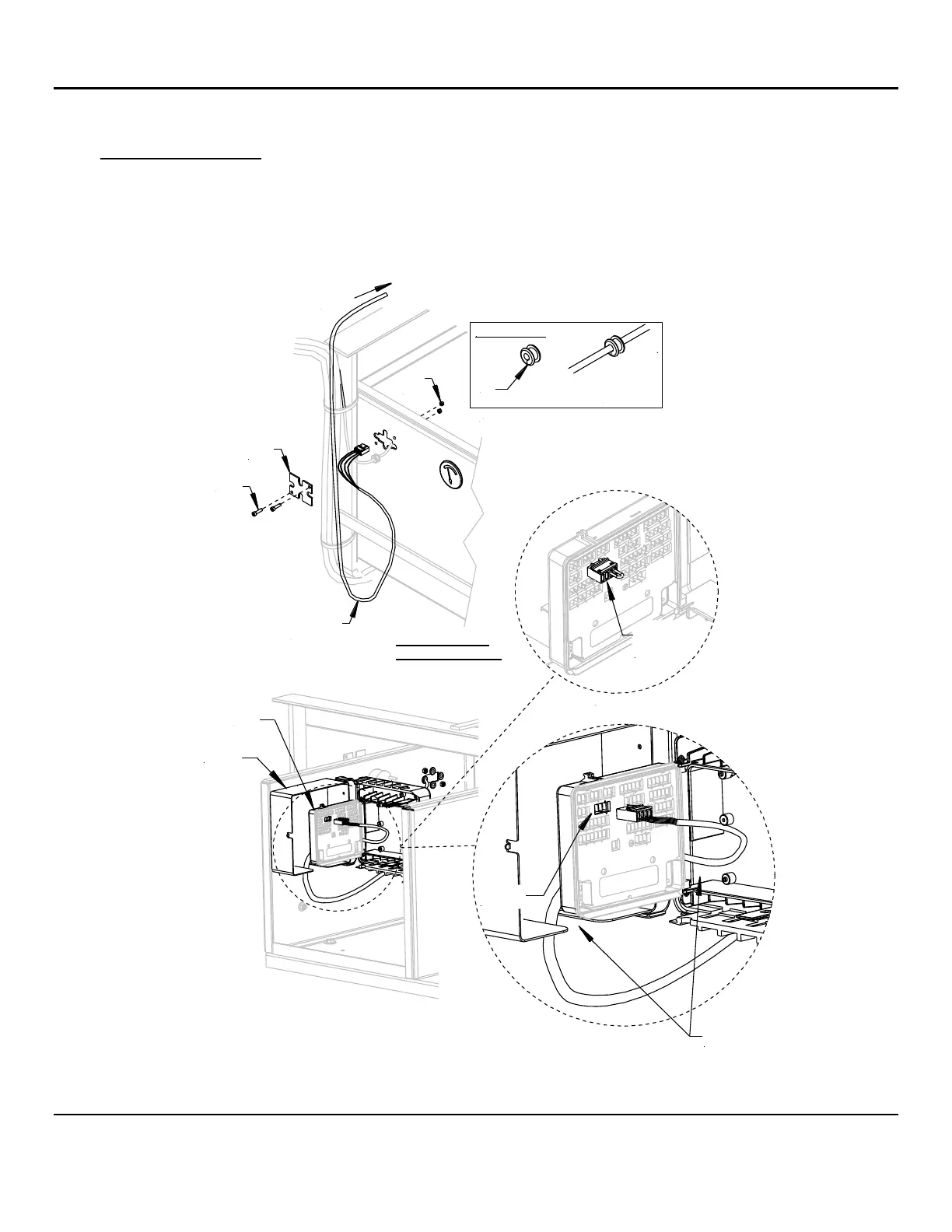

1. J11 Control Harness: Remove the cover plate. Feed the J11 harness through the enclosure opening and
route it to the control board. Disconnect the preinstalled J11 plug from the control board, Fig. 20.
Connect the cab shutoff switch harness (J11) on the same slot from the preinstalled J11 plug that was
removed, Fig. 21. At the hydraulic enclosure entry, cut one grommet as shown in Fig. 19, and fit the cut
grommet over the J11 harness. Position the J11 harness with grommet in one of the grommet slots on
the cover and screw the cover back on to the enclosure.
Voltmeter Side of
Hydraulic Enclosure
Cut Grommet
Cut
Fit Cut
Grommet
Over the
Harness
Cover
Plate
Screw
Lock
Nut
Control Box
Location
Control
Board
Route J11 Harness
under the control board
and through the side of
control board
Route
To Cab
J11
Cab Shutoff
Switch Harness
J11 port on
control board
Preinstalled J11
Jumper Plug to
be removed
Fig. 20
Fig. 21
