Palfinger PTV 33 - Bolt-On Liftgate Installation (Optional); Factory Installed Method

PTV 35/44/55/66 Installation Manual
Rev. 1.1 37
11.3 Bolt-On Liftgate Installation (Optional)
The bolt-on mounting system is installed by using one of the two methods described below:
Factory Installed Vehicle Brackets or Customer Installed Vehicle Brackets.
11.3.1 Factory Installed Method

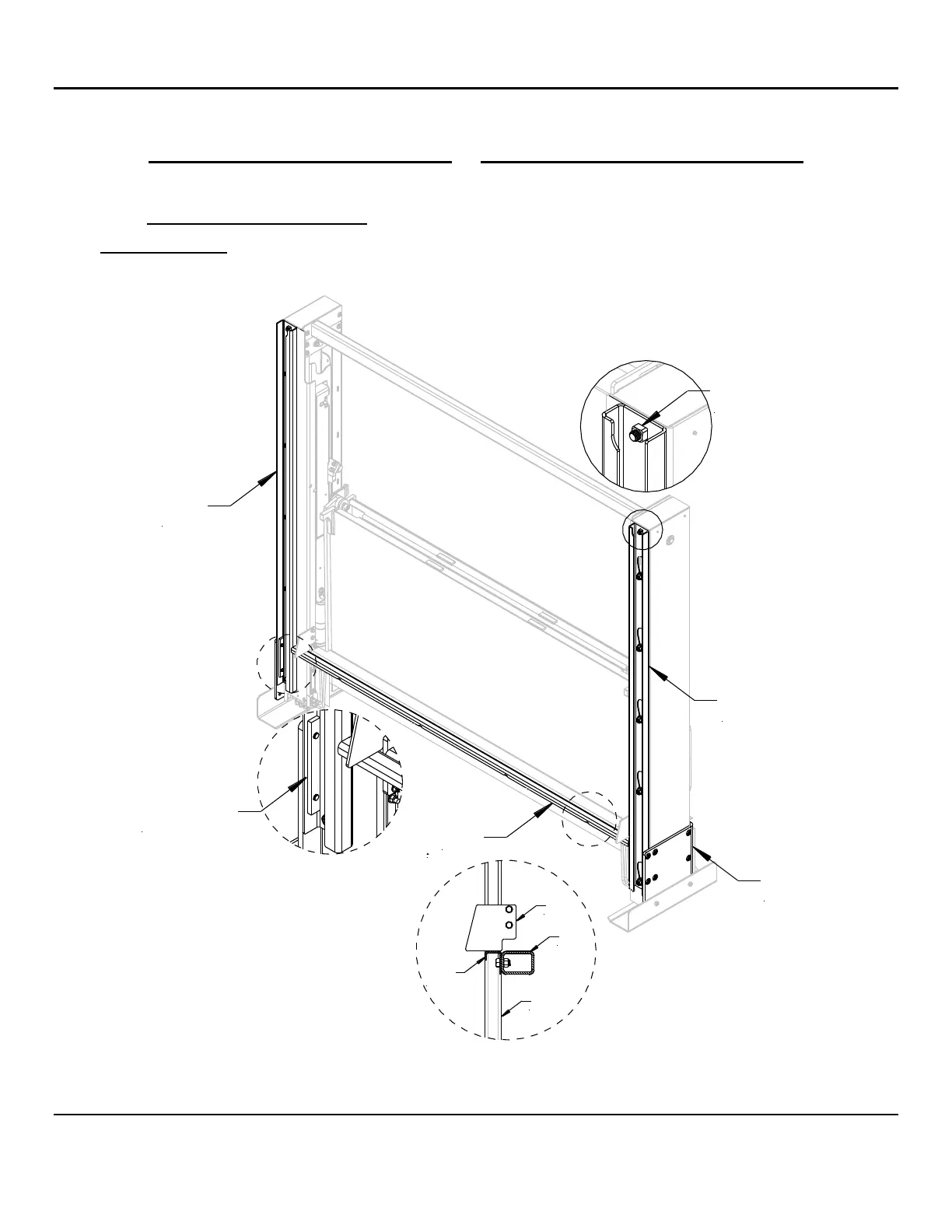

1. Factory Installed: The liftgate arrives from the factory with the Vehicle Brackets installed on the liftgate.
Vehicles Brackets will be secured to the liftgate columns at the top and bottom with bolts.
Liftgate
Bridge
Right Side
Vehicle
Bracket
Left Side
Vehicle
Bracket
Bolt On
Column
Wrap
Bolt Securing
Vehicle Bracket
to Liftgate Colum
Nut bar Securing
Column Wrap to
Vehicle Bracket
Liftgate
Traverse
Vehicle
Bracket
Alignment
Plate
Vehicle
Bracket
Bridge
