T5 Flare Gas Transducer Installation Guide 33
Chapter 3. Installing the Transducer Assemblies
3.2.2 Mounting the Insertion Mechanism (cont.)
2. Visually inspect the transducer, and make sure the top compression fitting is not loose.
IMPORTANT: The stop ring at the end of the barrel should be loose. DO NOT tighten the compression fitting or you
could change the transducer alignment.
3. Remove the four bolts that fasten the barrel to the packing gland.

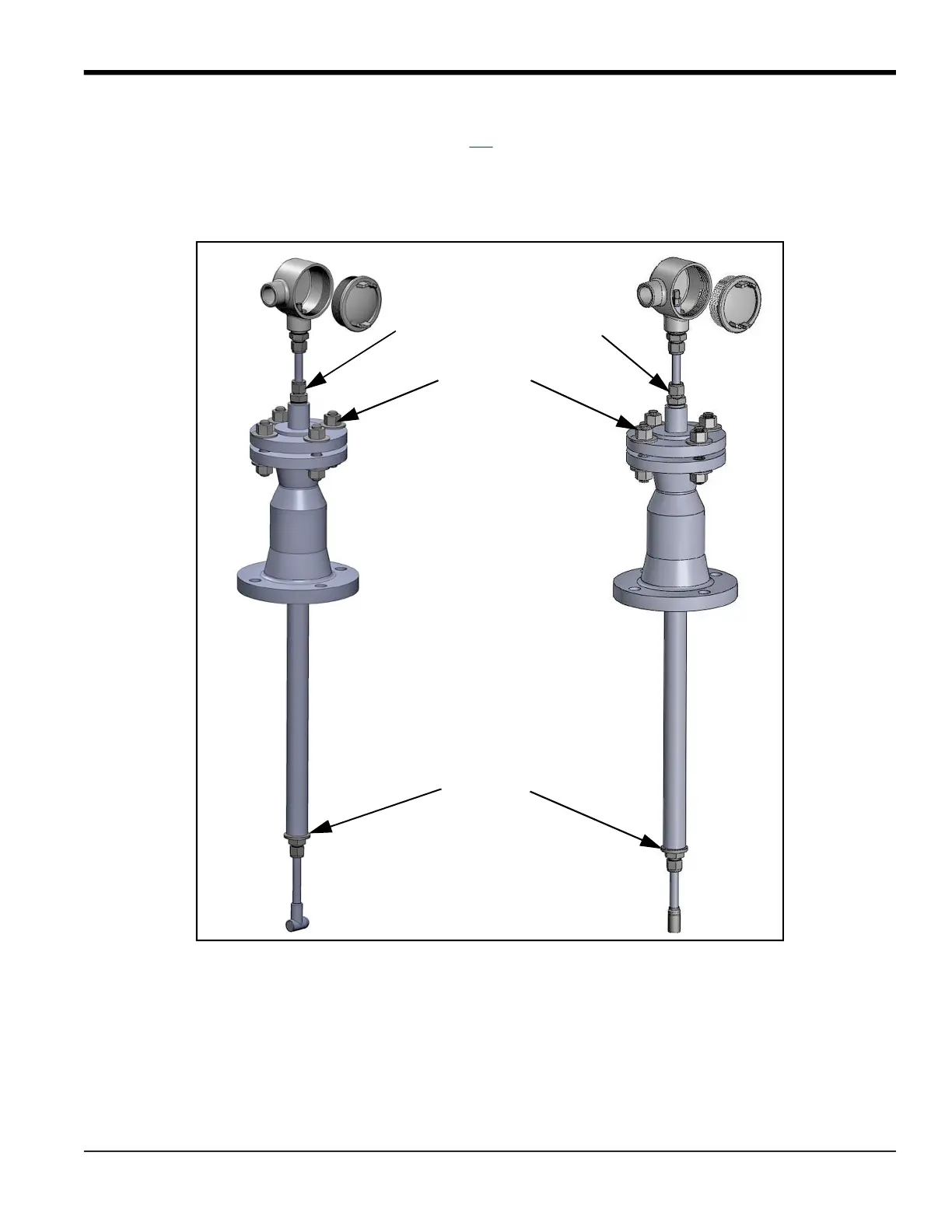

Top Compression Fitting
Four Bolts
Stop Ring
To Next Page
