Chapter 3. Installing the Transducer Assemblies
38 T5 Flare Gas Transducer Installation Guide
3.3 Mounting the Bias 90 Insertion Mechanism Transducer Assembly (cont.)

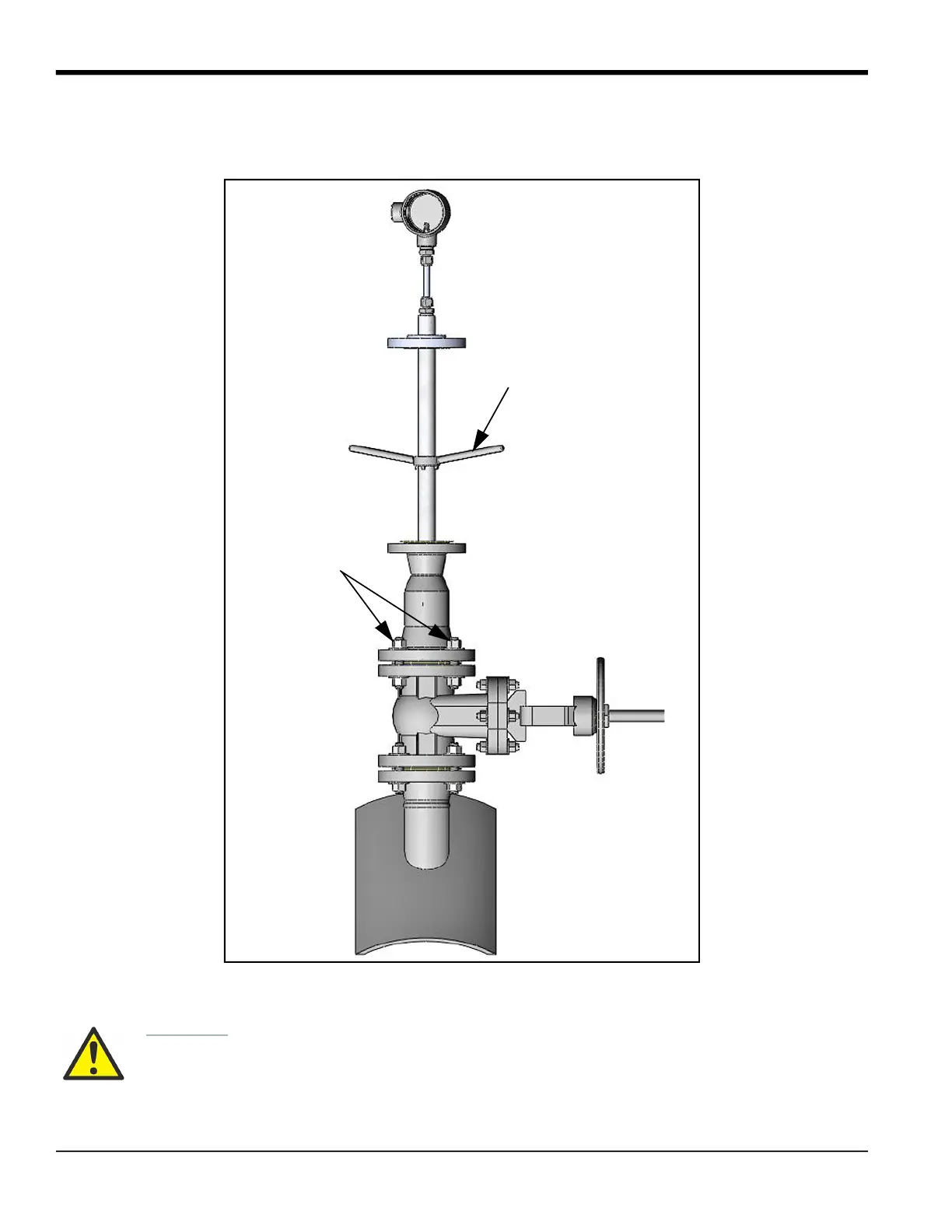

6. Line up the flange holes and bolt the packing gland to the isolation valve.
7. Using the packing tool, tighten the packing nut again so the nut is recessed.
WARNING! The packing material must be securely packed before the isolation valve is opened.
Bolts
Packing Tool
