Chapter 3. Installing the Transducer Assemblies
40 T5 Flare Gas Transducer Installation Guide
3.4 Inserting the Bias 90 Transducer into the Pipe (cont.)

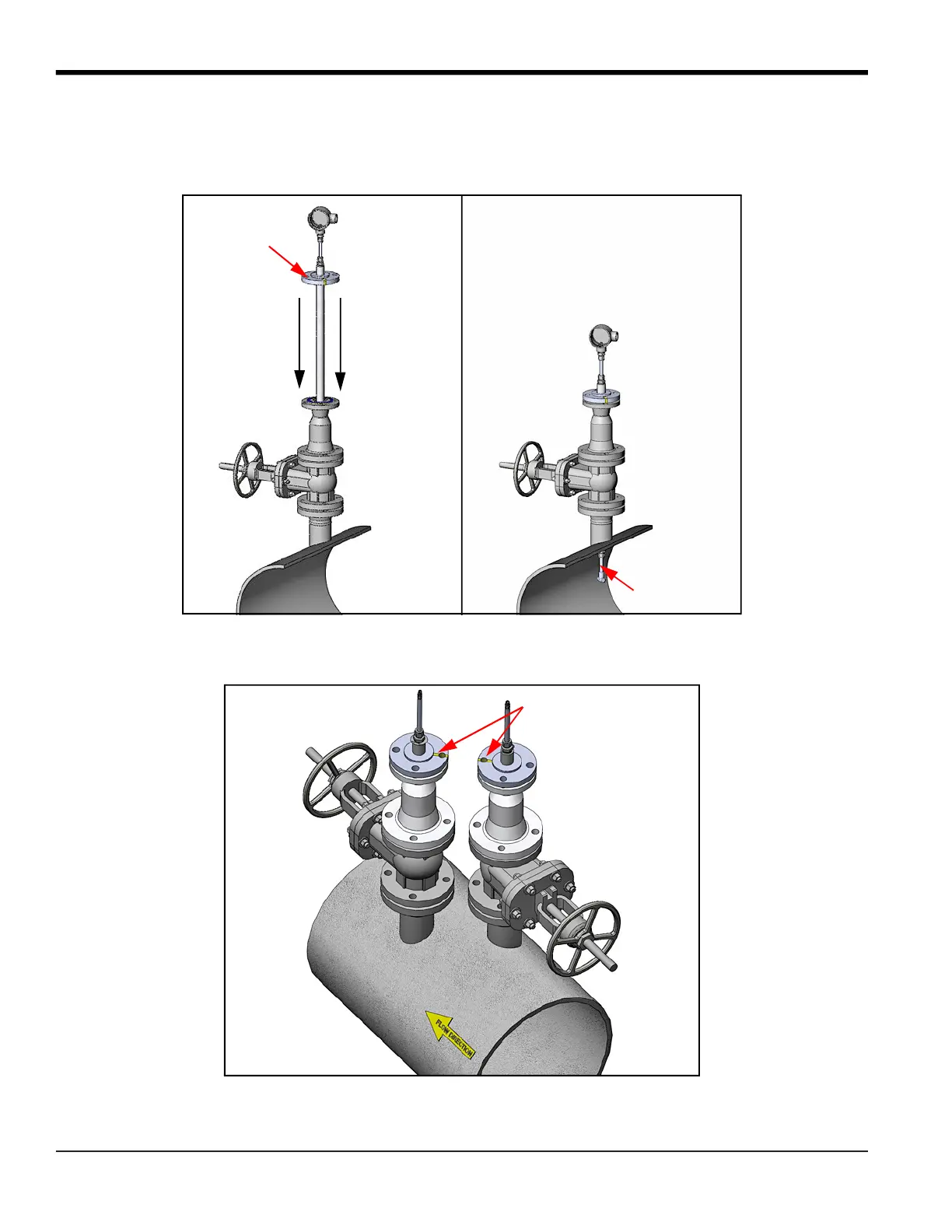

3. Placing your hands on top of the barrel, push the barrel/transducer down into the pipe so that the barrel flange
and the packing gland flange meet. You may have to twist the barrel to get it moving.
4. For this Bias 90 configuration, orient the alignment marks on each barrel flange so that they are facing each
other. The alignment mark, which is marked with yellow paint, is scribed on the top and outside of the flange.
Place
Hands Here
Transducer
Alignment Marks
To Next Page
