T5 Flare Gas Transducer Installation Guide 41
Chapter 3. Installing the Transducer Assemblies
3.4 Inserting the Bias 90 Transducer into the Pipe (cont.)
5. Place two bolts into the flange in holes opposite each other, but not in the hole with the scribe mark. Then, hand
tighten the nuts.
Note: DO NOT
insert the remaining bolts until instructed to do so in the following section.
6. Install the second insertion mechanism by repeating the steps in the two previous sections. After the second
insertion mechanism is installed, proceed to one of the following sections:
• “Aligning the Transducers (Standard Velocity Range)” on page 42
• “Aligning the Transducers (Extended Velocity Range)” on page 42

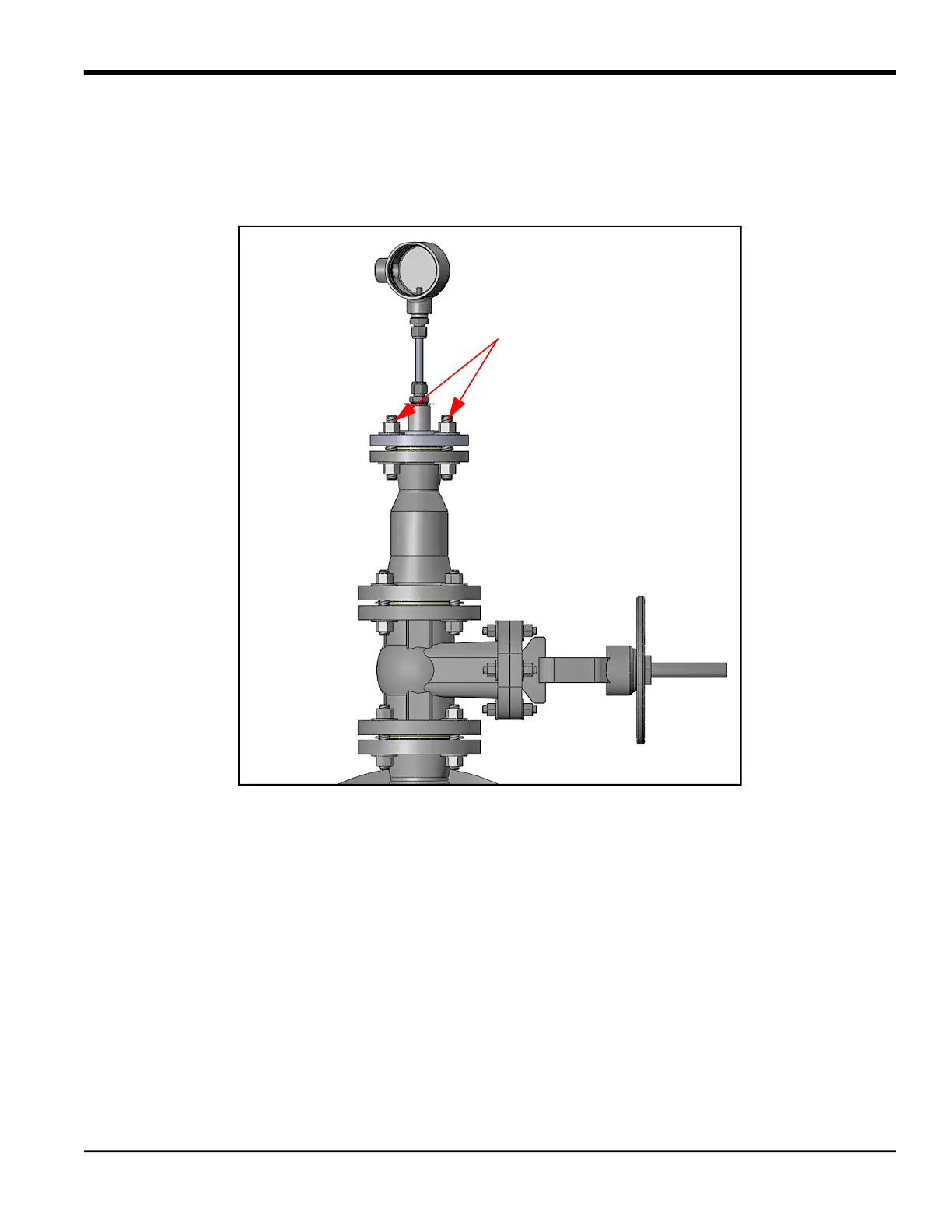

Bolts
