Chapter 3. Installing the Transducer Assemblies
48 T5 Flare Gas Transducer Installation Guide
3.7 Mounting the Tilted 45 Insertion Mechanism/Transducer Assembly (cont.)

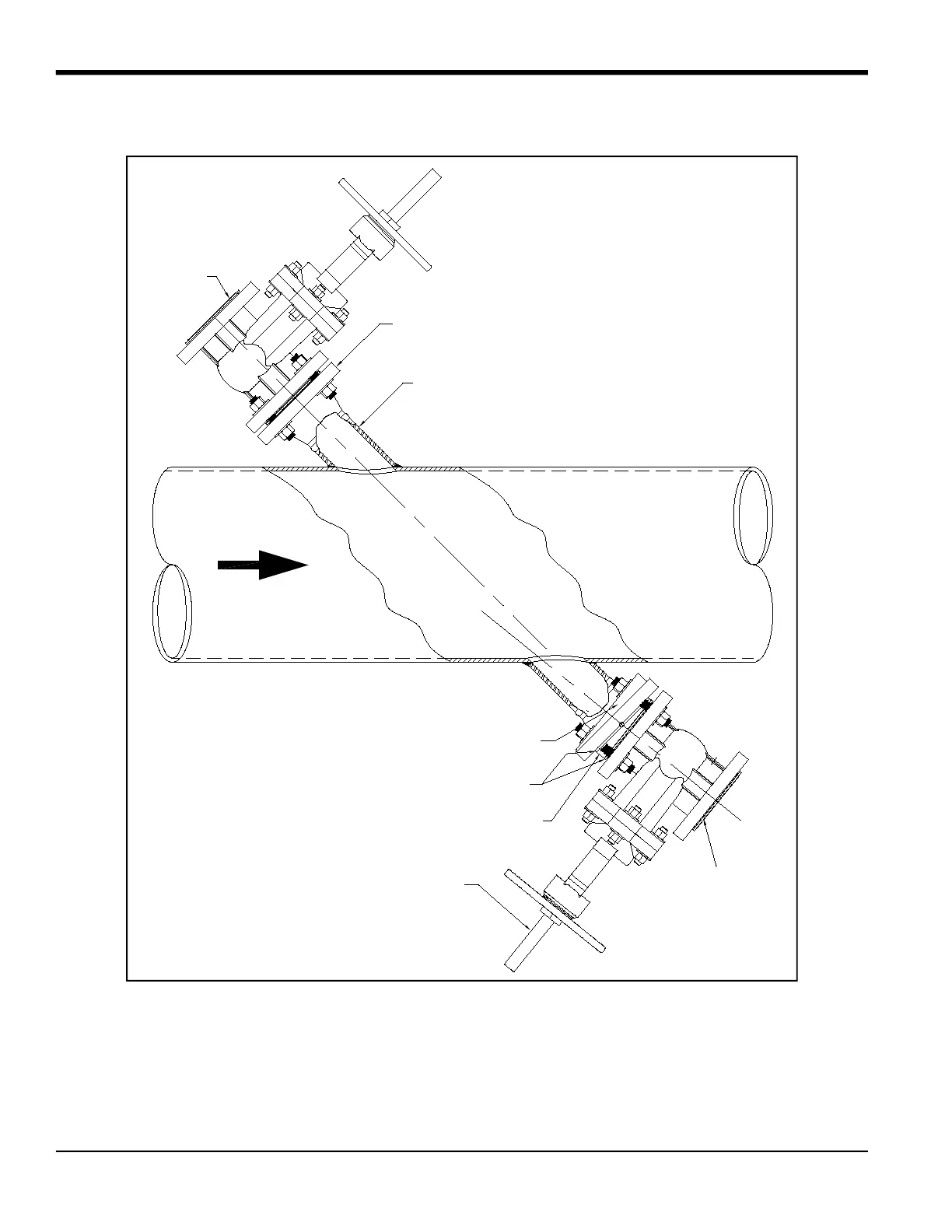

Figure 15: Extended Velocity Range Assembly
ISOLATION BALL VALVE
2 PLACES; REF ONLY
3 INCH 150 LB RF,
FULL OPENING
RECOVERY ANGLE BOLT/NUT SPACER
RECOVERY ANGLE WEDGE
GASKET(S)
GASKET
TRANSDUCER PORT
FLOW
UPSTREAM
TRANSDUCER PORT
DOWNSTREAM
GASKET
2 PLACES; REF ONLY
3 INCH SCH 80 PIPE NOZZLE
3 INCH 150 LB, RF WELDING NECK FLANGE
2 PLACES; REF ONLY
