T5 Flare Gas Transducer Installation Guide 55
Chapter 3. Installing the Transducer Assemblies
3.9 Connecting an XAMP (cont.)
4. Torque the cable gland coming from the flowmeter electronics main housing into the other 3/4” NPT port in the
junction box until there are at least 5 threads of engagement (see
Figure 17
below).

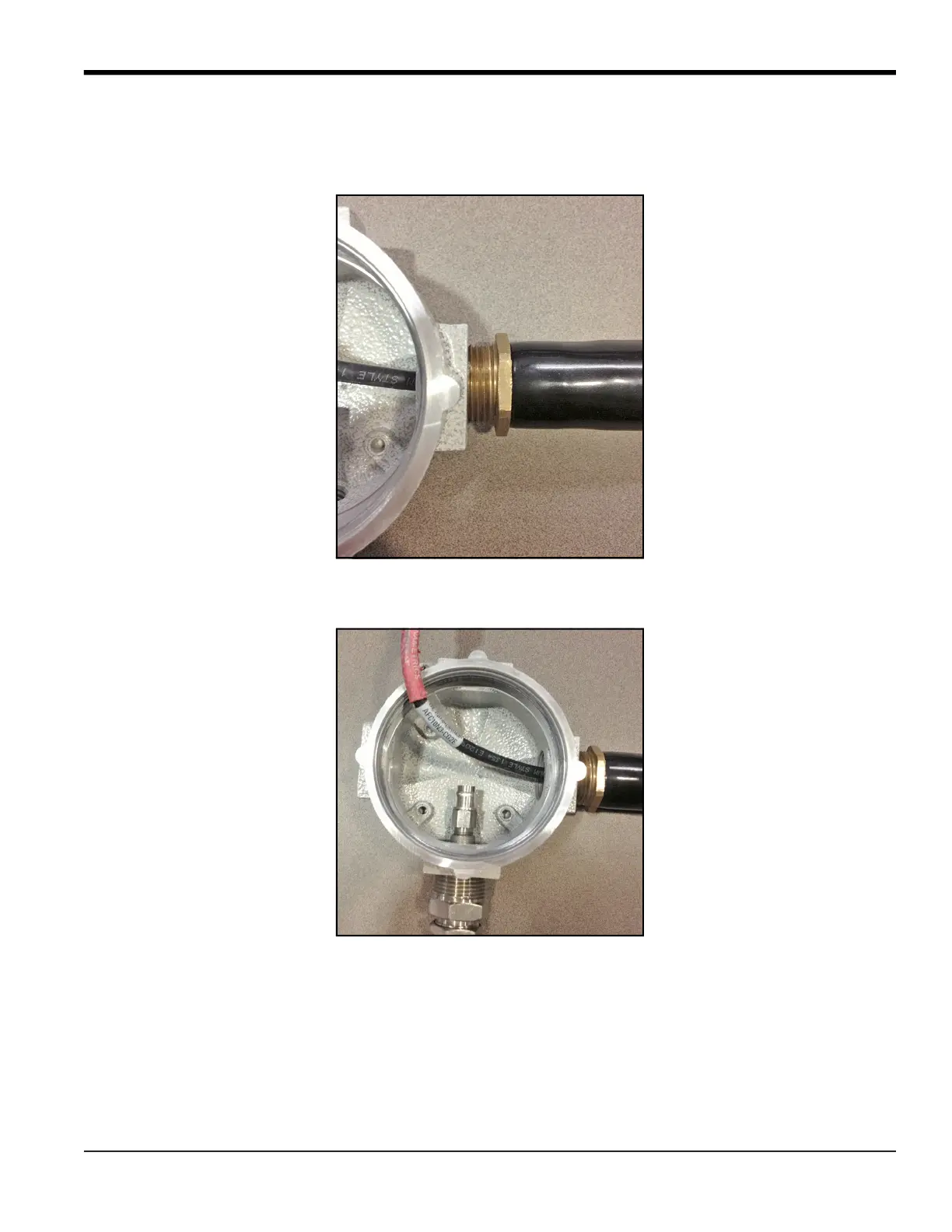

Figure 17: Torquing the Cable Gland
5. Verify that, with the transducer and the cable gland assembled, the junction box looks like
Figure 18
below:
Figure 18: Assembled Transducer and Cable Gland
To Next Page
