Chapter 3. Installing the Transducer Assemblies
56 T5 Flare Gas Transducer Installation Guide
3.9 Connecting an XAMP (cont.)

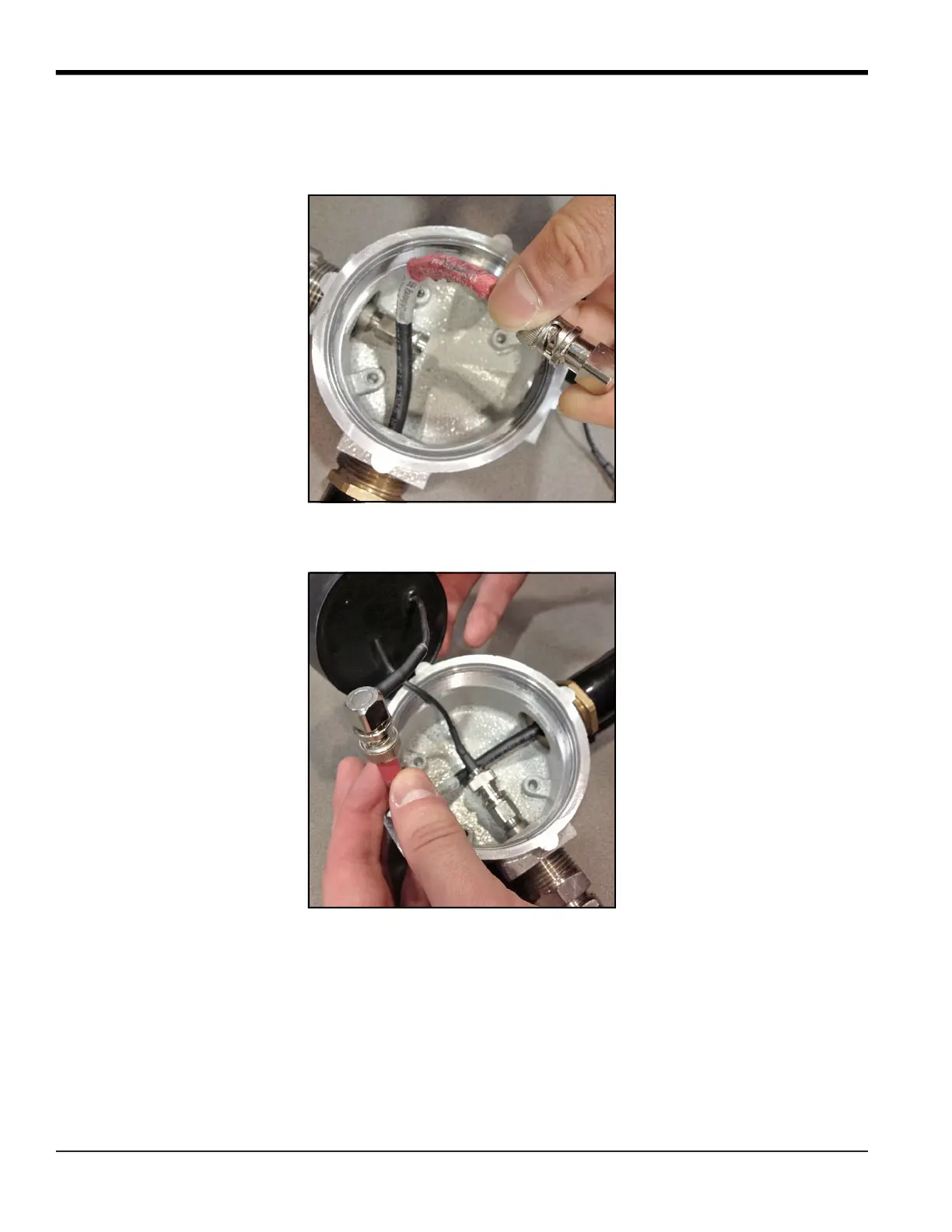

6. Connect the right angle male BNC plug to the exposed BNC cable from the cable gland assembly, as shown in
Figure 19
below.
Figure 19: Connecting BNC Plug to the Cable
7. Connect the female BNC plug of the XAMP to the male BNC transducer head as shown in
Figure 20
below:
Figure 20: Female Plug to Male BNC Head
To Next Page
