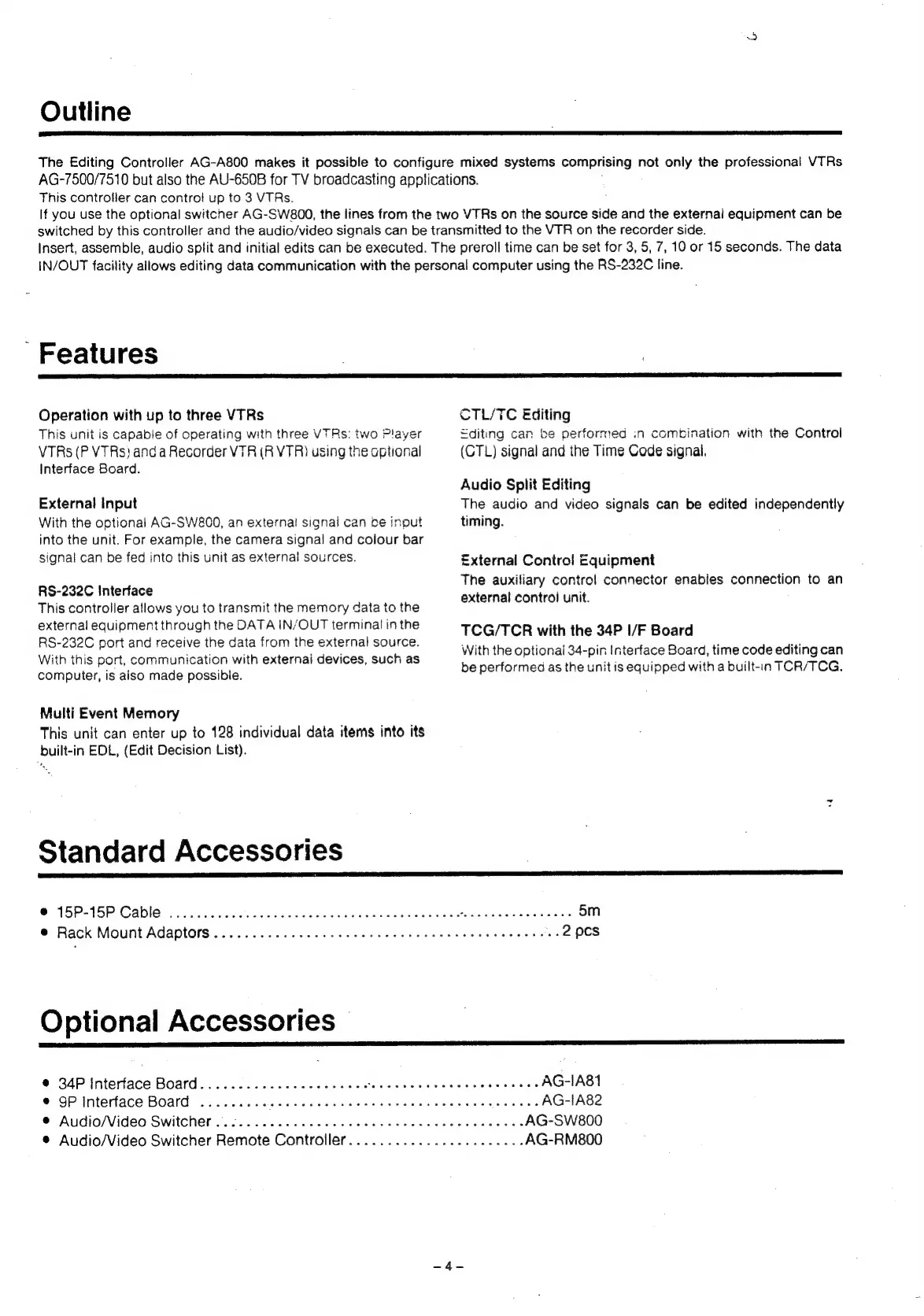

Outline
The Editing Controller AG-A800 makes it possible to configure mixed systems comprising not only the professional VTRs
AG-7500/7510 but also the AU-650B for TV broadcasting applications.
This controller can contro! up to 3 VTRs.
If you use the optional switcher AG-SW800, the lines from the two VTRs on the source side and the externai equipment can be
switched by this controller and the audio/video signals can be transmitted to the VTR on the recorder side.
Insert, assemble, audio split and initial edits can be executed. The preroll time can be set for 3, 5, 7, 10 or 15 seconds. The data
IN/OUT facility allows editing data communication with the personal computer using the RS-232C line.
Features
Operation with up to three VTRs
This unit is capabie of operating with three VTRs: two Player
VTRs (P VTRs} and a Recorder VTR (R VTR) using the cptional
Interface Board.
External Input
With the optional AG-SW&00, an externa! signal can ce input
into the unit. For example, the camera signal and colour bar
signal can be fed into this unit as external sources.
RS-232C Interface
This controller allows you to transmit the memory data to the
external equipment through the DATA IN/OUT terminal in the
RS-232C port and receive the data from the external source.
With this port, communication with externai devices, such as
computer, is also made possible.
Multi Event Memory
This unit can enter up to 128 individual data items into its
built-in EDL, (Edit Decision List).
Standard Accessories
CTL/TC Editing
Editing can be performed in combination with the Control
(CTL) signal and the Time Code signal.
Audio Split Editing
The audio and video signals can be edited independently
timing.
External Control! Equipment
The auxiliary control connector enables connection to an
external control unit.
TCG/TCR with the 34P !/F Board
With the optionai 34-pin Interface Board, time code editing can
be performed as the unit is equipped with a built-in TCR/TCG.
@ 15 P=15 RP CaBle: xcscieied ces Taverna sho de ale baWee sb ee ae aa Aleka sies wee alees 5m
@ Rack Mount Adaptors ......... 0. cece e ee eee cence eee e etna ee enees 2 pcs
Optional Accessories
®@
34P
Interface
Board...
.
ccc
cece
ce
eee
tee
eee
t
eee
er
eeees
AG-!IA81
®
OP
Interface
Board
2...
cece
eee
ccc
eee
tence
eee
e
eee
enee
AG-IA82
®
Audio/Video
Switcher
02...
2.
cece
eee
cece
cee
eee
eee
eeeees
AG-SW800
®
Audio/Video
Switcher
Remote
Controller.
.............0
eee
e
eee
AG-RM800
