Panasonic AG-A800 - Controls and Their Functions; Control Panel

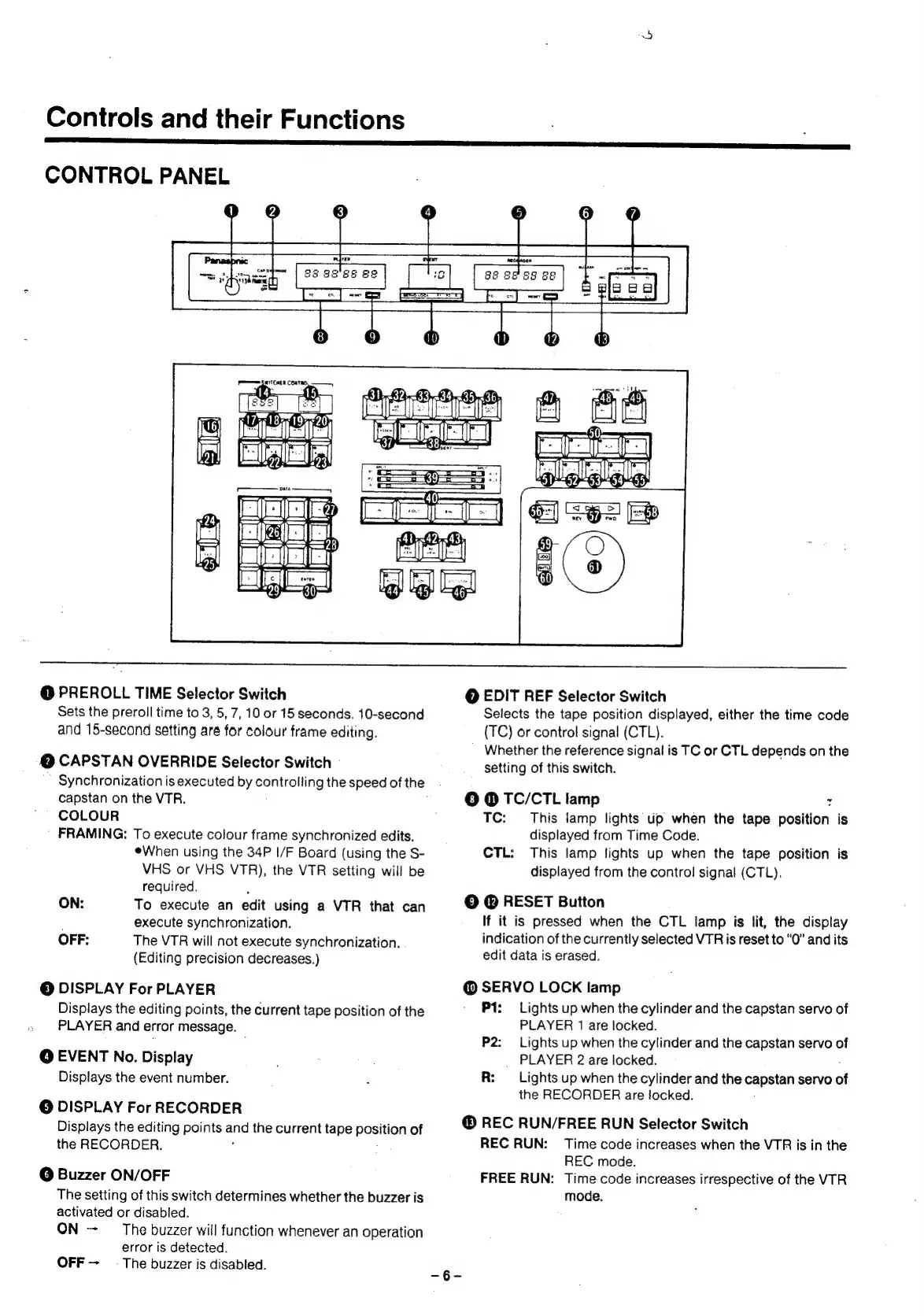

Controls and their Functions
CONTROL PANEL
eiaial
olla
@ PREROLL TIME Selector Switch
Sets
the
preroll
time
to
3,
5,
7,
10
or
15
seconds.
10-second
and
15-second
setting
are
for
colour
frame
editing.
2] CAPSTAN OVERRIDE Selector Switch
Synchronization is executed by Sontrouling the speed of the
capstan on the VTR.
COLOUR
’
FRAMING:
To
execute
colour
frame
synchronized
edits.
When using the 34P I/F Board (using the S-
VHS or VHS VTR), the VTR setting will be
required.
ON:
To
execute
an
edit
using
a
VTR
that
can
execute synchronization.
OFF: The VTR will not execute synchronization.
(Editing precision decreases.)
© DISPLAY For PLAYER
Displays
the
editing
points,
the
current
tape
position
of
the
PLAYER
and
error
message.
O EVENT No. Display
Displays the event number.
@ DISPLAY For RECORDER
Displays
the
editing
points
ae
the
current
tape
position
of
the
RECORDER.
© Buzzer ON/OFF
The
setting
of
this
switch
determines
whether
the
buzzer
is
activated
or
disabled.
ON - = The buzzer will function whenever an operation
error is detected.
OFF- = The buzzer is disabled.
4 je 42 ee 43"
ee
i: <=) lp
O
= \ @
@ EDIT REF Selector Switch
Selects the tape position displayed, either the time code
(TC) or control signal (CTL).
Whether the reference signal is TC or CTL depends on the
setting of this switch.
© @ TC/CTL tamp z
TC: This lamp lights up when the tape position is
displayed from Time Code.
CTL: This lamp lights up when the tape position is
displayed from the control signal (CTL).
© @® RESET Button
If it is pressed when the CTL lamp is lit, the display
indication of the currently selected VTR is reset to “O” and its
edit data is erased.
© SERVO LOCK lamp
P1: Lights up when the cylinder and the capstan servo of
PLAYER 1 are locked.
P2: Lights up when the cylinder and the capstan servo of
_ PLAYER 2 are locked.
R: — Lights up when the cylinder and the capstan servo of
the RECORDER are locked.
@© REC RUN/FREE RUN Selector Switch
REC RUN: Time code increases when the VTR is in the
REC mode.
FREE RUN: Time code increases irrespective of the VTR
mode.
