E-11

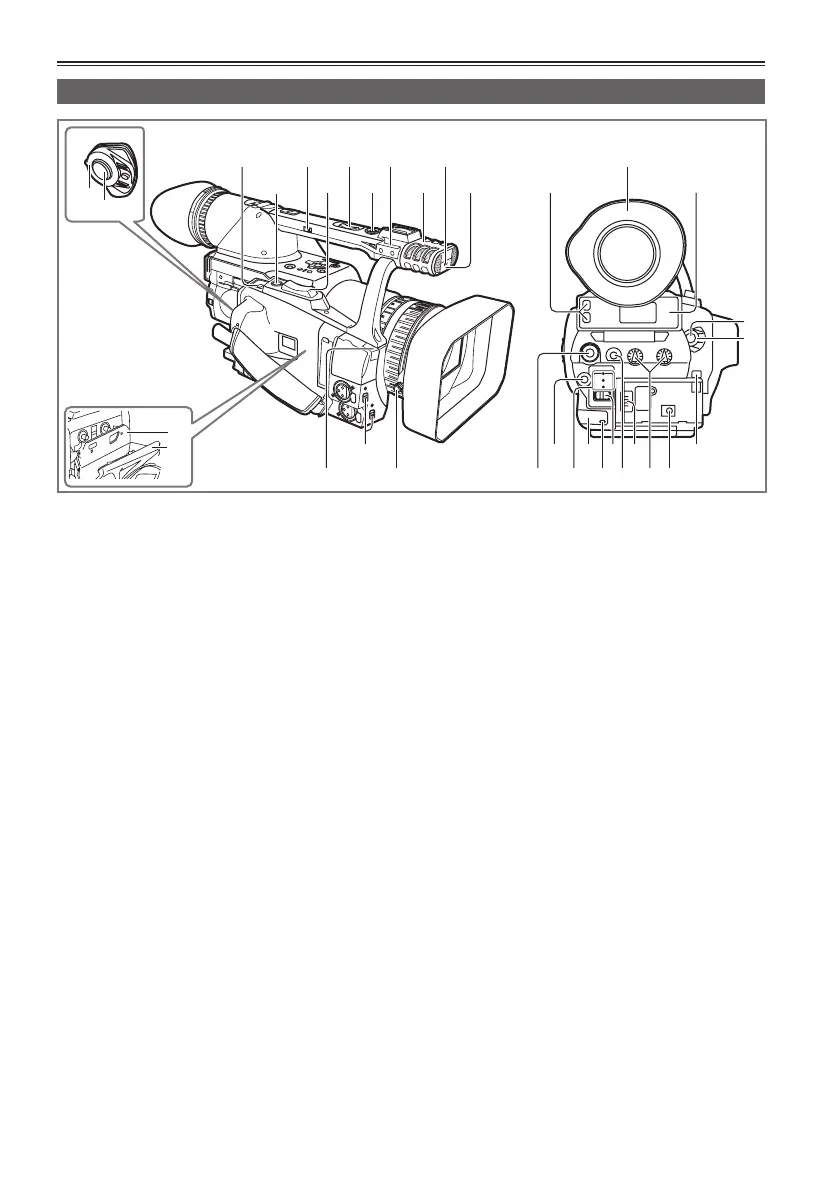

Description of parts
1 POWER switch (Page 19)
2 START/STOP button (Pages 24 and 28)
3 OPEN/EJECT switch (Page 28)
4 REC CHECK button (Pages 24 and 29)
5 HANDLE ZOOM switch (Page 32)
6 Zoom button (Page 32)
7 Handle zoom button (Page 32)
8 Handle START/STOP button
(Pages 24 and 28)
9 Pin hole (for zoom ring) (Page 12)
10 Built-in stereo microphone (Page 51)
11 Tally lamp (Front) (Page 19)
12 Remote control sensor (Front)
13 Cassette holder (Pages 28 and 29)
14 Cassette cover (Pages 28 and 29)
15 White balance sensor (Page 39)
16 INPUT 1/2 (audio input) switch (Page 51)
17 Lens hood screw (Page 17)
18 P2 card access lamp (x 2) (Page 25)
19 Viewfinder (Page 20)
20 P2 card slot (x 2) (Page 24)
21 SCENE FILE dial (Page 53)
22 Mode button (Page 24 and 28)
23 Mode lamp (Page 24 and 28)
24 Remote control sensor (Rear)
25 Tally lamp (Rear) (Page 19)
26 MEDIA (P2/TAPE) switch
(Pages 24 and 28)
27 EVF DTL button (Page 21)
28 Power terminal (Page 16)
29 AUDIO control (Page 52)
30 DC INPUT terminal (7.9 V)
31 Battery release button (Page 16)
P
U
S
H
357
10 12
9
11
13
14
1
2
4
68
18
19
20
21 23 25 27 29
22 24 26 28 31
3015 17
16
2
1
Right side and rear side
