Panasonic AG-HVX200E - Terminals and Mounting Parts

E-13
Description of parts (continued)
S-VIDEO
IN/OUT
COMPONENT
OUT
VIDEO
IN/
OUT
IN/
OUT
AUDIO
CH1
CH2
CAM REMOTE
USB 2.0
ZOOM SS
FOCUS IRIS
3
7
8
9
13
12
12
11
10
6
4
5
1394

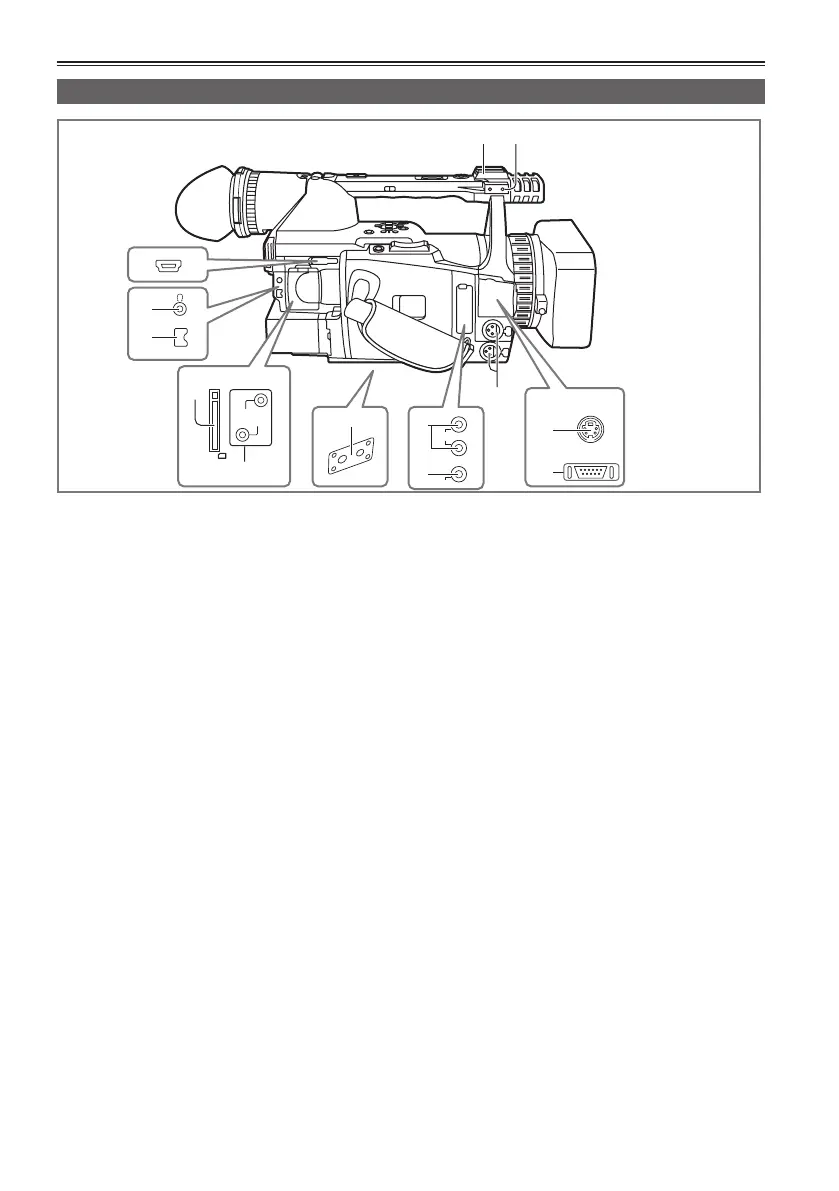

Terminals and mounting parts
1 Light shoe
2 Microphone shoe (Page 75)
3 USB terminal (Mini-B) (Pages 76 and 81)
4 Headphone jack (3.5 mm stereo mini jack)
(Page 75)
5 1394 terminal (Page 76)
6 SD memory card slot (Pages 31 and 55)
7 CAM REMOTE jack
∗
FOCUS/IRIS (3.5 mm mini jack)
You can connect a remote control unit to control
the FOCUS and IRIS (aperture).
ZOOM S/S (2.5 mm super mini jack)
You can connect a remote control unit to control
zoom and start/stop of recording.
8 Tripod hole (Page 9)
9 AUDIO IN/OUT CH1/CH2 terminal (Page 78)
10 VIDEO IN/OUT terminal (Page 78)
11 INPUT 1/2 terminal (XLR, 3 pin)
(Pages 51 and 79)
12 S-VIDEO IN/OUT terminal (Page 78)
13 COMPONENT OUT terminal (Page 78)
∗ Do not connect any equipment except the remote
controller to the remote control jack. Connecting
any equipment other than the remote control may
cause the image brightness to change and/or the
images to appear out of focus.
