Tightening the mounting screws
Tighten using the torque levels shown in the table below.
After tightening, check for play and unsteadiness.

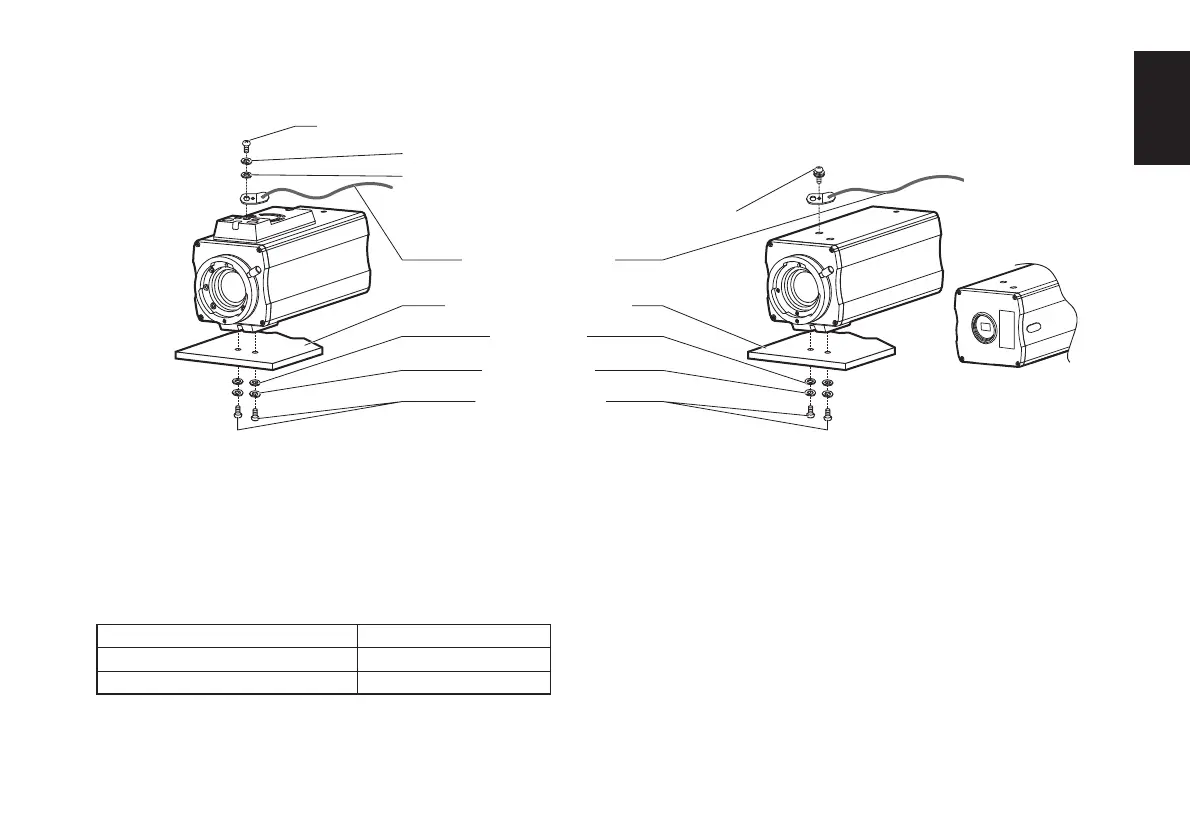

Mounting screw for wire (supplied) (Inch screw: 1/4-20UNC)
Mounting screw for wire
(supplied) (M4)
Drop-prevention wire
Pan-tilt head or
camera mounting bracket
Flat washers
Flat washer (supplied)
Spring washer (supplied)
Spring washers
<AW-E750/AW-E655> <AW-E650/AW-E350>
(AW-E350)
(AW-E650)
Mounting screws
(Inch screws: 1/4-20UNC)
Screws Clamping torque
Mounting screws (M4) 1.5 N • m (15 kgf • cm)
Mounting screws (Inch screws) 2.0 N • m (20 kgf • cm)
