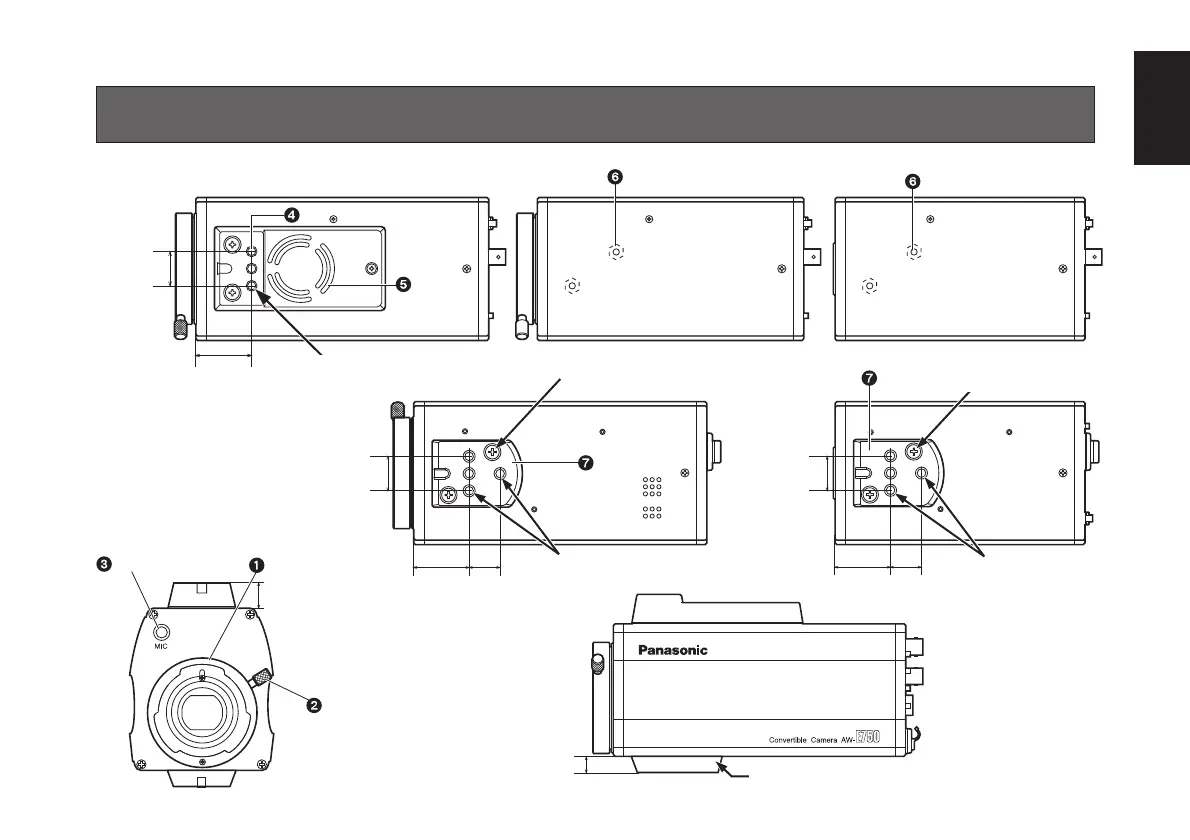

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
(AW-E655 only)
 Supplied part (installed on-site)
<Top View>
<Bottom View>
(AW-E350)
20 mm
20 mm
20 mm
32.5 mm
Mounting screws (Inch screws)
1/4-20UNC, Depth: 10 mm
<Front View>
<Side View>
17.5 mm
10 mm
Mounting screws
(Inch screws)
1/4-20UNC,
Depth: 10 mm
Mounting screws (Inch screws)
1/4-20UNC, Depth: 10 mm
Use the adapter mounting screws
(M4, supplied) for mounting.
Use the adapter mounting screws
(M4, supplied) for mounting.
32.5 mm
18 mm 32.5 mm 18 mm
(AW-E650)(AW-E750/AW-E655)
(AW-E350)(AW-E750/AW-E655/AW-E650)
