8. Digital Gain Up Setting
[Digital Gain Up: 0dB, 6dB, 12dB, 18dB, 24dB, 30dB]
This can be set only when “OFF” has been selected
as the auto gain up setting (-5).
0 dB: Under normal circumstances, this setting is
used.
6 dB to 30 dB: Use this setting while shooting
dark scenes if it is not possible to achieve a
satisfactory video output even when the lens
diaphragm is opened and “Night Eye” is selected
as the manual gain up setting (-7).
9. CCD Storage Time Setting
[ Charge Time: Auto, OFF, 1/25s, 1/12s, 1/6s, 1/3s,
1/2s, 1s, 2s]
This is used to set the CCD storage time.
Auto: ALC is performed followed by AGC and then by
the data storage, and the camera automatically
adjusts the light quantity.
If “ON” is selected as the auto ND (ELC) setting
(-4), ELC is performed followed by ALC, AGC
and then by the data storage in this order, and the
light quantity is automatically adjusted.
The electronic shutter setting (-2) cannot be
changed.
OFF: Under normal circumstances, this setting is
used.
1/25s to 2s: Use this setting if it is not possible to
achieve a satisfactory video output even when the
gain up setting is used.
The auto ND (ELC) setting (-4) and electronic
shutter setting (-2) go “OFF” and cannot be
changed.
K If the images (CCD read out (mode) setting
(-4)) have been set to “Fine”, 1/12s to 2s is
selected as the storage time setting, and the
sensitivity is set to about one-half of that obtained
with when they have been set to “Normal”.
10.
Black Level Setting [Pedestal: –150 to +150]
The black level (pedestal) of the luminance (Y) signal
can be set. Used in adjusting the black levels of two or
more cameras.
• Only 0 dB, 9 dB, or 18 dB can be selected in case
of using the RCU.
Note

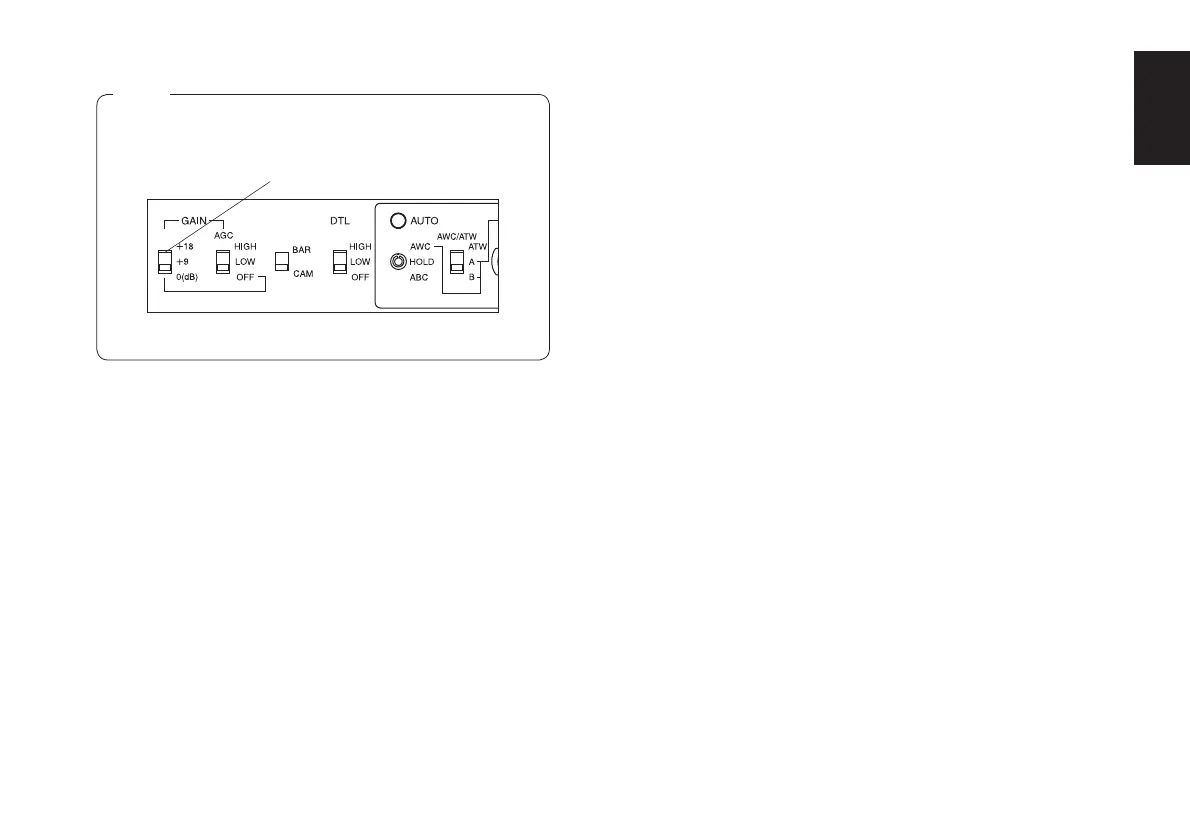

Remote control unit
Gain increase selector switch
