15
BL-C230A
4.1.11. Lens Control Circuit
Press the lens button (SW101) to hide the lens from view and protect your privacy.
CPU detects the status of the SW101.
4.1.12. Power Supply Block and Camera Detection Circuit
Power Supply Block provides the power that each block consumes.

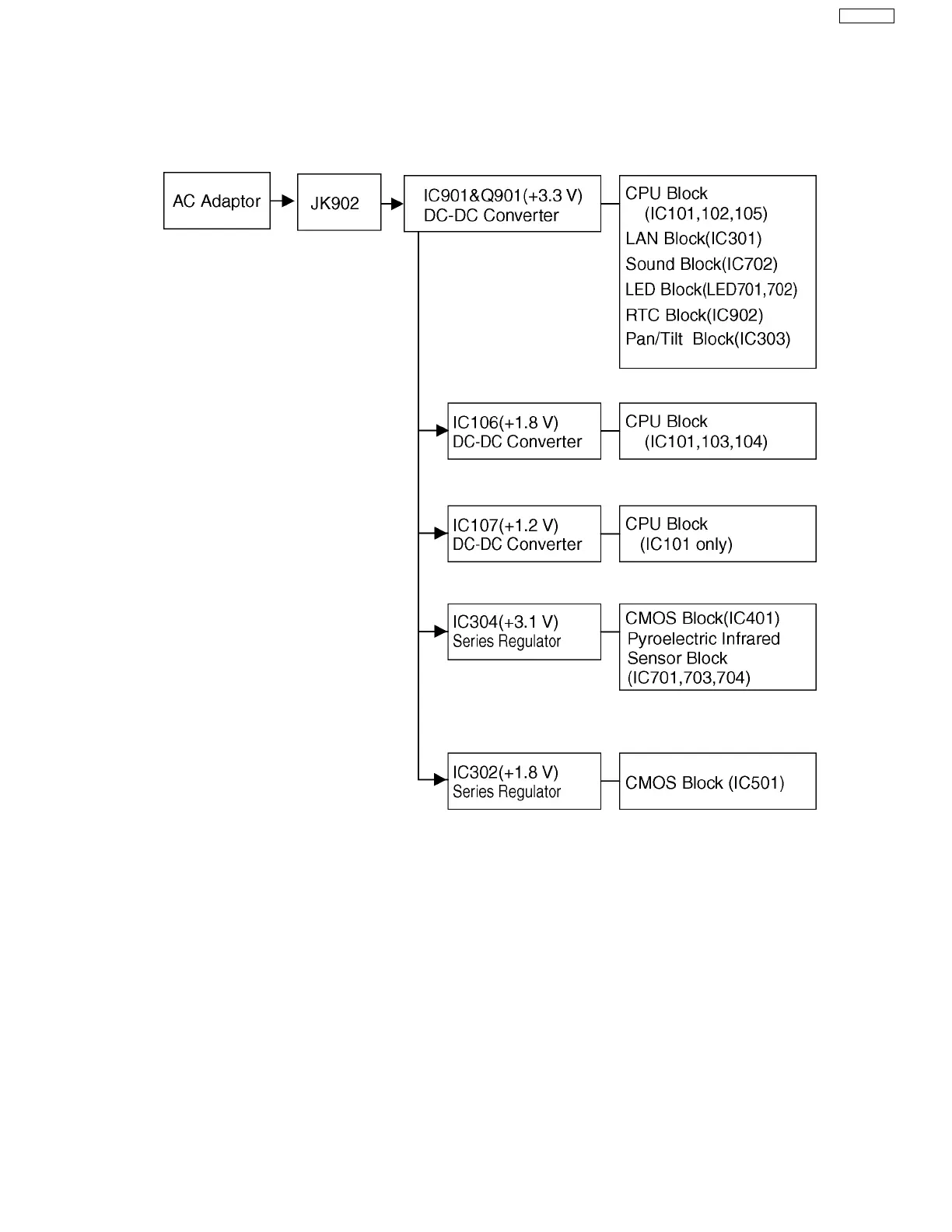

Input is DC9 V/750 mA from AC adaptor. The circuit diagram and output voltage are shown as below.
To Next Page
