Panasonic BL-C230A

71
BL-C230A

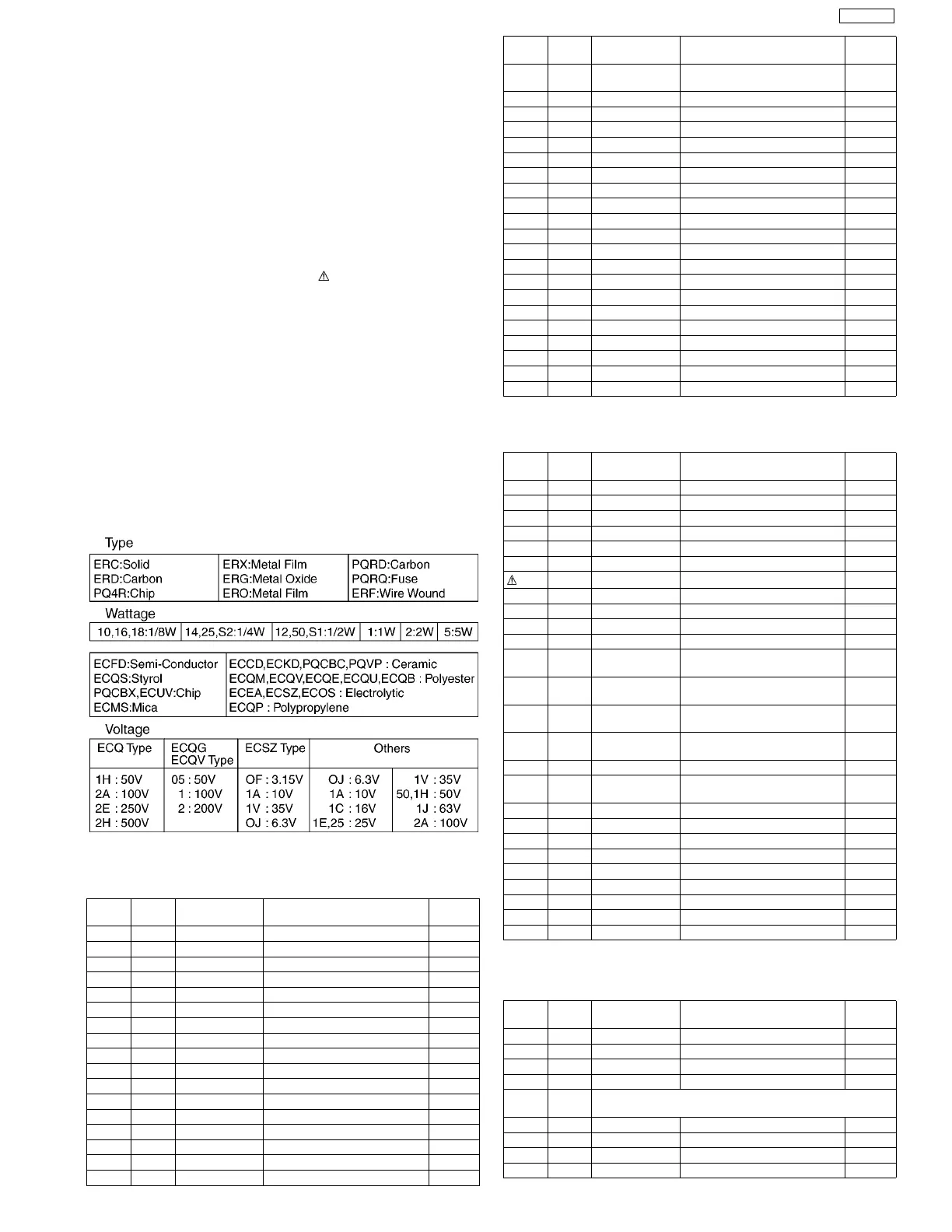

16.3. Replacement Parts List
Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production,
the item will continue to be available for a specific period
of time. The retention period of availability depends on
the type of assembly and the laws governing parts and
product retention. At the end of this period, the assembly
will no longer be available.
2. Important safety notice
Components identified by the mark indicates special
characteristics important for safety. When replacing any
of these components, only use specified manufacture's
parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF), p=µ(µF)
*Type & Wattage of Resistor
16.3.1. Cabinet and Electrical Parts
16.3.2. Accessories and Packing Materials
16.3.3. Main Board Parts
Safety Ref.
No.
Part No. Part Name & Description Remarks
1 PNKV1050W DOME PC-HB
2 PNKM1095Y1 FRONT CABINET ABS-HB
3 PNMH1056Z CONNECT PLATE
4 PNUS1095Z MOTOR SPRING
5 PNMG1002Z MIC RUBBER
6 PNKV1051Z1 EYE CENTER COVER ABS-HB
7 PNKE1034Z1 EYE LEFT COVER ABS-HB
8 PNHR1151Z PAN CAP POM-HB
9 PNHR1152Z PAN GEAR POM-HB
10 PNKE1033Z1 EYE RIGHT COVER ABS-HB
11 PNKV1053Z1 LENS COVER ABS-HB
12 PNHR1153Z TILT GEAR POM-HB
13 PNHR1150Z EYE LOCK ABS-HB
14 PNWQCM210 PAN MOTOR
15 PNWQC210A TILT MOTOR
16 PNHX1201Z PROTECTION SHEET
17 PNLB1691Z TILT FPC
18 PNUA1018Z CHASSIS ABS-HB-
GF20
19 PNWHC230A SPEAKER HOLDER ASSY
20 PNJE1042Z FLAT CABLE
21 PNMH1082Z EARTH PLATE
22 PNBC1306Z1 SLIDE BUTTON ABS-HB
23 PNJE1041Z FLAT CABLE
24 PNBC1310Z1 LENS BUTTOM ABS-HB
25 PNBC1309Z1 LENS BUTTON TOP
26 PNQT1705Z INDICATION PLATE-LABEL
27 PNHA1008Z RUBBER PARTS
28 PNHX1186Z LIGHT SHIELDING SHEET
29 PNKV1075Z1 ANTENNA COVER ABS-HB
30 PNKF1088Z1 REAR CABINET ABS-HB
31 PNGT2582Z NAME PLATE
32 PNQT1706Z INDICATION PLATE-LABEL
33 PNKV1071Z1 L A N C O V E R A B S - H B
A XTW2+4LFJ45 SCREW
B XTB2+6GFJ SCREW
C XQN16+CJ6FJ SCREW
D XTW2+R8PFJ SCREW
E XWA2BFJ WASHER
Safety Ref.
No.
Part No. Part Name & Description Remarks
A1 XWG4F16VW WASHER
A2 XWG26D12VW WASHER
A3 XWG35FJ WASHER
A4 XTB4+20AFJ WOOD SCREW
A5 XTB26+10GFJ SMALL SCREW
A6 PQHE5004X WOOD SCREW
A7 PQLV206Y AC ADAPTOR
A8 PQME10080Z SAFETY WIRE
A9 PNQC1016P INSTRUCTION BOOK, CD-ROM
A10 PNQW1846Y LEAFLET
A11 PNQW1943Z LEAFLET
A12 PNQX1991X INSTRUCTION BOOK, IMPOR-
TANT INFORMATION
A13 PNQX1992Y INSTRUCTION BOOK, SETUP
GUIDE
A14 PNQX2272Z INSTRUCTION BOOK,
INSTALLATION GUIDE
A15 PNQX2377Y INSTRUCTION BOOK, SETUP
GUIDE (FOR VIERA)
A16 PNKL1008Z STAND (for Service)
A17 XTB4+20AFJ TAPPING SCREW (for Ser-
vice)
P1 PNPE1017Z BLISTER TOP
P2 PNPE1019Z BACK GROUND SHEET
P3 PNPE1018Z BLISTER BOTTOM
P4 PNPN1163Z CUSHION
P5 PNPD1350Z CUSHION
P6 XZB20X30A05 PROTECTION COVER
P7 PNPK2636Z GIFT BOX
P8 XZB05X08A03 PROTECTION COVER
P9 PNHT1001Z SECURITY TAG
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PNWP1C230A MAIN BOARD ASS’Y (RTL)
(ICS)
IC101 MN2PS00003RF IC
IC102 There is no parts supply of only IC102 please
order PCB1(PNWP1C230A).
IC103 C3ABSY000052 IC
IC104 C3ABSY000052 IC
IC105 C0EBE0000350 IC
IC106 C0DBAYY00341 IC
Safety Ref.
No.
Part No. Part Name & Description Remarks
