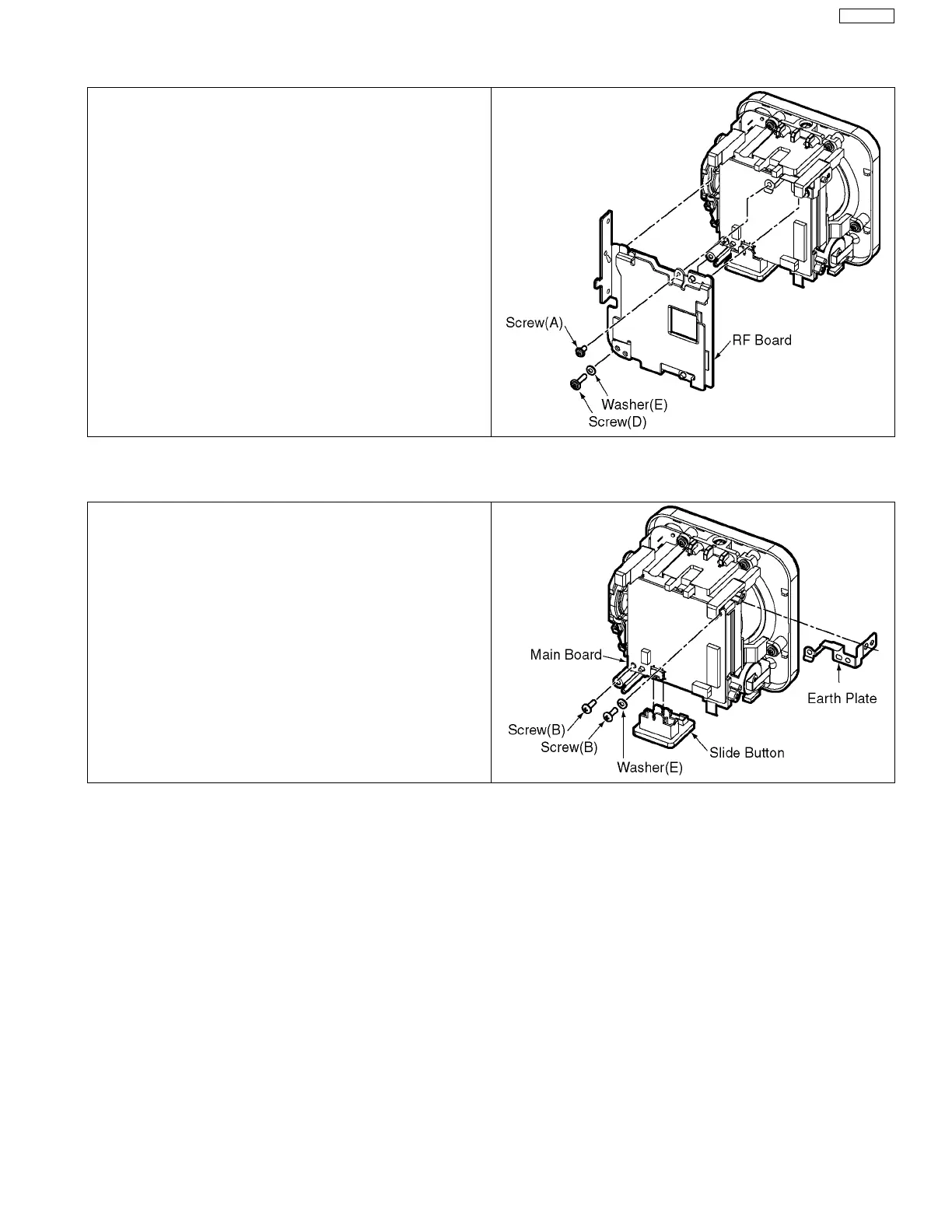

9.1.3. How To Remove RF Board [No.3] (Procedure No.1→2→3)
9.1.4. How To Remove Main Board [No.4] (Procedure No.1→2→3→4)
1. Remove two Screws (A, D) and a Washer (E).
2. Remove the RF Board.
1. Remove two Screws (B) and a Washer (E).
2. Remove an Earth Plate.
3. Remove the Slide Button from the Main Board.
4. Remove four Flat Cables and the Main Board.
