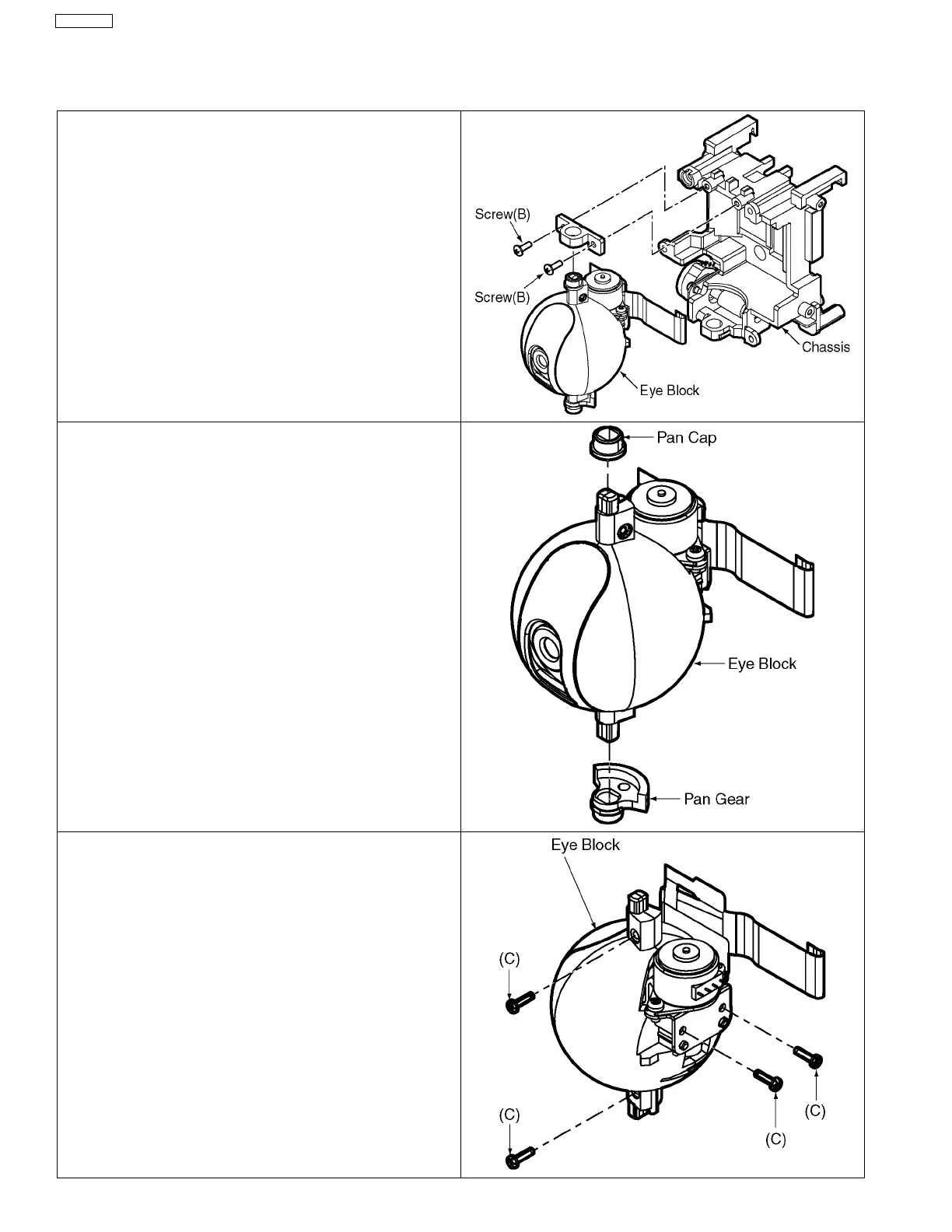

9.1.8. How To Remove Tilt Motor and Lens Board Unit [No.8]
(Procedure No.1→2→3→4→5→8)
1. Remove two Screws (B).
2. Remove the Eye Block from the Chassis
3. Remove the Pan Cap and the Pan Gear from the Eye Block.
4. Remove four Screws (C).
To Next Page
