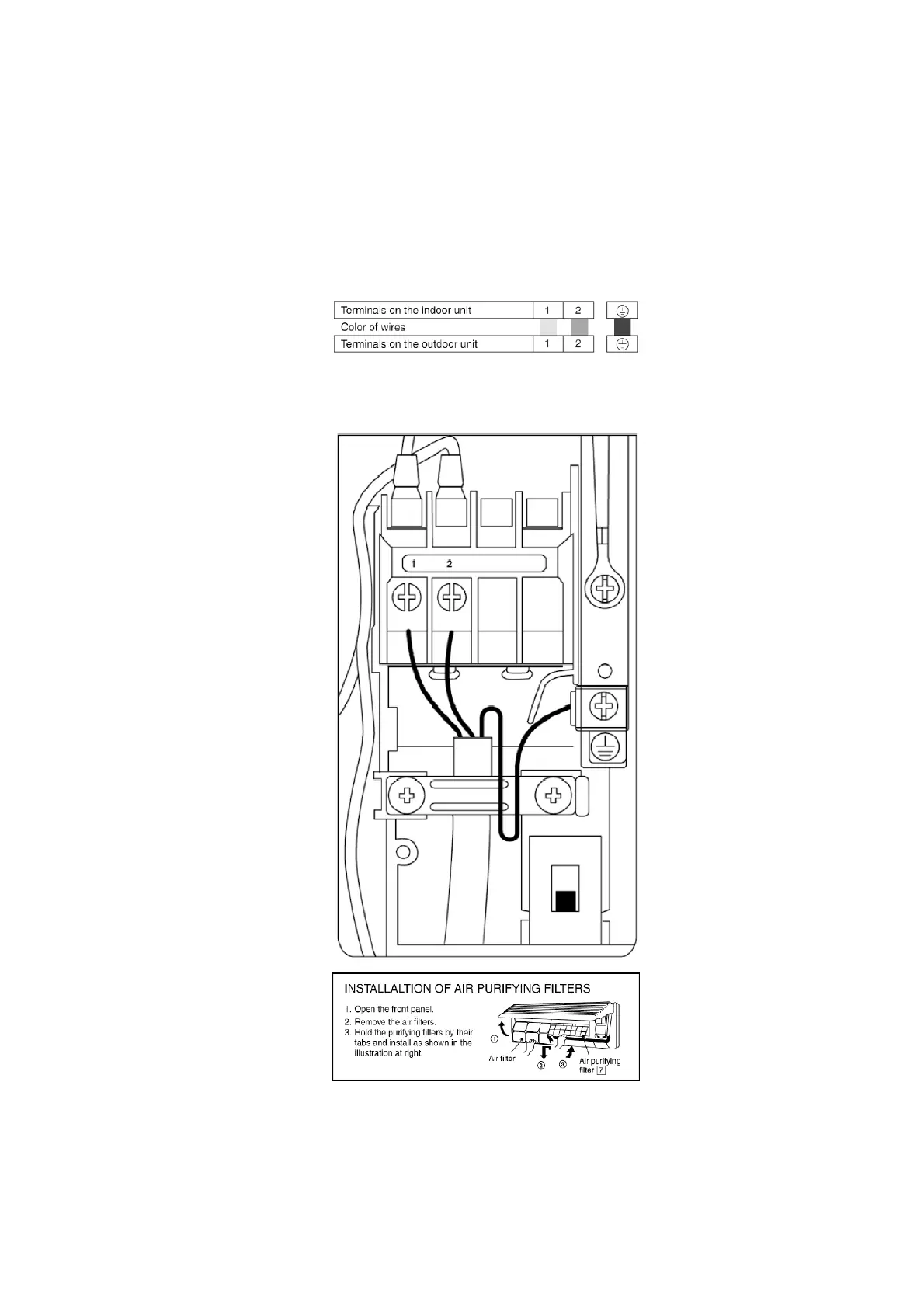

- Ensure the color of wires of outdoor unit and the terminal
Nos. are the same to the Indoor’s respectively.
- Earth lead wire shall be longer than the other lead wires as
shown in the figure for the electrical safety in case of the
slipping out of the cord from the anchorage. /
- Secure the cable onto the control board with the holder
(clamper).
52
