Panasonic CS-A73KR

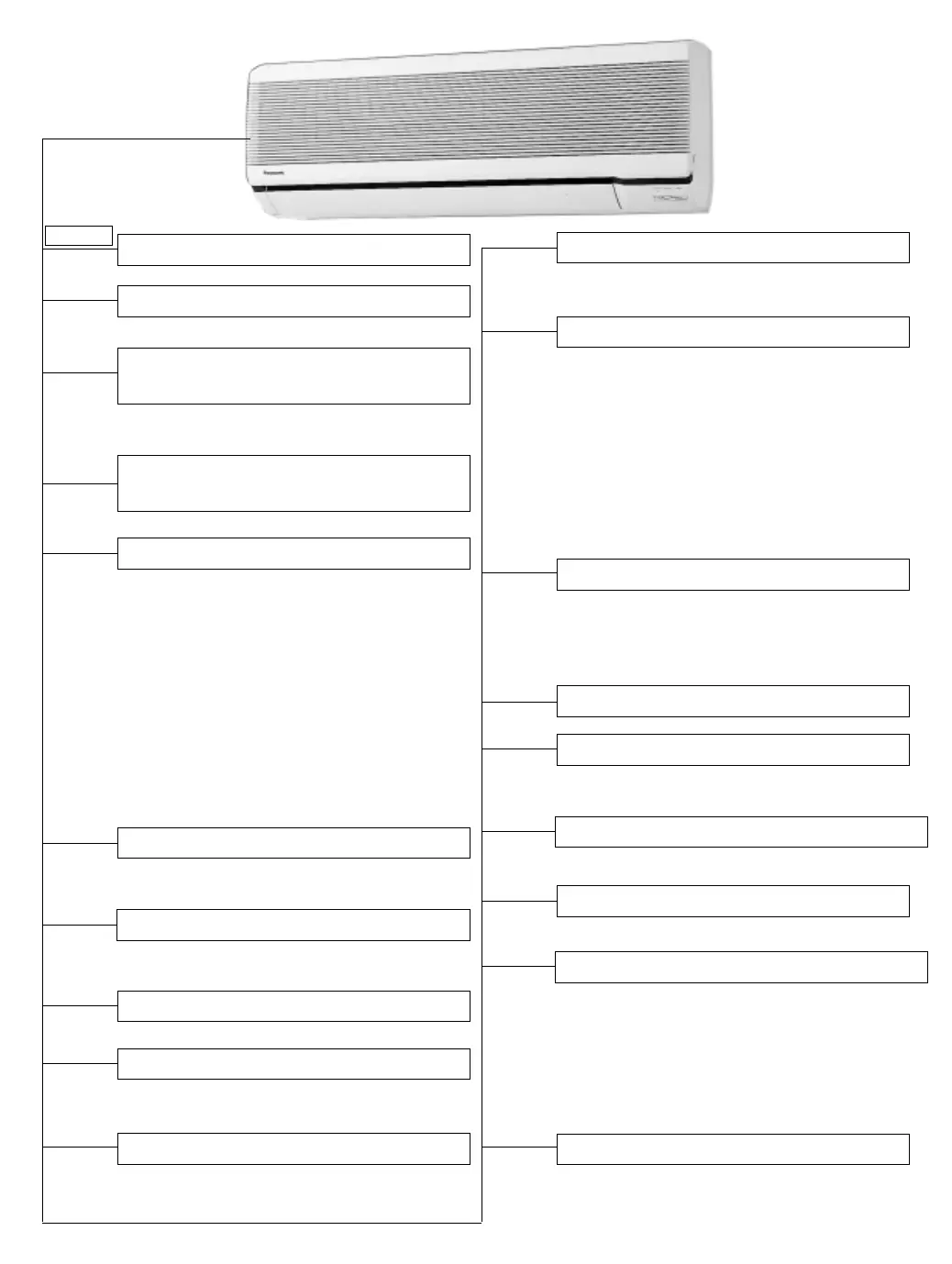

Indoor Unit
Power Switch OFF / ON
POWER I
Auto Operation Button
• Used when the remote control cannot be used.
Remote Control Signal Receiving
Sound
•It can be controlled by pressing Auto
Operation Button for 10 seconds.
AUTO
OFF / ON
Operation Test Running / Pump
Down Switch
TEST RUN
OFF / ON
Operation Indication Lamps (LED)
•POWER (Red)...... Lights up in operation,
blinks in Automatic
Operation Mode judging
•SLEEP (Orange)..... Lights up in Sleep
Mode Operation
•TIMER (Orange)..... Lights up in Timer
Setting
•POWERFUL (Orange).... Lights up in Powerful
Mode Operation
•ECONOMY (Green)..... Lights up in Economy
Mode Operation
Sleep Mode Auto Control
•Indoor Fan operates at low speed.
•Operation stops after 8 hours.
•Used when test running or servicing.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Heating:Fan speed varies from Me →
SLo in accordance with indoor
heat exchanger.
–Cooling:Fan rotates at Hi and Me
speed. Deodorizing control is
available.
–Soft Dry:Fan rotates at SLo speed.
Deodorizing control is available.
Airflow Direction Control
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•Manually adjusted by hand for horizontal
airflow.
Operation Mode
•Heating, Cooling, Soft Dry and
Automatic Mode.
Time Delay Safety Control
•Restarting is inhibited for approximately
3 minutes (Cooling) or 4 minutes (Heating).
7 Minutes Time Save Control
•Cooling Operation only.
Starting Current Control
Powerful Operation
•Reaches the desired room temperature
quickly.
Economy Operation
•To reduce electrical power consumption.
Hot-Start Control
•The indoor fan remain stop until the
indoor heat exchanger temperature
reaches 30°C.
•The indoor fan will operate at SLo and
Lo
–
when indoor heat exchanger tem-
perature reaches 30°C - 39°C
Random Auto Restart Control
•Operation is restarted randomly after
power failure at previous setting mode.
Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
30 Minutes Time Save Control
•Heating Operation only.
Anti Cold Draft Control
•The indoor fan operates at SSLo when the
indoor heat exchanger temperature is low.
