103

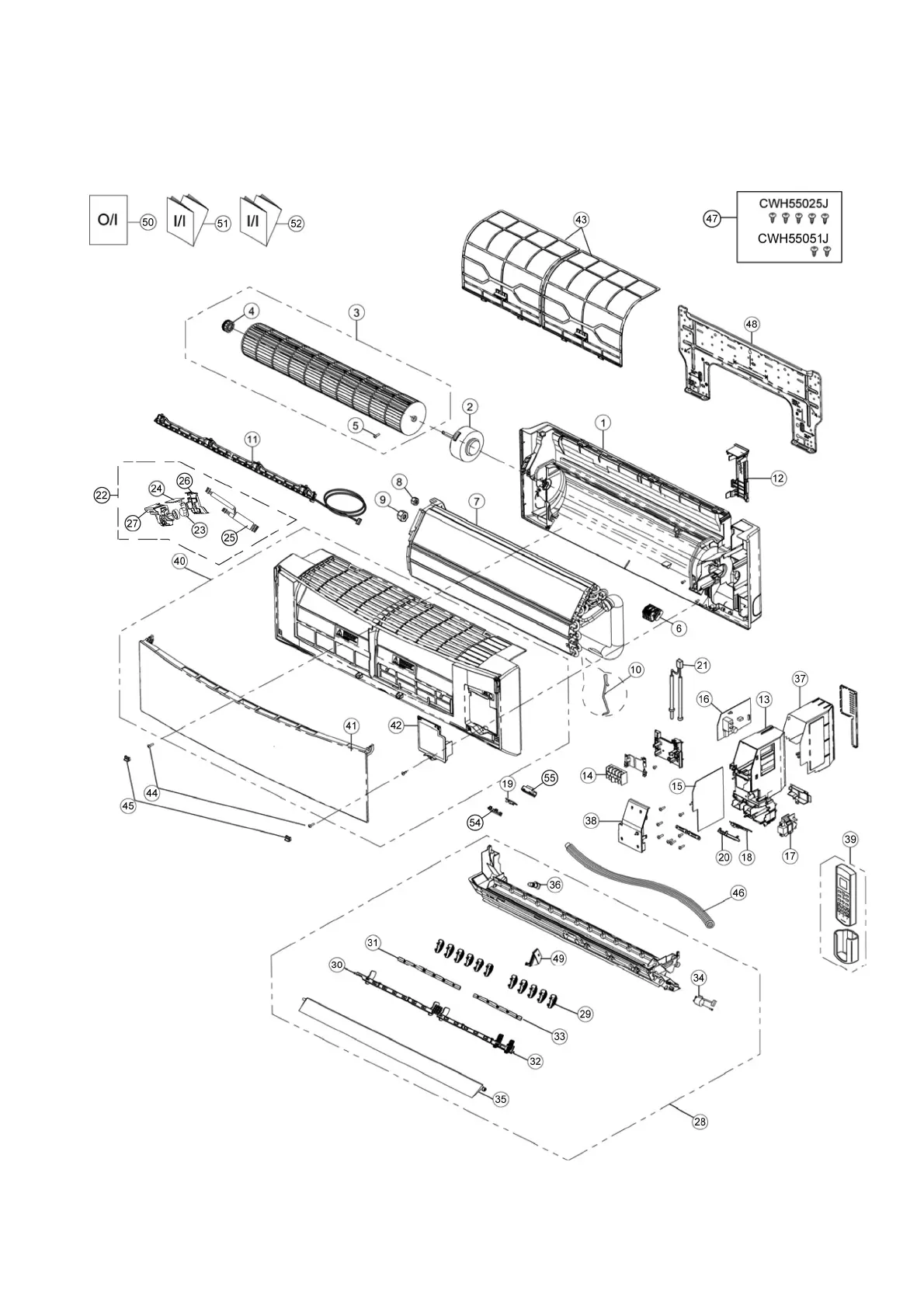

20. Exploded View and Replacement Parts List
20.1 Indoor Unit
20.1.1 CS-C12KKF-2
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
