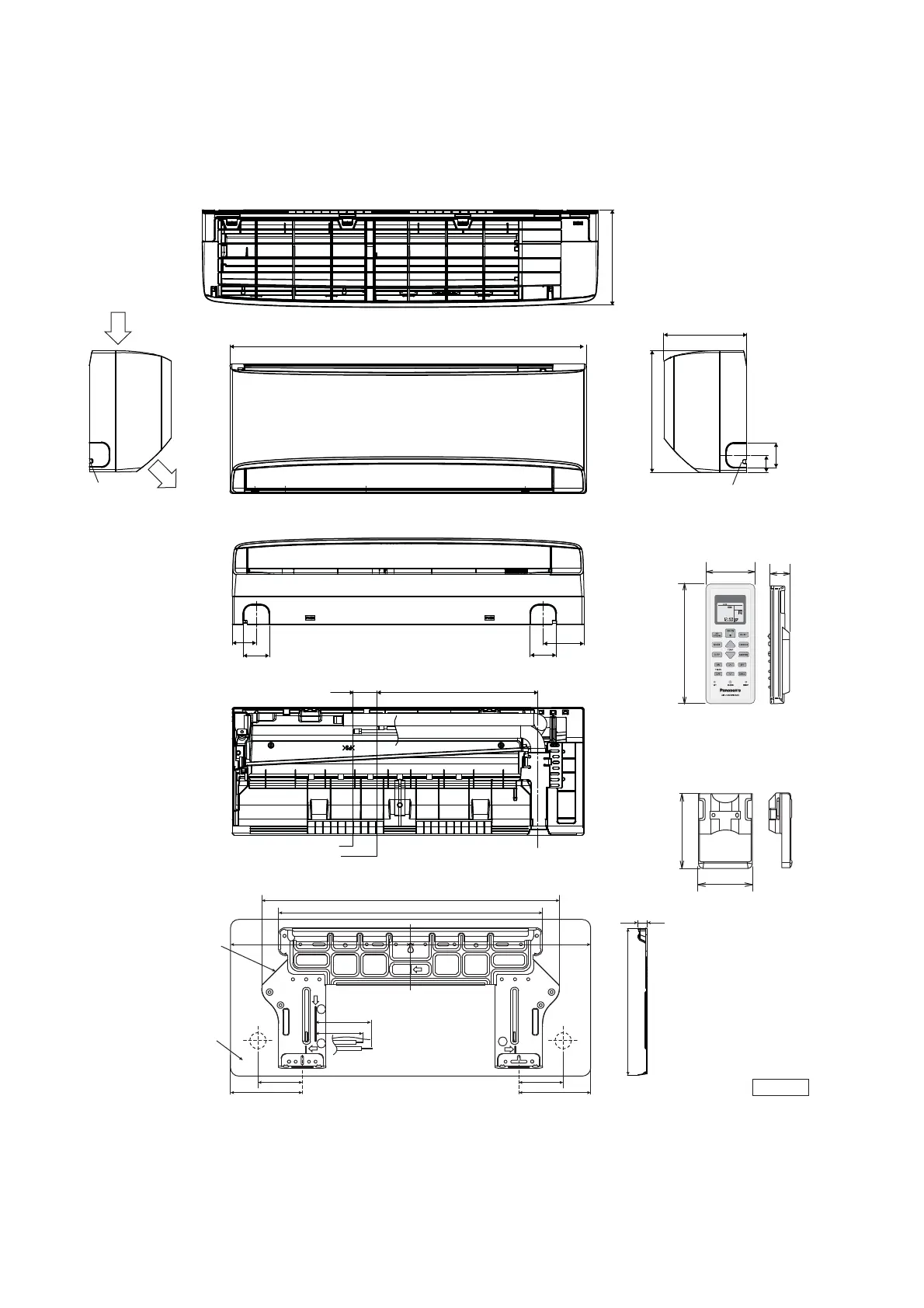

5. Dimensions
5.1 Indoor Unit
5.1.1 CS-PC12TKF
290
197
B
A
C
PIPE
HOLE
CENTER
PIPE
HOLE
CENTER
128mm TO
PIPE HOLE
CENTER
128mm TO
PIPE HOLE
CENTER
799
(197)
<Top View>
<Front View>
<Bottom View>
<Side View>
Air intake
direction
Air outlet
direction
Left piping
hole
<Side View>
Right piping
hole
560.6
420
16.4
(264.6)
380
496.6
128
184
15
35
128
222
Left
piping
hole
Installation
plate
Relative position between the indoor and the installation plate <Front View>
Indoor unit
external
dimensions
line
Right
piping
hole
Unit : mm
92.8
60
60
55
41-61 410
Gas side
Liquid side
<Rear View>
60
41
64
87
<Remote Control Holder>
<Remote Control>
59
144.5
22

Panasonic CS-PC12TKF Specifications

General

Brand	Panasonic
Model	CS-PC12TKF
Category	Air Conditioner
Language	English
