WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
16.2 CS-PC18TKF CS-PC24TKF
16.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

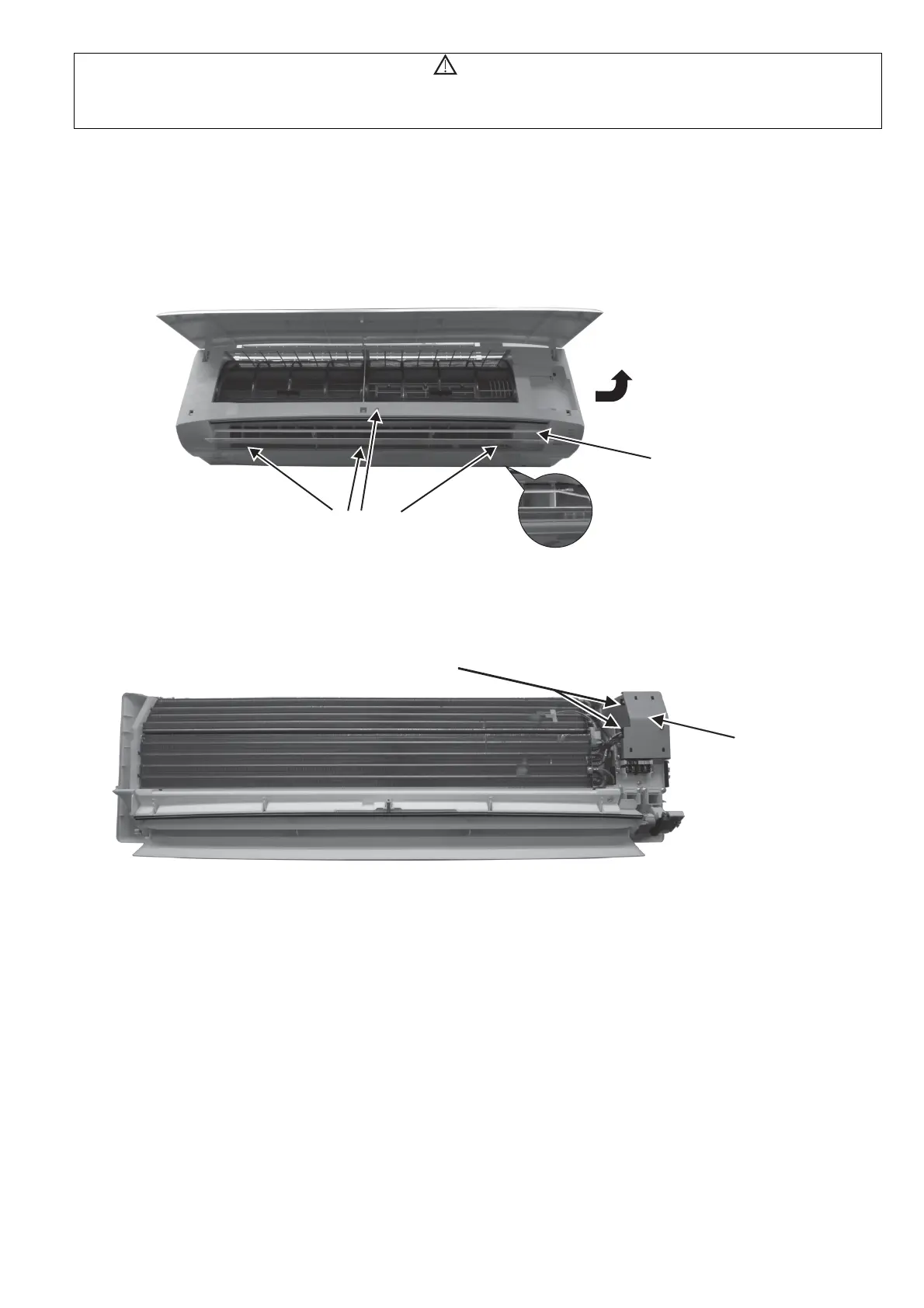

16.2.1.1 To Remove Front Grille
3 Hold both sides of the front grille and
remove it by pulling up and toward
yourself gently.
1 Lift to open the horizontal vane
gently.
2 Remove 3 caps and 4 screws at the
bottom of discharge vane and 1 screw
at the front grille.
Figure 1
16.2.1.2 To Remove Horizontal Vane
4 Removing the control
board cover by
releasing the 2 hook.
2 hooks (left hand side)
Figure 2
