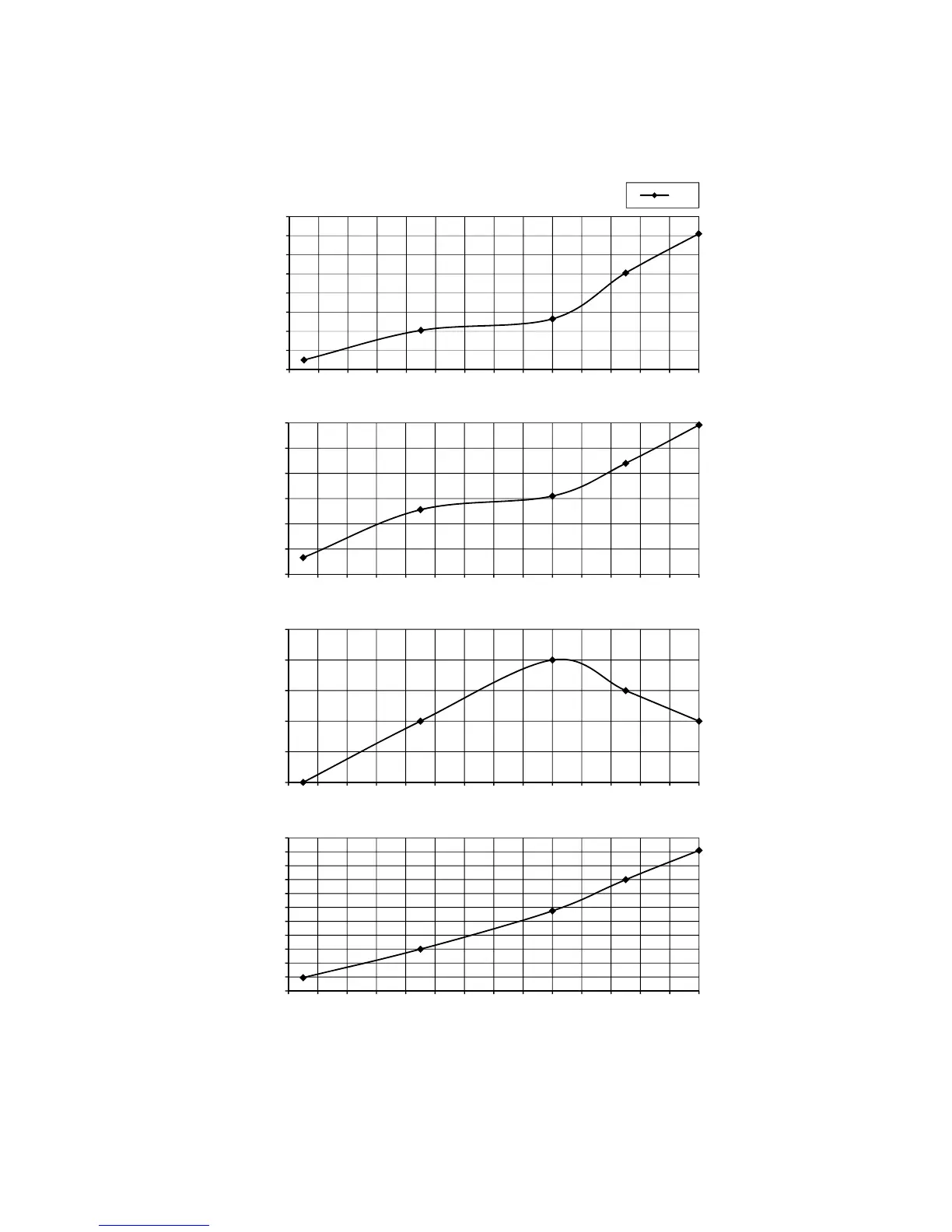

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
A) Indoor unit capacity: Heating (2.0), CS-E7QKEW
7°C & 12°C (Outdoor Air Temp.) = Heating Overload Protection activated
28.000
30.000
32.000
34.000
36.000
38.000
40.000
42.000
44.000
-16-14-12-10-8-6-4-2024681012
Outlet Air
(°C)
Outdoor Air Temperature (°C)
230
1.000
1.500
2.000
2.500
3.000
3.500
4.000
-16-14-12-10-8-6-4-2024681012
Heating
Capacity (kW)
Outdoor Air Temperature (°C)
3.400
3.500
3.600
3.700
3.800
3.900
-16-14-12-10-8-6-4-2024681012
Current
(A)
Outdoor Air Temperature (°C)
1.000
1.200
1.400
1.600
1.800
2.000
2.200
2.400
2.600
2.800
3.000
3.200
-16-14-12-10-8-6-4-2024681012
Gas Side Piping
Pressure (MPa)
Outdoor Air Temperature (°C)
